Rear Wiper Motor
REAR WIPER MOTORREMOVAL

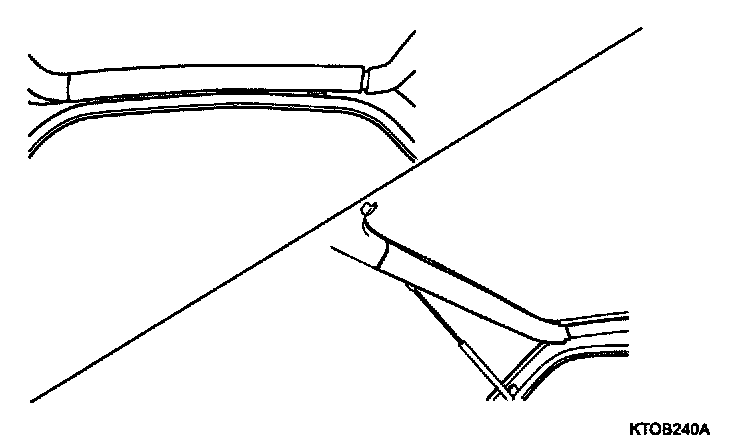

1. Remove the upper and side trim from the tailgate frame.

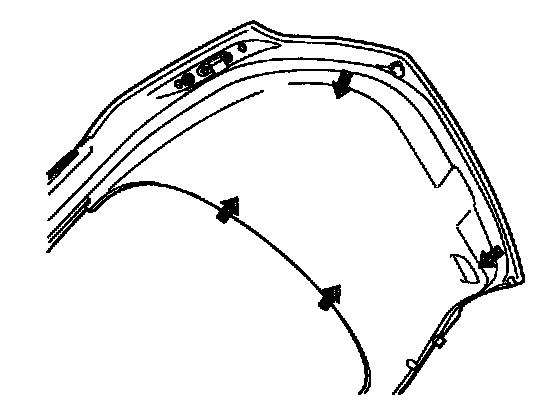

2. Remove the tailgate trim panel after removing 4 screws.

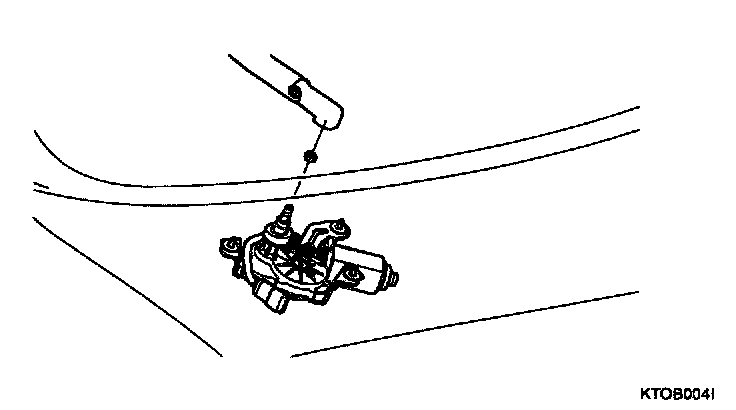

3. Remove the rear wiper arm after removing a nut.
Tightening torque : 14 - 17 N.m (140 - 170 kg.cm, 10.3 - 12.5 lb.ft)

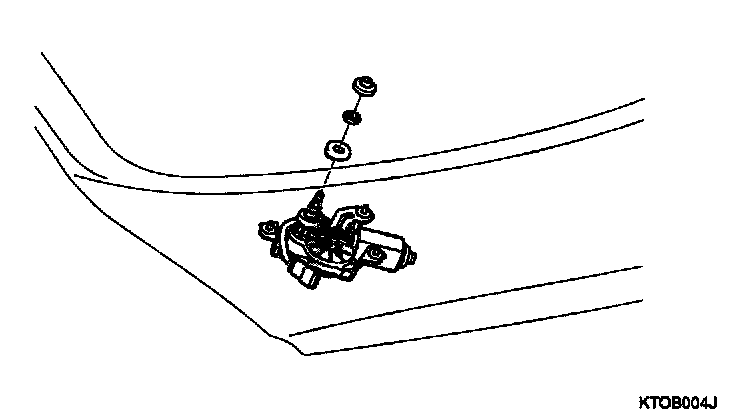

4. Remove the hexagonal nut after removing pivot cover.
Tightening toque : 14 - 17 N.m (140 - 170 kg.cm, 10.3 - 12.5 lb.ft)

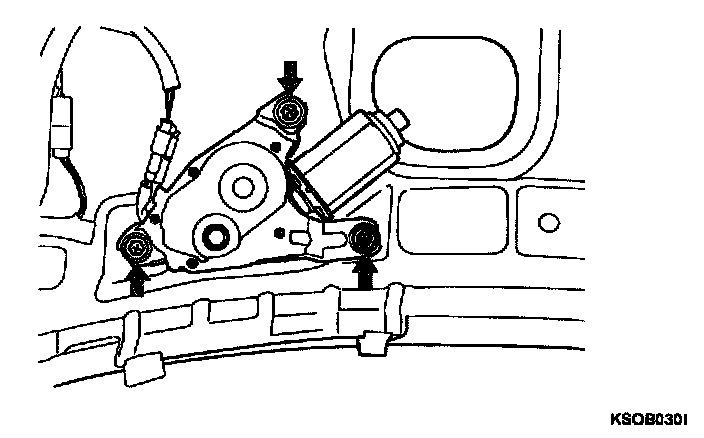

5. Remove the rear wiper motor after removing 3 bolts, and disconnect the motor's connector.
INSTALLATION
1. Installation is the reverse of removal.

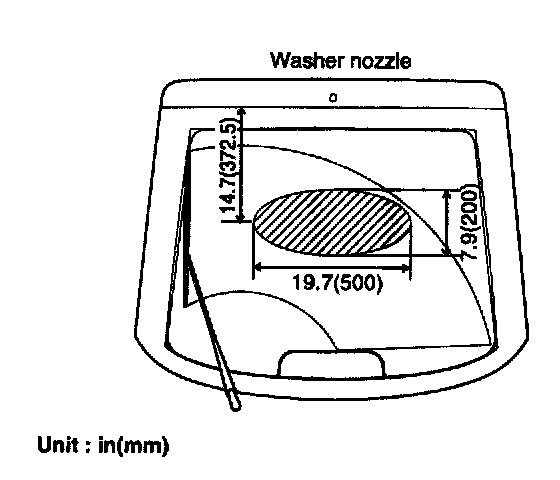

2. Set the washer nozzle on the specified spray position.
