Front Wiper Motor
FRONT WIPER MOTORREMOVAL

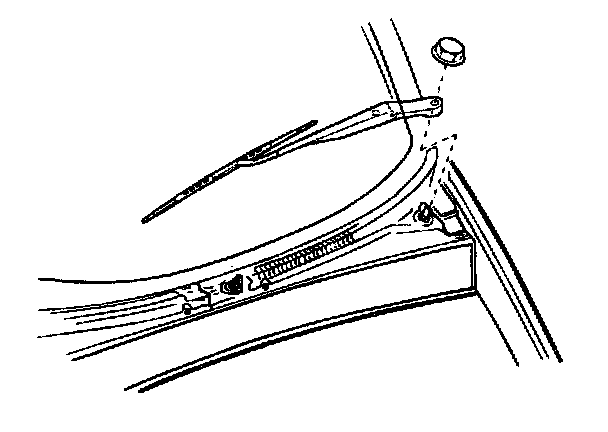

1. Remove the wiper arm.
NOTE: Care must be taken not to scratch the engine hood.
Tightening torque : 23 - 28 N.m (230-280 kg.cm, 16.9 - 20.6 lb.ft)

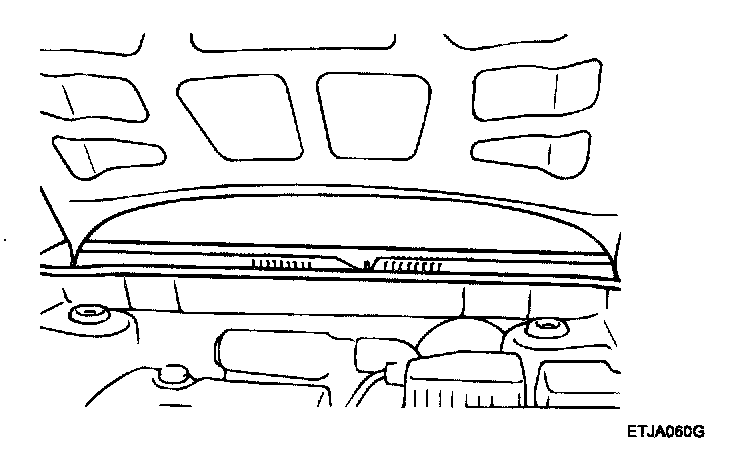

2. Remove the weatherstrip and cowl top cover after removing the retainers.

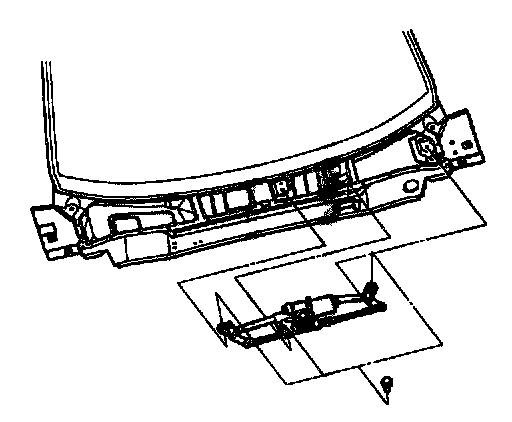

3. Disconnect the windshield wiper motor connector and remove the 3 bolts holding the windshield wiper motor and linkage assembly.
Tightening torque : 7 - 11 N.m (70 - 110 kg.cm, 5.1 - 8.0 lb.ft)
4. Installation is the reverse of removal.
INSTALLATION

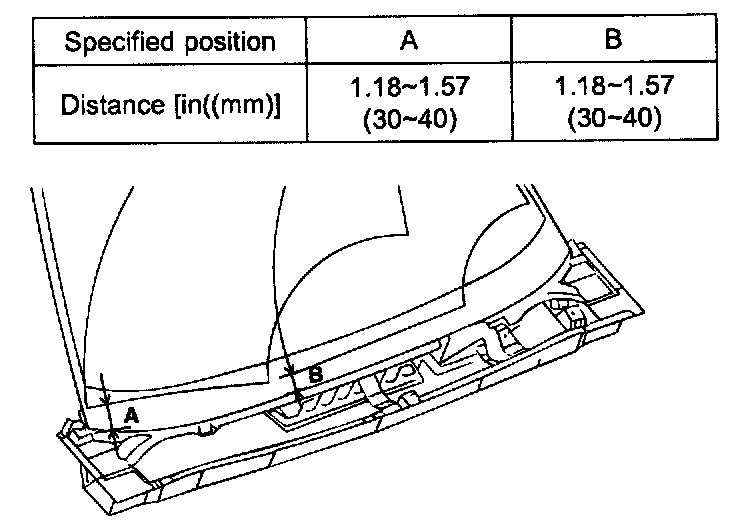

1. Install the wiper arm to the specified position.

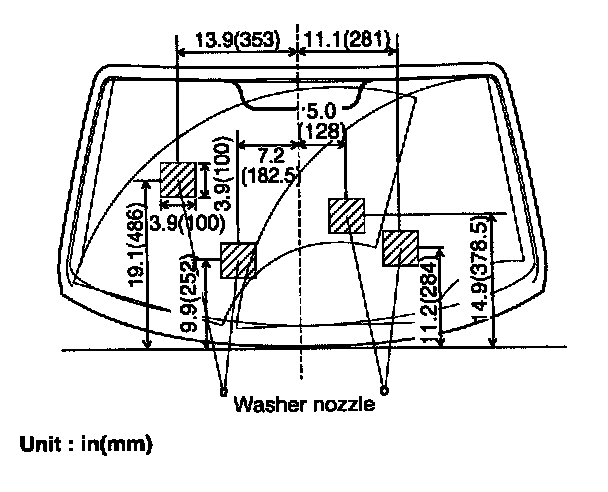

2. Set the washer nozzle on the specified spray position.
