Installation

INSTALLATION

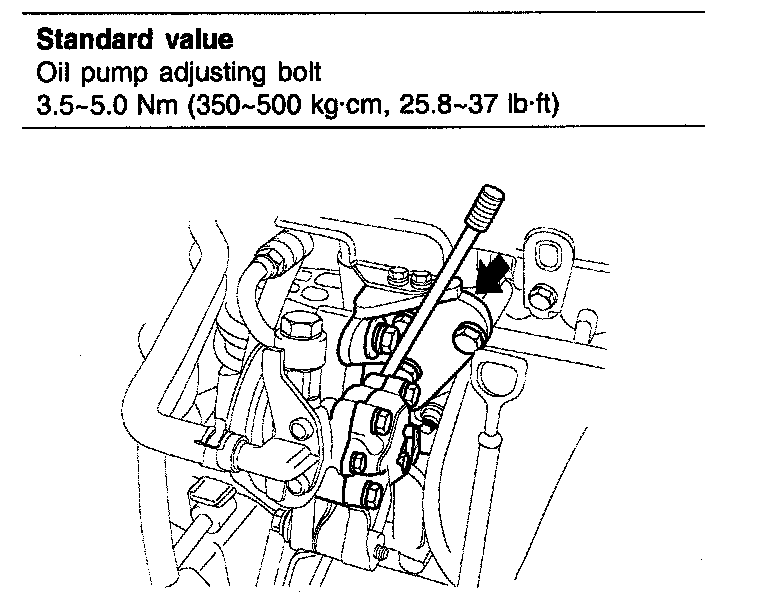

1. After installing the oil pump to the oil pump bracket, install the "V" belt and tighten the bolt adjusting tension to the specified torque.
2. Install the suction hose.

CAUTION: Install the pressure hose to the oil pump, facing the painted part on the hose toward the oft pump.

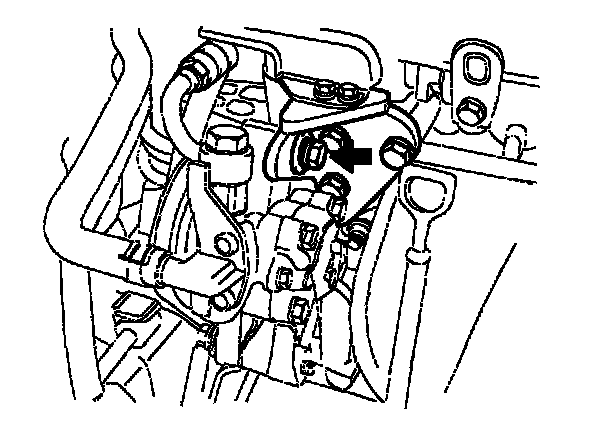

3. Install the pressure hose to the oil pump.

NOTE: Install the pressure hose being careful so that it does not twist and come in contact with other components.

4. Add power steering fluid (PSF-3).
5. Air bleed the system.
6. Check the oil pump pressure.
