Headlamp Dimmer Switch: Testing and Inspection

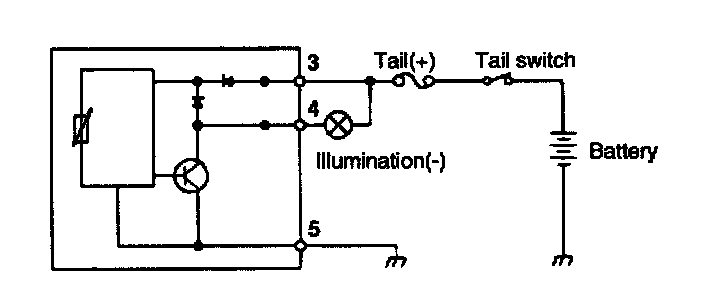

RHEOSTATINSPECTION
1. Disconnect the negative (-) battery terminal.

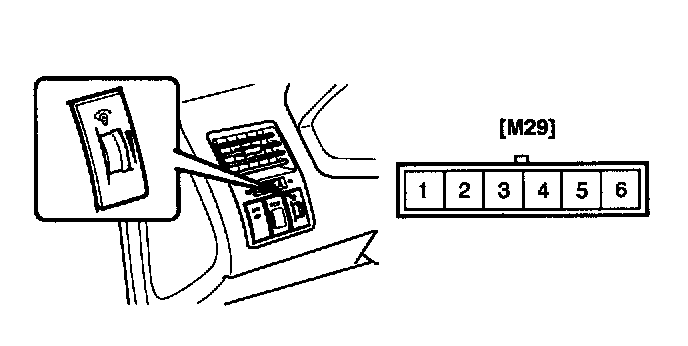

2. Disconnect the rheostat connector from the crash pad panel.
3. Check for intensity. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is it can be assumed that the rheostat is normal.
