Lateral Accelerometer: Description and Operation

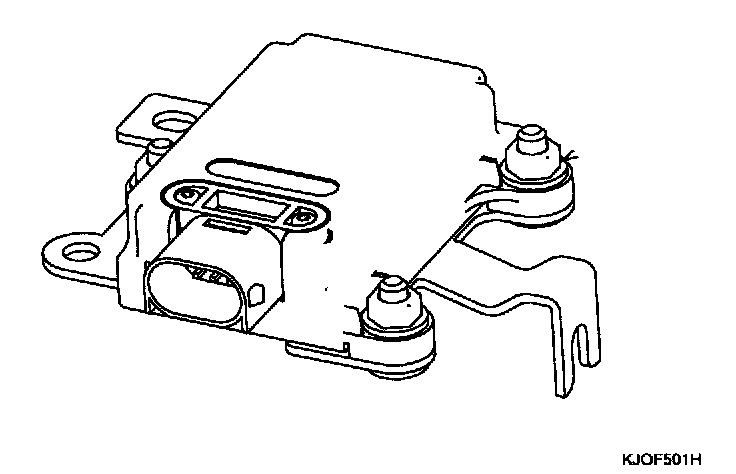

YAW-RATE SENSOR AND LATERAL G-SENSORDESCRIPTION
1. The yaw-rate & lateral G sensor is applied for the ESC system.
2. The yaw-rate is the angular velocity, when a vehicle turns a corner, and the lateral G is the acceleration 1 move a vehicle out of the way when cornering.

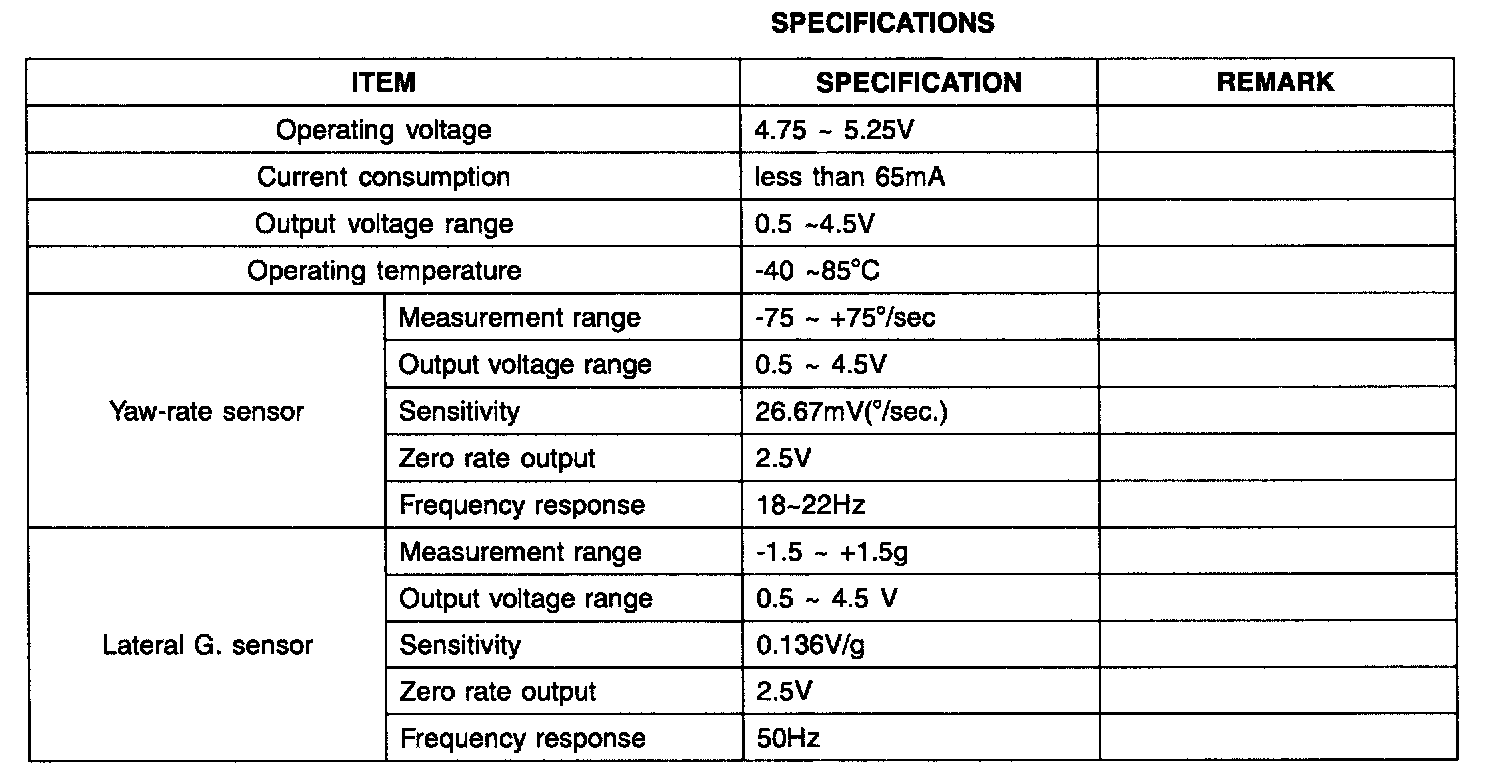

SPECIFICATIONS:

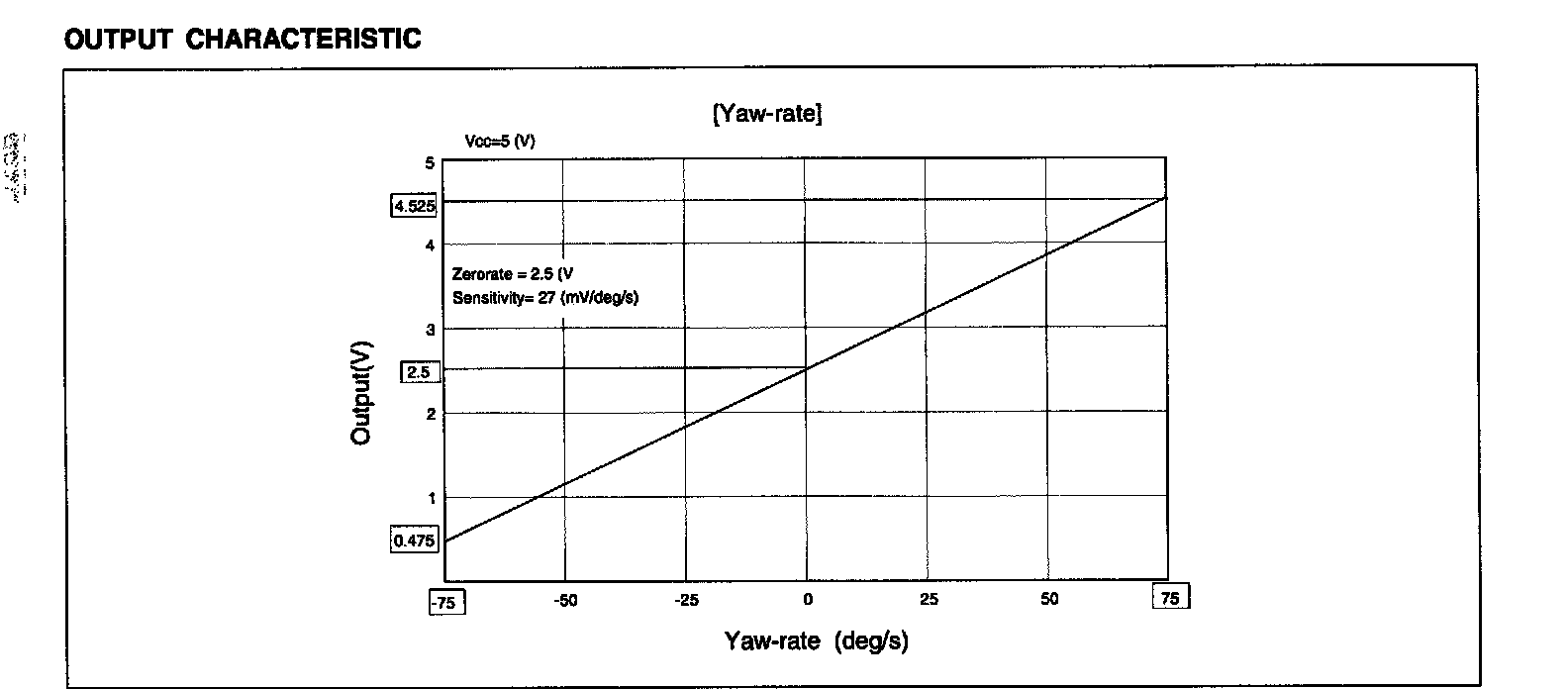

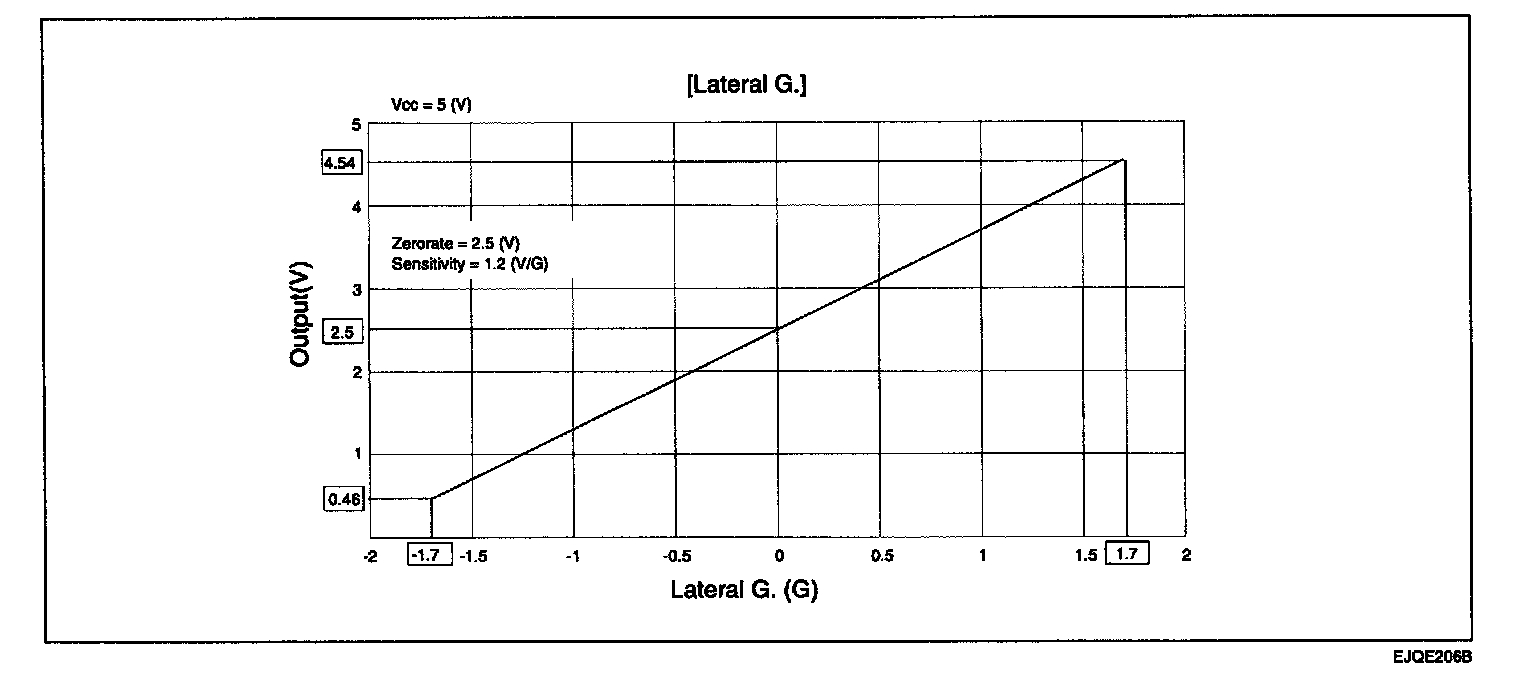

OUTPUT CHARACTERISTIC:

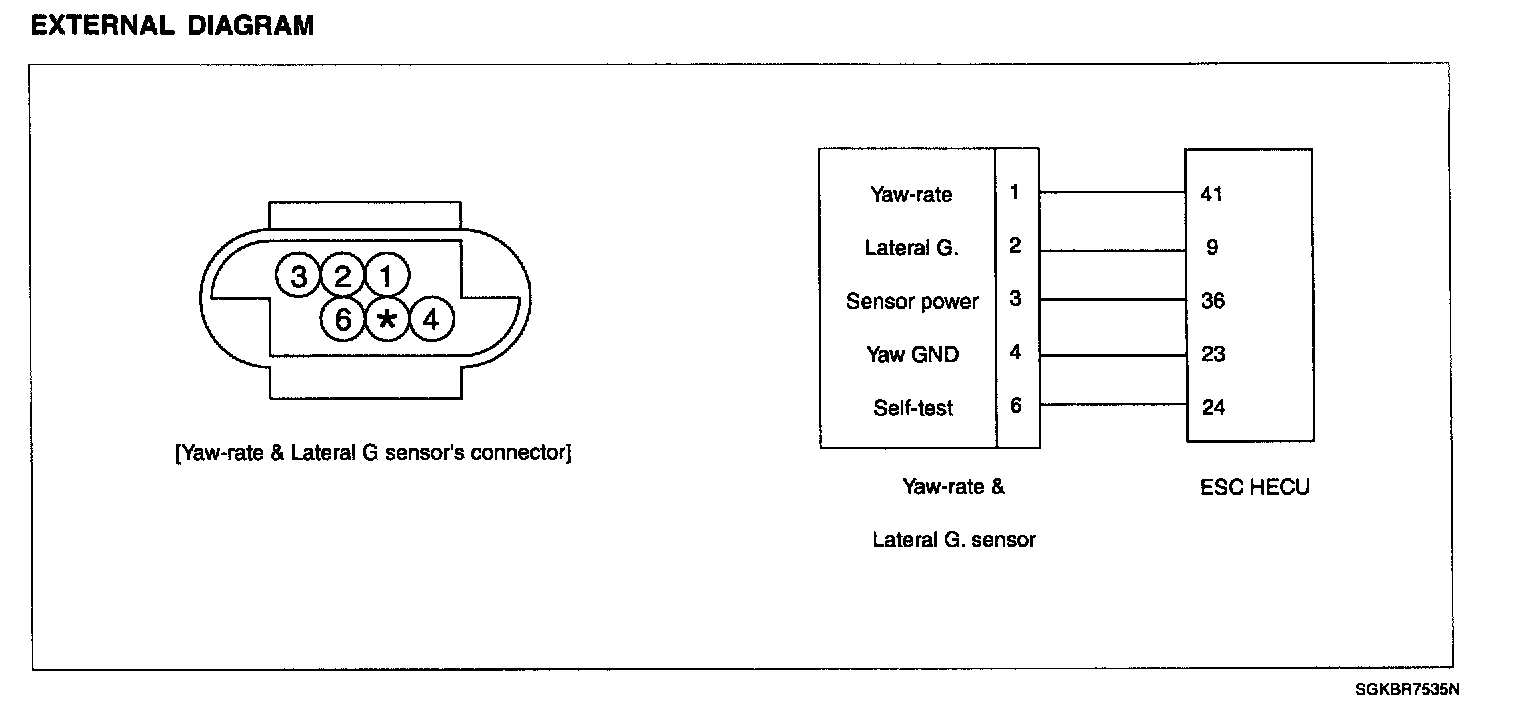

EXTERNAL DIAGRAM:
