Home >> Hyundai >> 2007 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Tools and Equipment

Air Bag Systems: Tools and Equipment

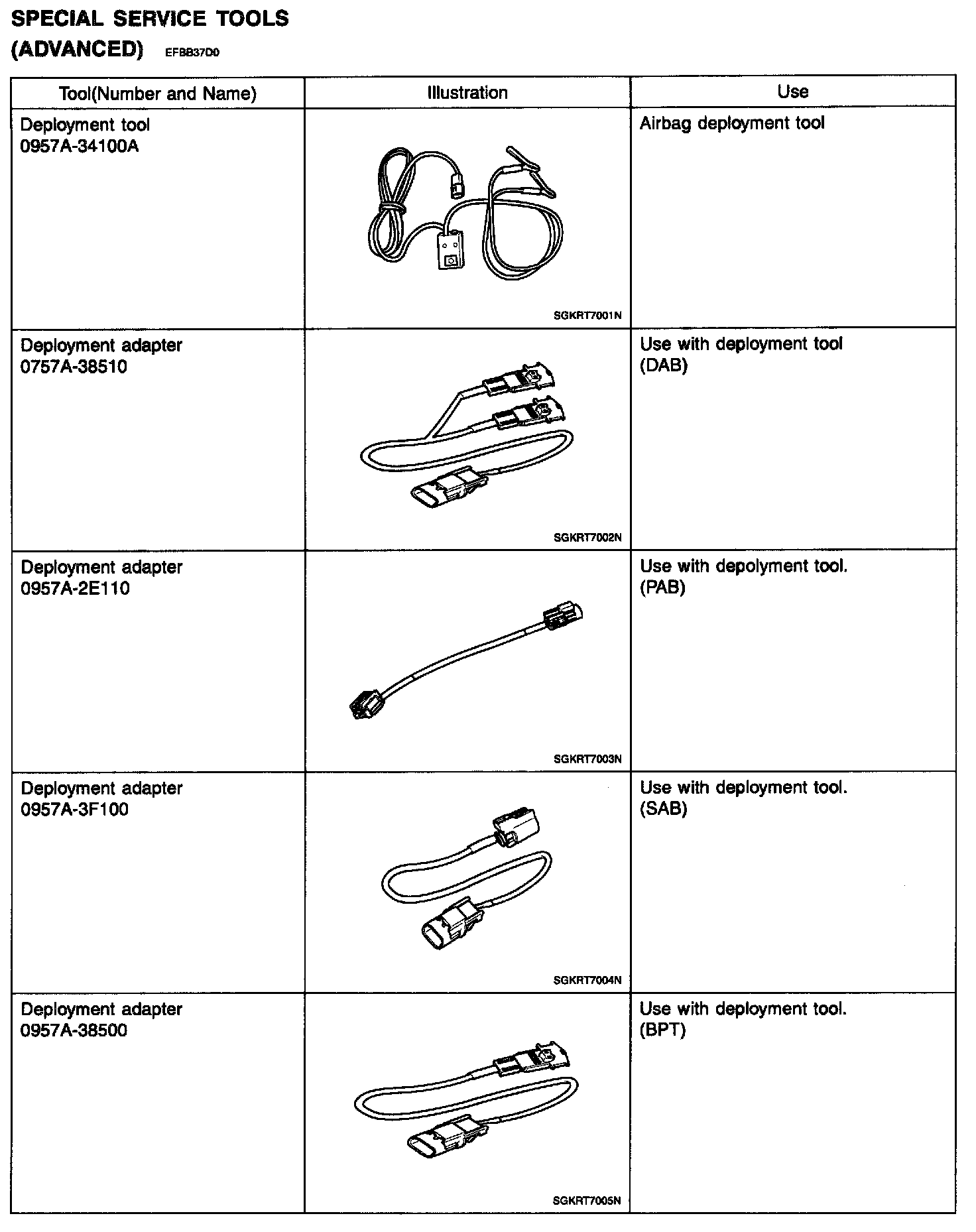

Special Service Tools (Advanced) - Part 1:



Special Service Tools (Advanced) - Part 2:

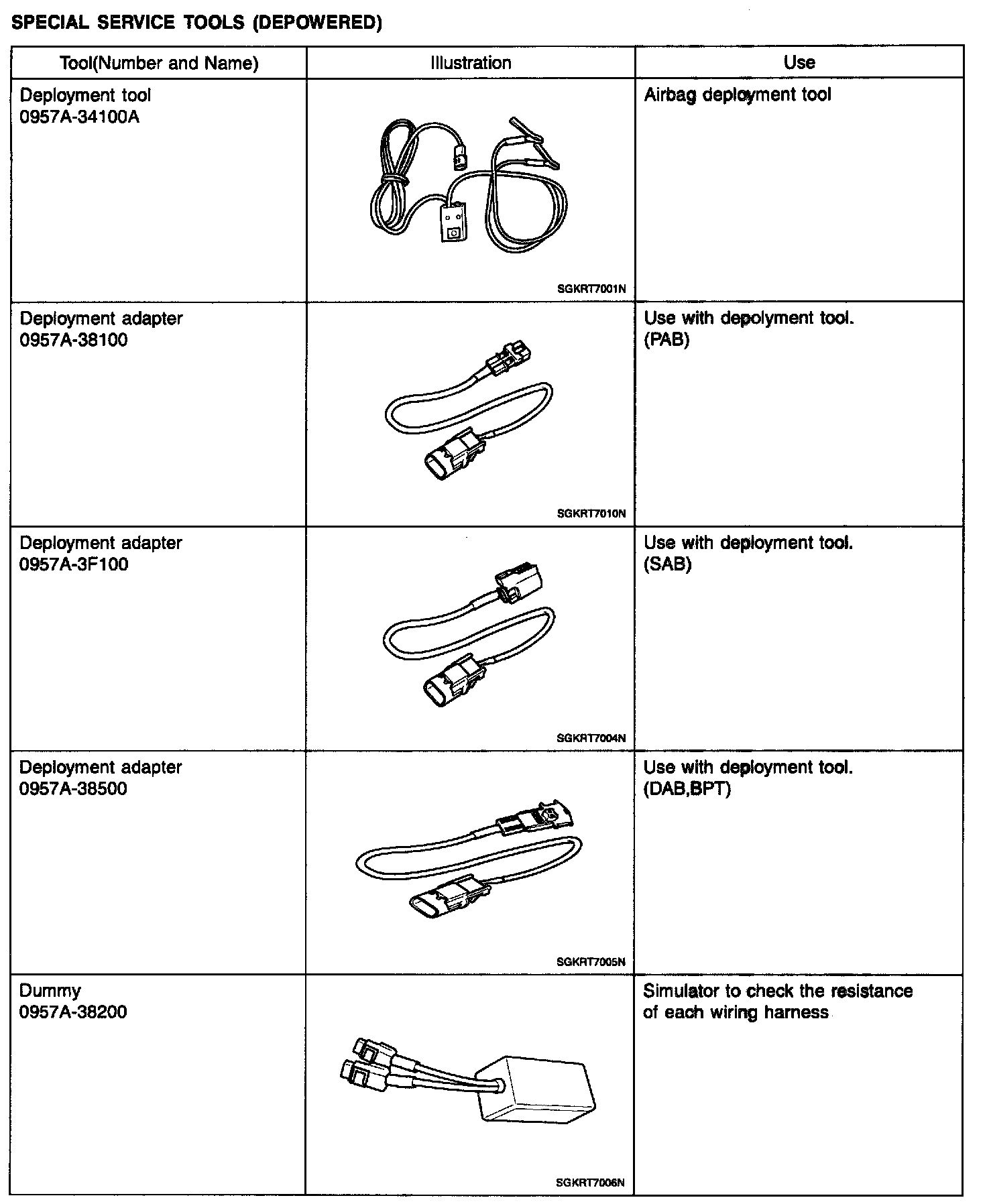

Special Service Tools (Depowered) - Part 1:

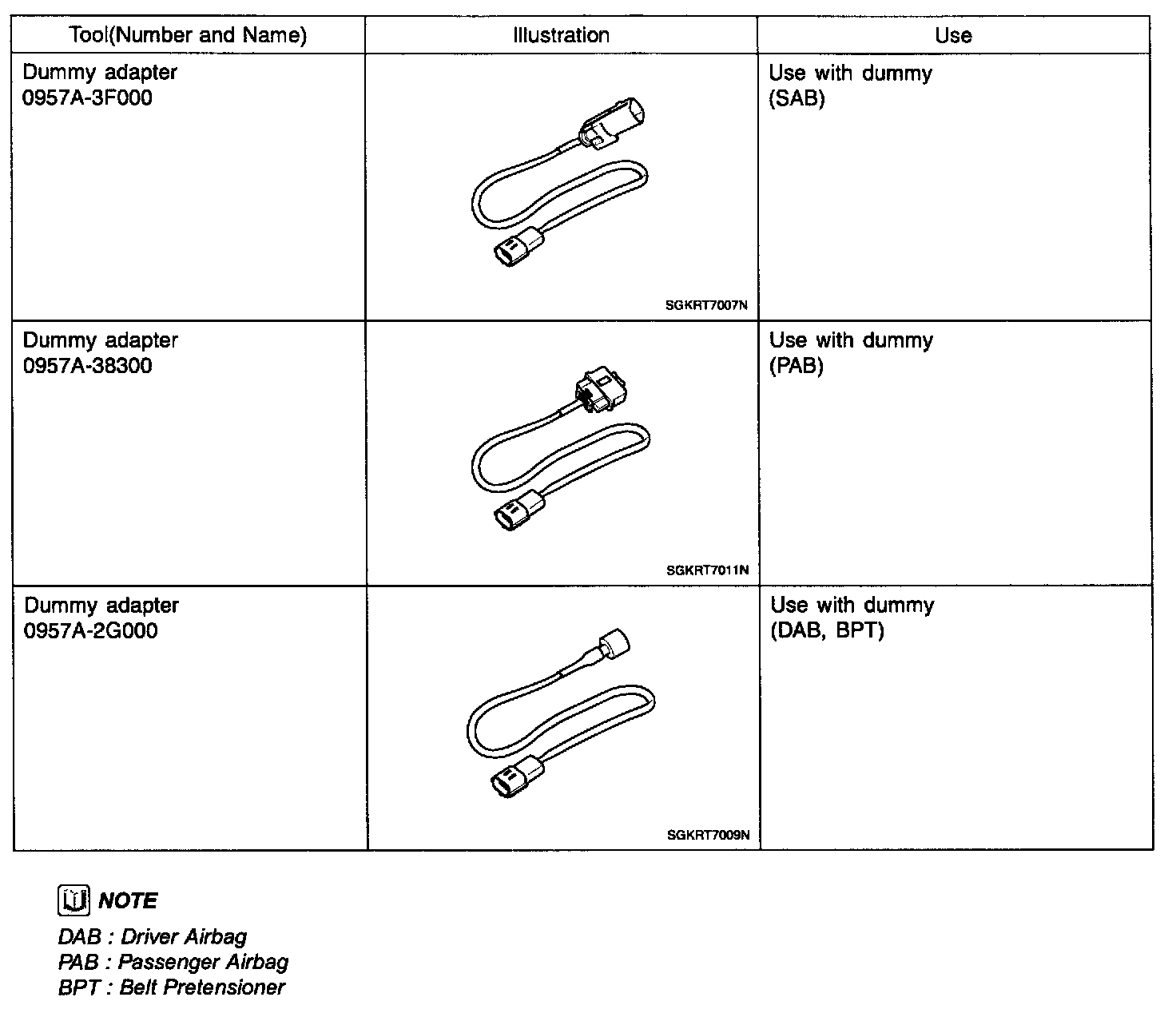

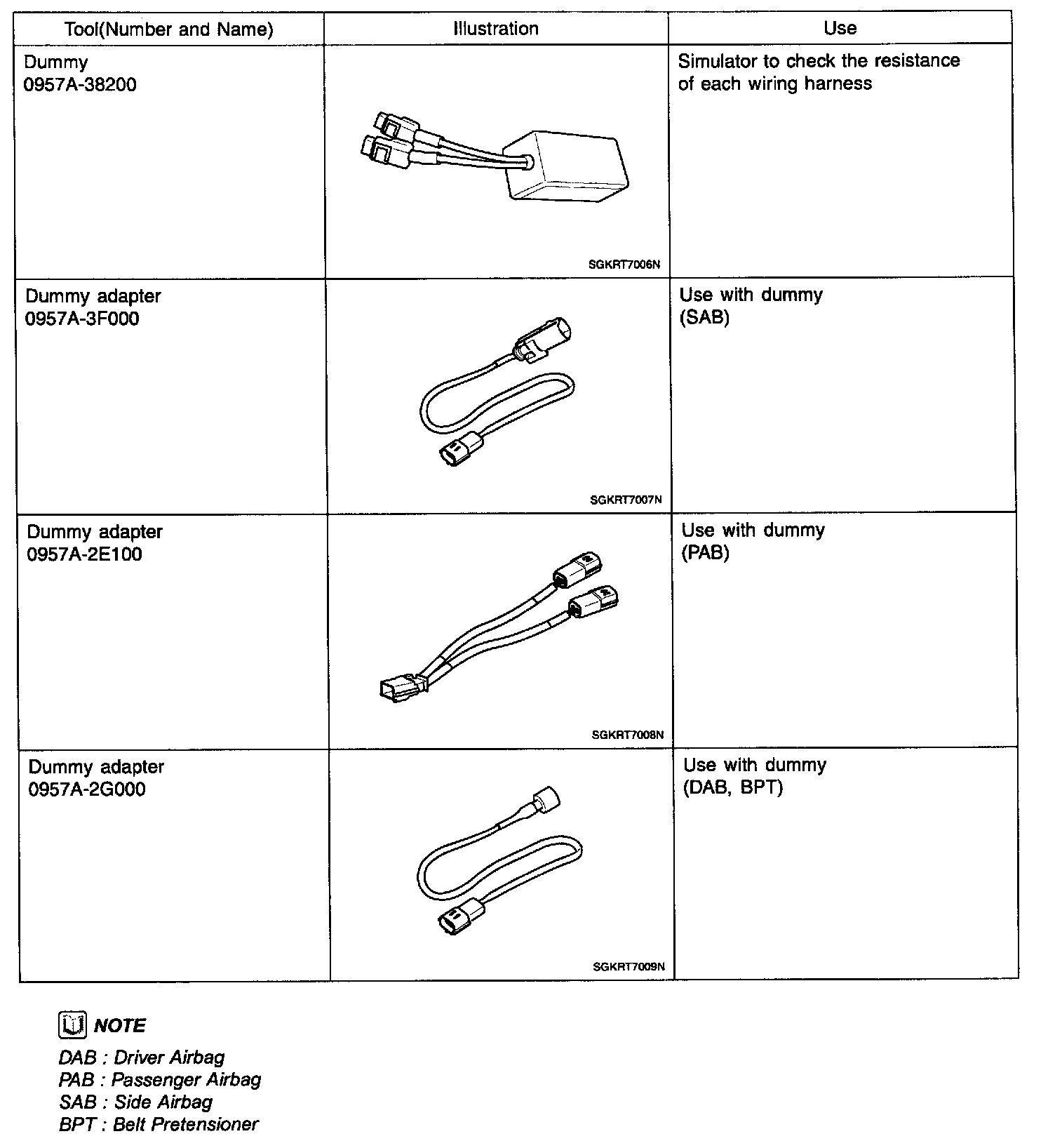

Special Service Tools (Depowered) - Part 2:
