Air Bag Control Module: Service and Repair

SUPPLEMENTAL RESTRAINT SYSTEM CONTROL MODULE (SRSCM)

REMOVAL
1. Remove ignition key from the vehicle.
2. Disconnect the negative (-) cable from battery and wait for at least three minutes.
3. Disconnect the DAB, PAB, SAB, and BPT connectors.
4. Remove the floor console.

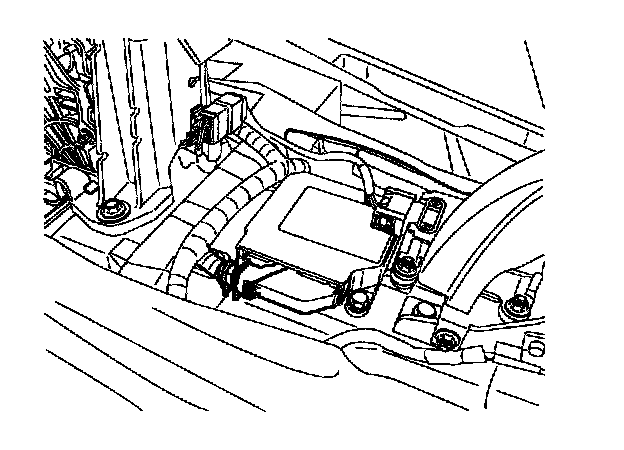

5. Disconnect the SRSCM harness connector from the SRSCM.

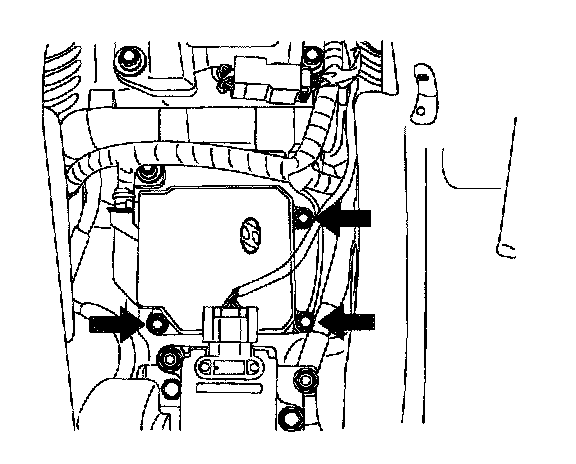

6. Remove the SRSCM mounting nuts (3EA) from the SRSCM, then remove the SRSCM.

INSTALLATION
1. Remove ignition key from the vehicle.
2. Disconnect the negative (-) cable from battery and wait for at least three minutes.
3. Install the SRSCM with the SRSCM mounting nuts.

Tightening Torque (SRSCM Mounting Bolt) : 0.7 - 0.9 kgf.m (7 - 9 N.m, 5.2 - 6.6 lb.ft)

4. Connect the SRSCM harness connector.
5. Install the floor console.
6. Connect the DAB, PAB, SAB and BPT connectors.
7. Reconnect the battery negative cable.
8. After installing the SRSCM, confirm proper system operation.
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
