Turn Signals: Service and Repair

TURN SIGNAL LAMP

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

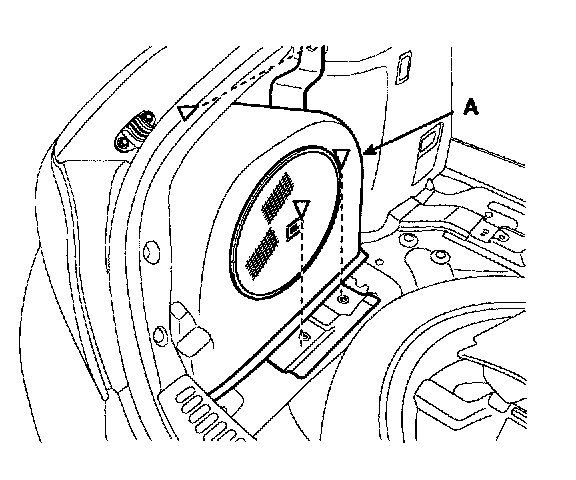

2. Remove the rear woofer speaker panel (A).

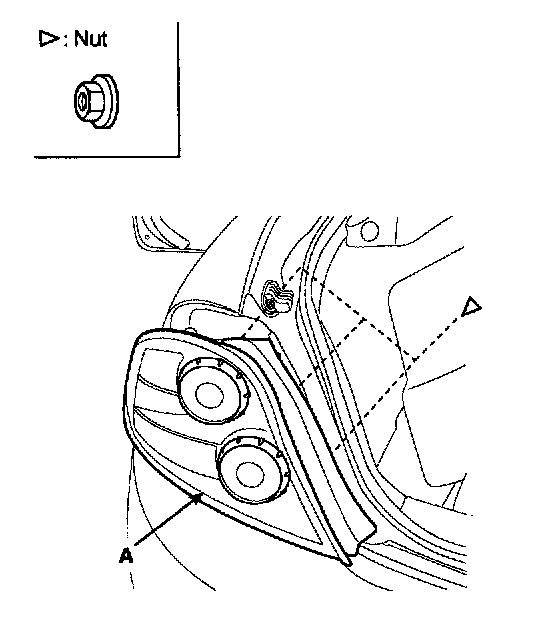

3. Loose the nuts (3EA) holding the rear combination lamp then disconnect the connector then remove the rear combination lamp (A).

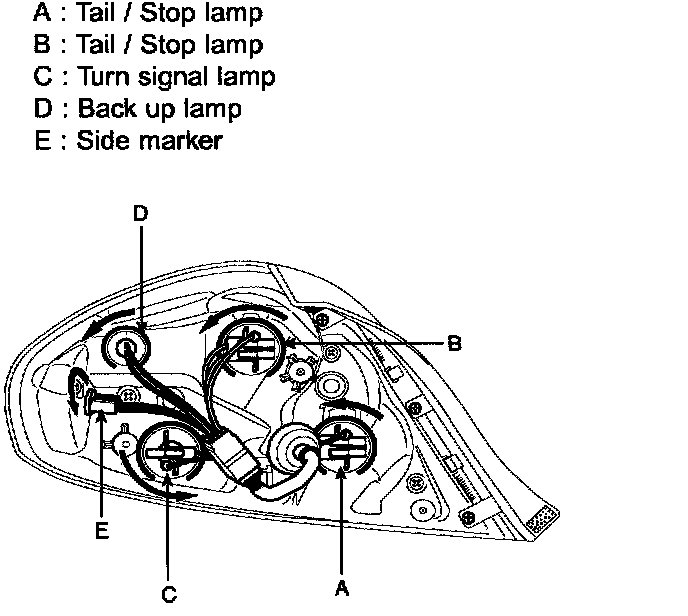

4. Replace the bulbs turning in counterclockwise direction after disconnecting the rear combination lamp assembly.
5. Installation is the reverse of removal.
