Map Light: Testing and Inspection

MAP LAMP SWITCH




INSPECTION

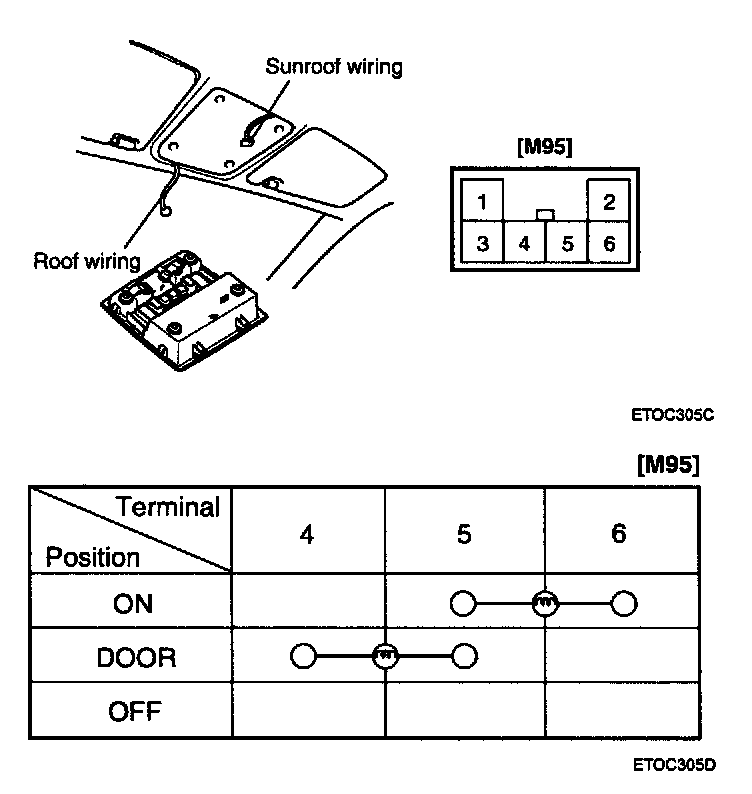

Remove the overhead console assembly and check for continuity between terminals.
