Fog/Driving Lamp: Service and Repair

FRONT FOG LAMP

REPLACEMENT
1. Disconnect the negative(-) battery terminal.
2. Remove the front bumper.

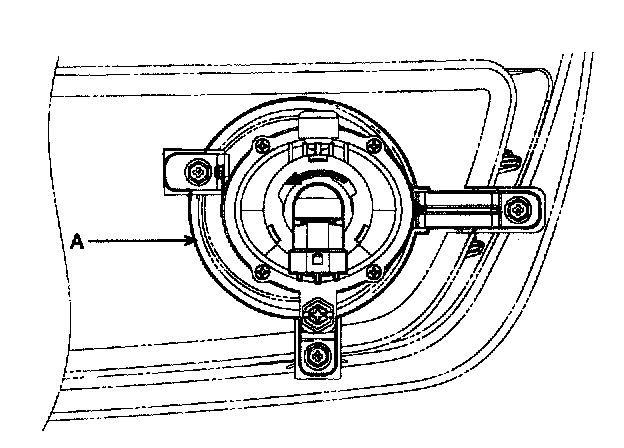

3. Remove the front fog lamp assembly (A) after disconnecting the front fog lamp connector and loosening 3 screws.
4. Installation is the reverse of removal.
