Temperature Control Actuator

TEMPERATURE CONTROL ACTUATOR

DESCRIPTION
General performance
- Operating temp. : - 30 °C -+ 80 °C
- Operating voltage: DC 9 V - 16 V
- Rated voltage: DC 12 V
- Rated load: 4 kgf/cm

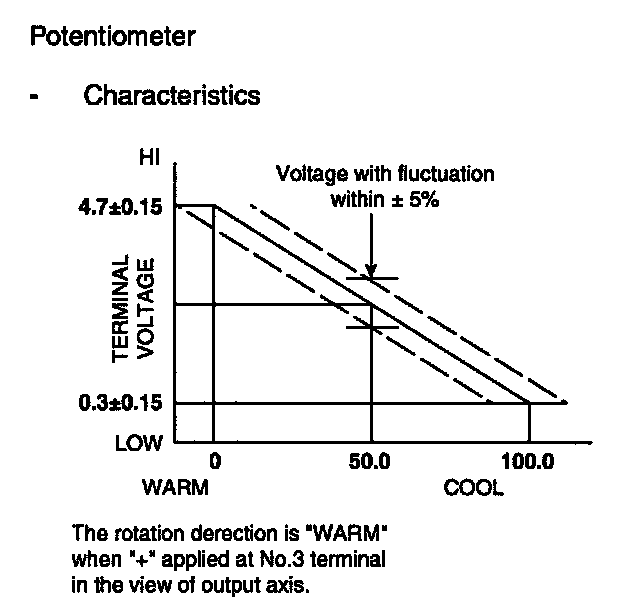

Potentiometer specification
- Rated voltage: DC 12 V
- Rated watt. : 0.25 W (at 40 °C)
- Operation volt: DC 5 V ± 0.5 V
- Total resistance: 5 kohms ± 10%

Basic performance
- Output lock torque : Min. 1.76 N.m (18 kgf/cm) (at DC 12 V)
- Rated AMP : Max. 150 mA
- Lock vol. : Max. 400 mA
