Mode Control Actuator

MODE CONTROL ACTUATOR

DESCRIPTION

General performance
- Operating temp. : -30 °C - +80 °C
- Operating voltage : DC 9 V - 16 V
- Rated voltage : DC 12 V
- Rated load : 4 kgf/cm

Potentiometer specification
- Rated voltage : DC 12 V
- Rated watt. : 0.25 W (at 40 °C)
- Operation volt : DC 5 V ± 0.5 V
- Total resistance : 5 kohms ± 10%

Basic performance
- Output lock torque : Min 1.76 N.m (18 kgf/cm) (at DC 12 V)
- Rated AMP. : Max 150 mA
- Lock vol. : Max. 400 mA

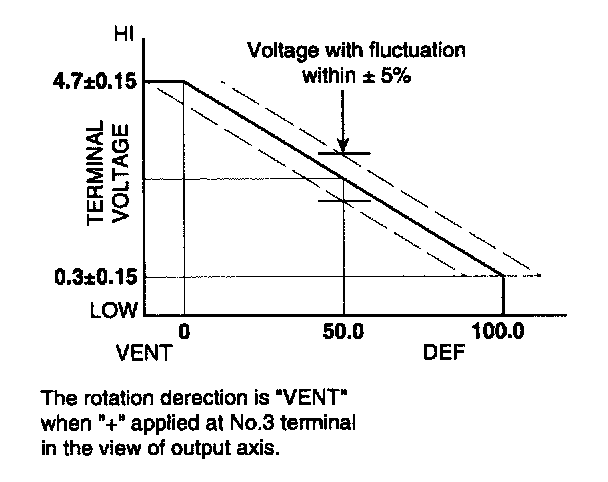

Potentiometer




- Characteristics
