Radio/Stereo
Radio/Stereo

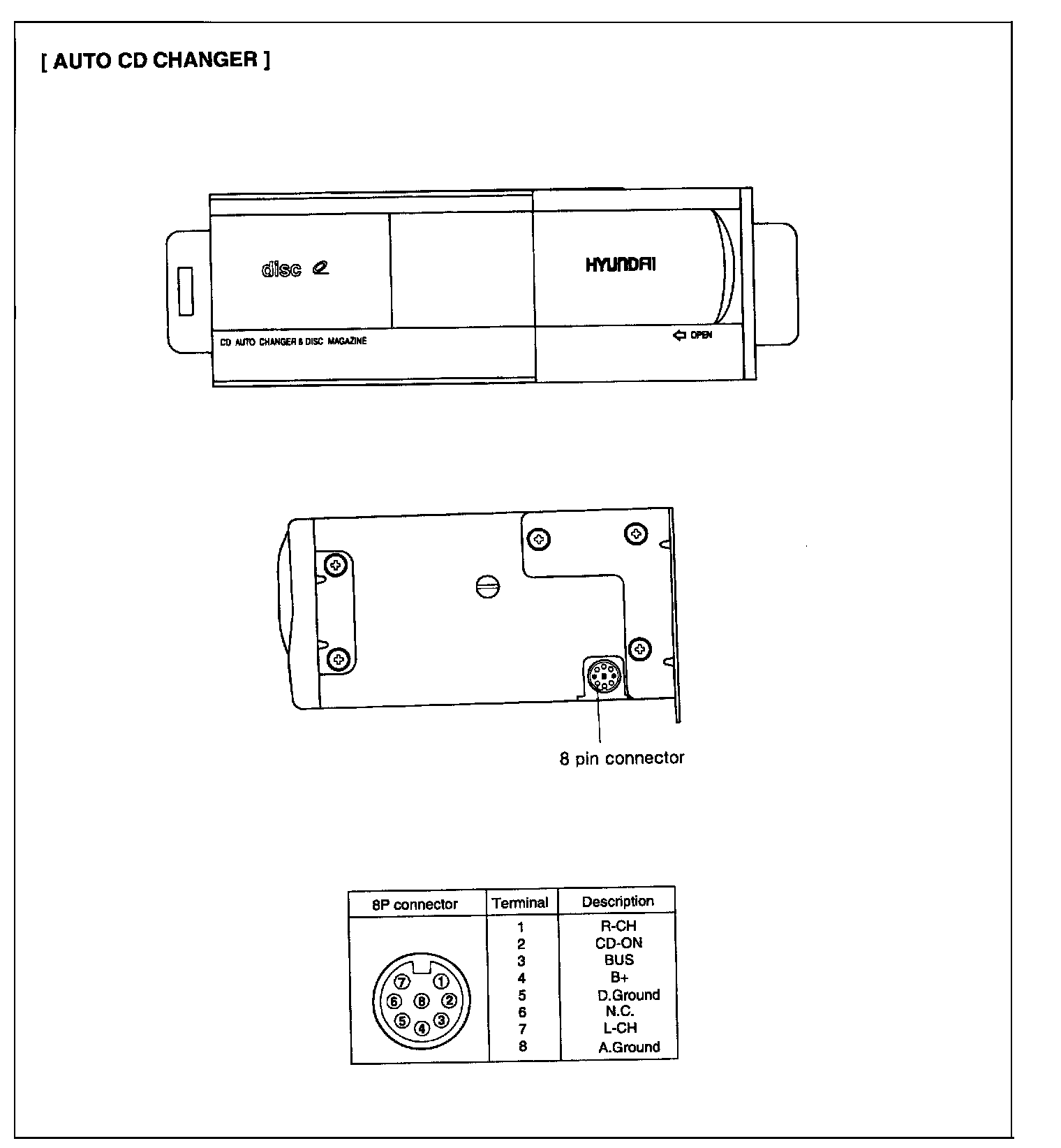

Audio Unit [AUTO CD CHANGER] - Components:

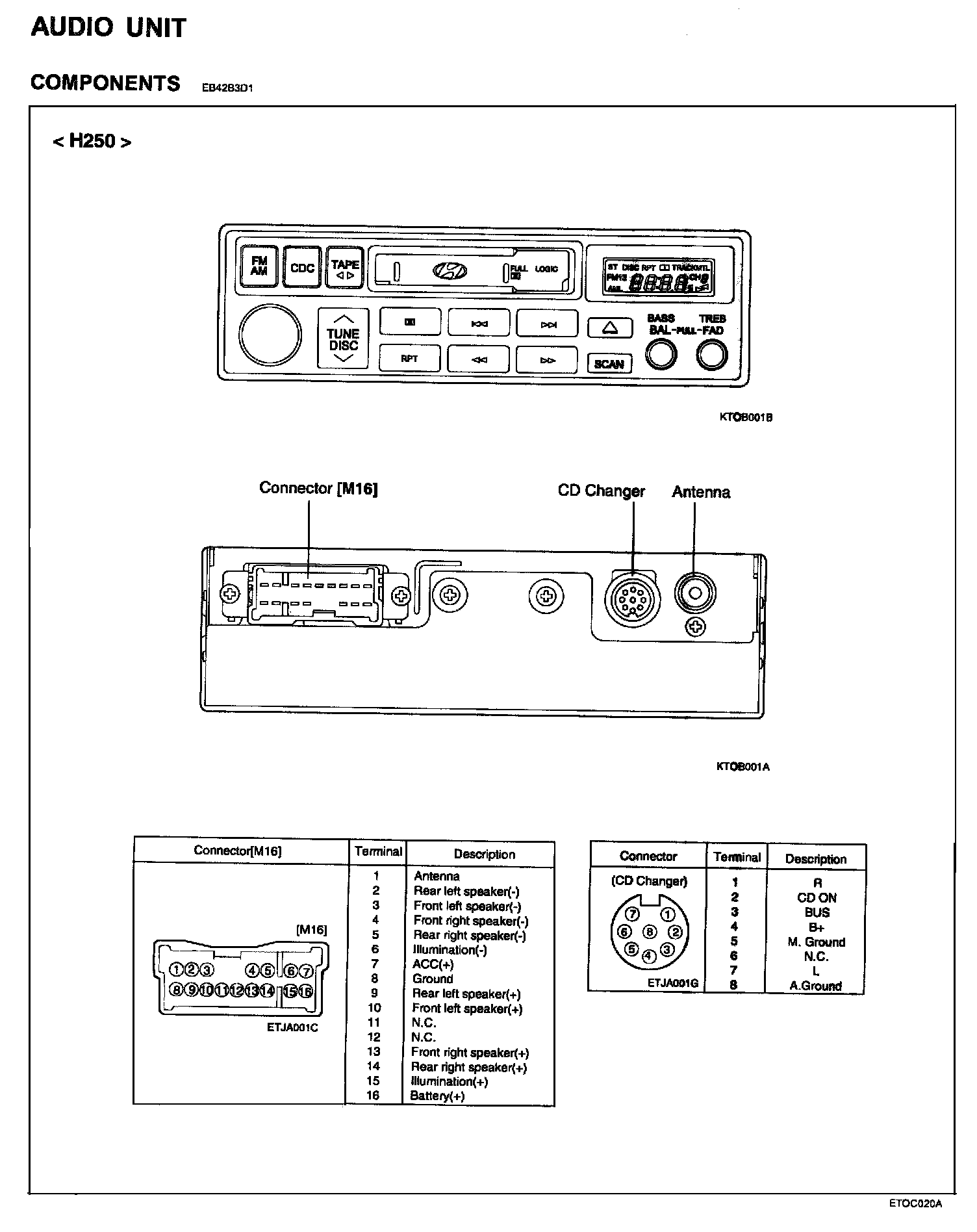

Audio Unit <H250> - Components:

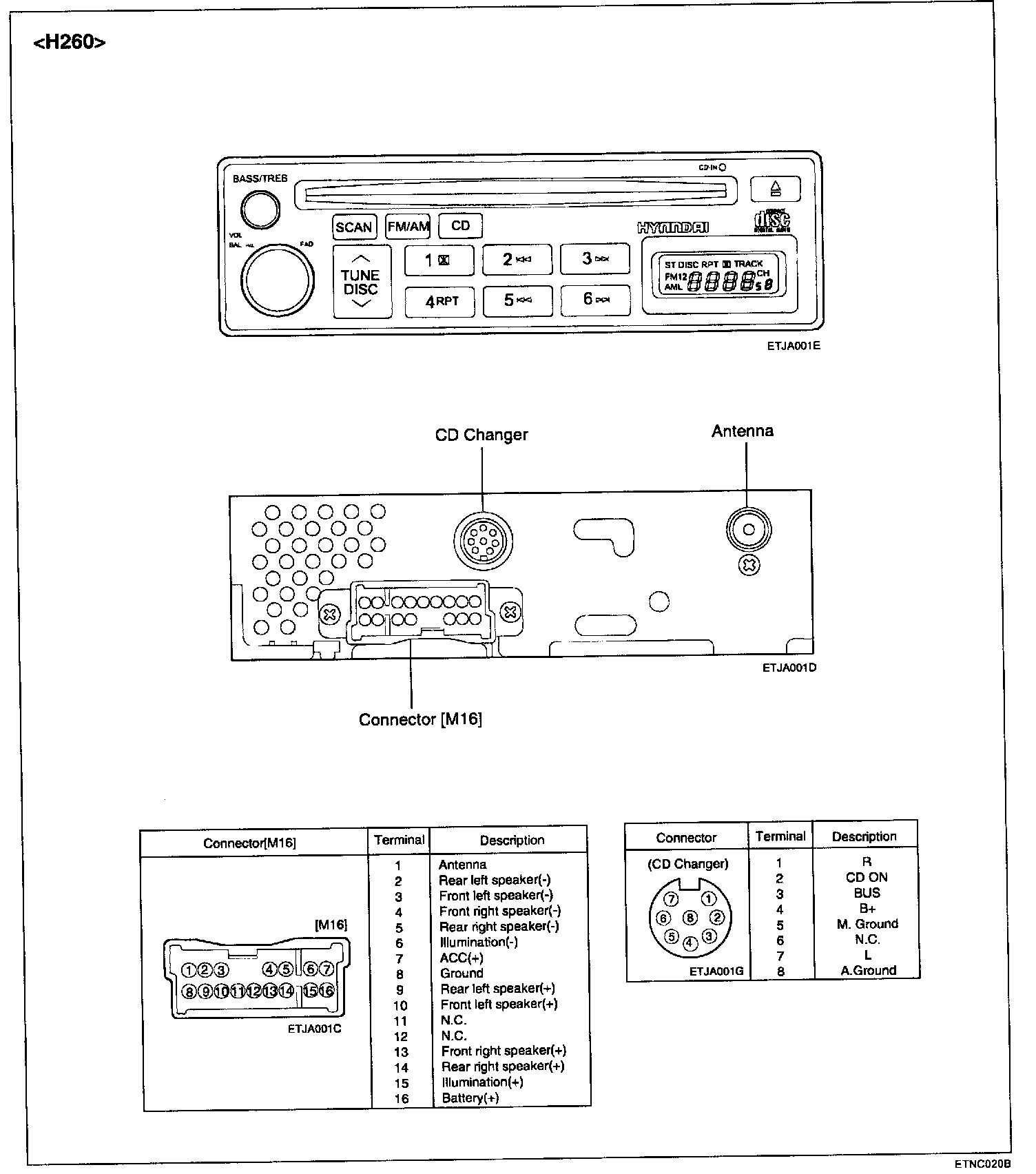

Audio Unit <H260> - Components:

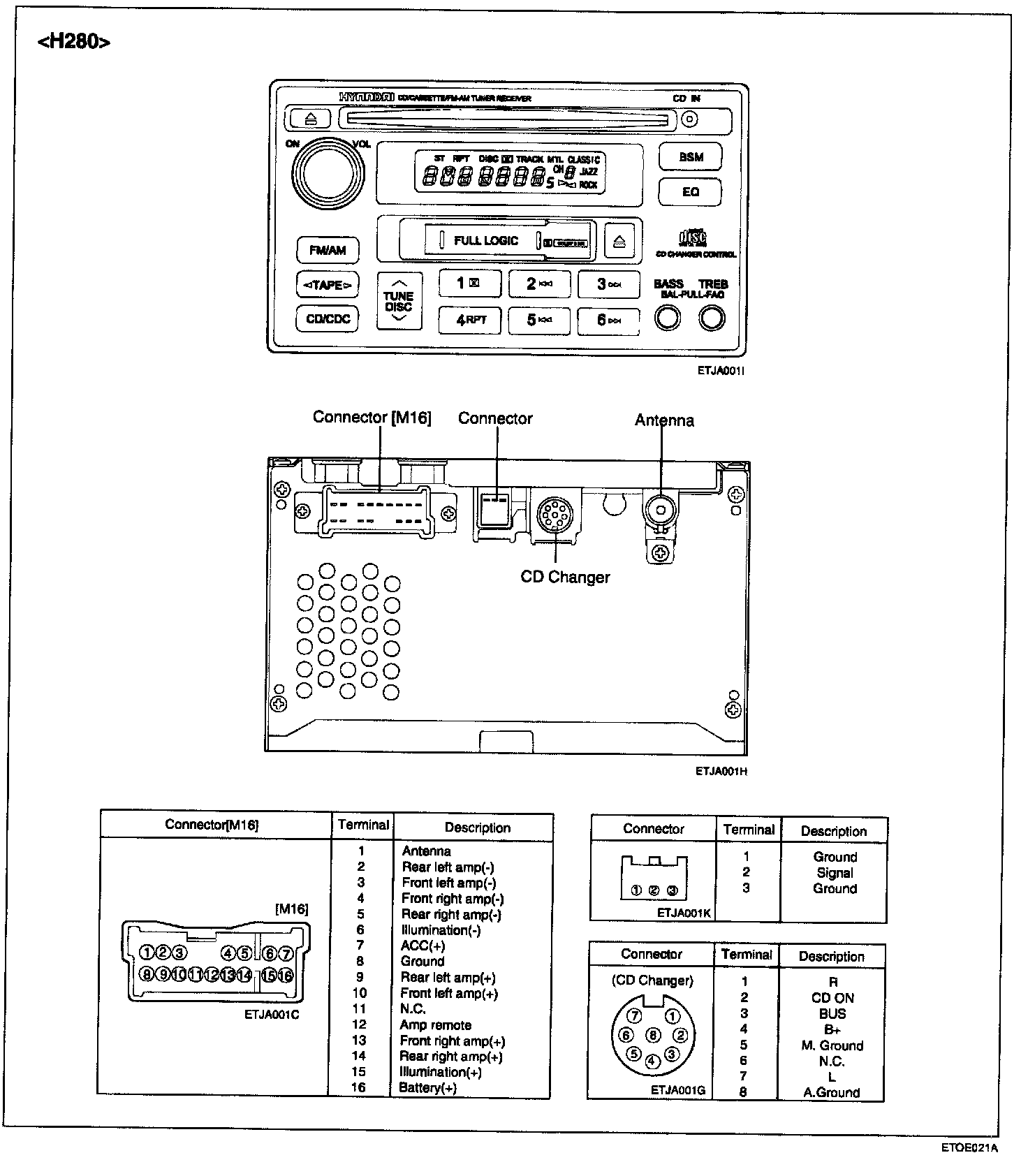

Audio Unit <H280> - Components:
