Brake Proportioning/Combination Valve: Service and Repair
PROPORTIONING VALVEREMOVAL
Remove the proportioning valve from the master cylinder.
INSPECTION
1. Connect two pressure gauges; one to the input side, and one to the output side.
NOTE: Be sure to bleed the system after connecting the pressure gauges.
2. With the brakes applied, measure the input pressure and the output pressure. If the measured pressures are within the specified range as illustrated, the proportioning valve is good.
3. Reconnect the brake lines in their original positions and bleed the system.

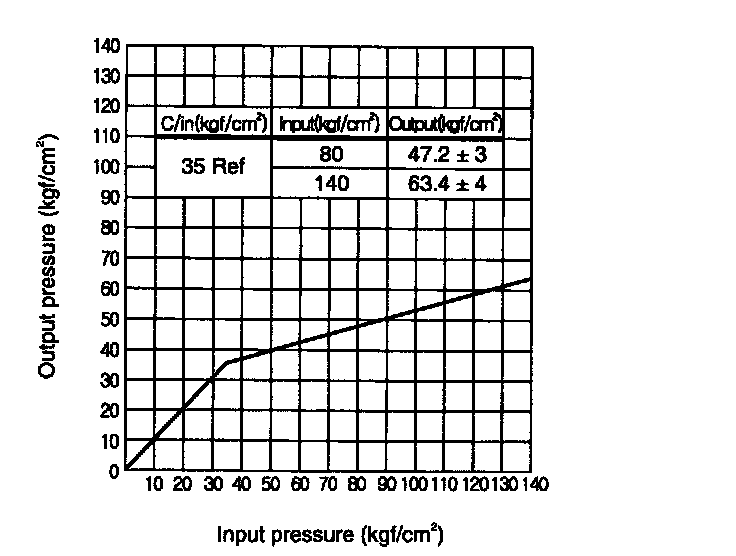

NOTE: This figure shows characteristics of the proportioning valve as the pressure increases.
INSTALLATION

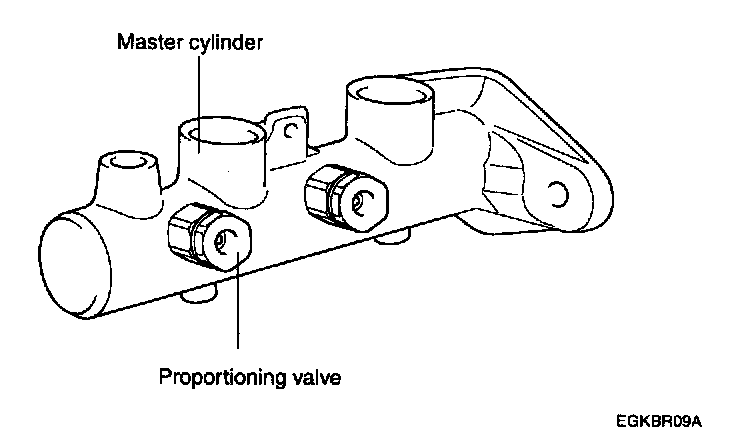

1. Install the master cylinder according to the illustration.
2. Tighten the flare nuts and bleed the system.
Tightening torque
Brake tube flare nut: 13-17 Nm (130-170 kgf-cm, 9-12 lb-ft)
Proportioning valve mounting nut: 35-55 Nm (350-550 kgf-cm, 30-40 lb-ft)
