Radio/Stereo: Service and Repair

AUDIO UNIT

REMOVAL
1. Disconnect the negative(-) battery terminal.

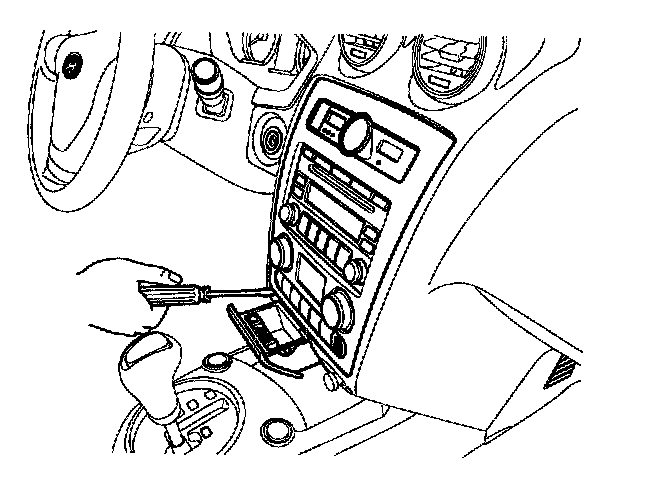

2. Remove the center facia panel and disconnect the wire connectors.

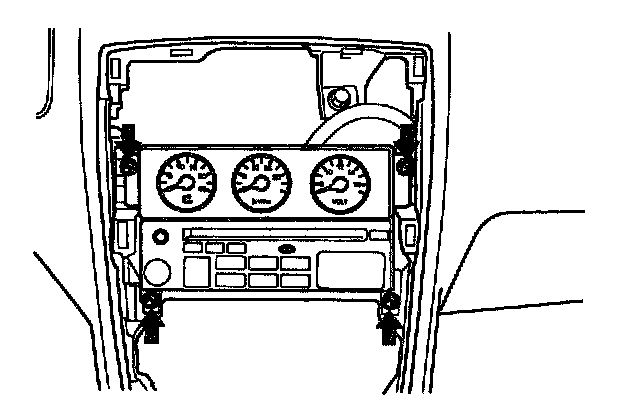

3. Remove the 4 screws holding the audio and multigauge unit then remove the audio assembly.
4. Installation is the reverse of removal.
