Keyless Entry Transmitter: Testing and Inspection

TRANSMITTER CODE REGISTRATION

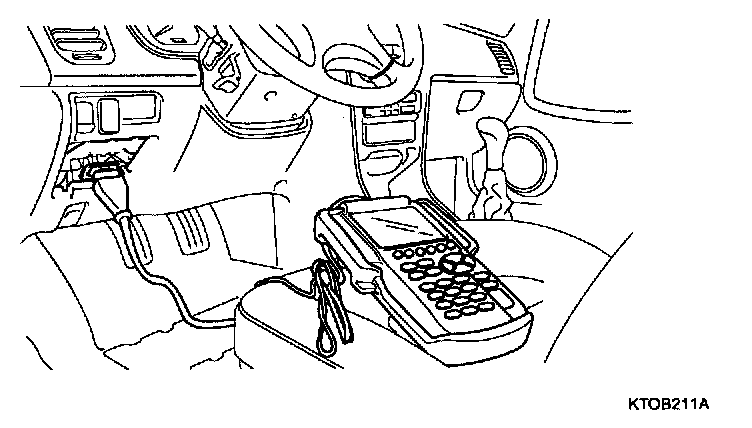

1. Connect the DLC cable of hi-scan to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on hi-scan.

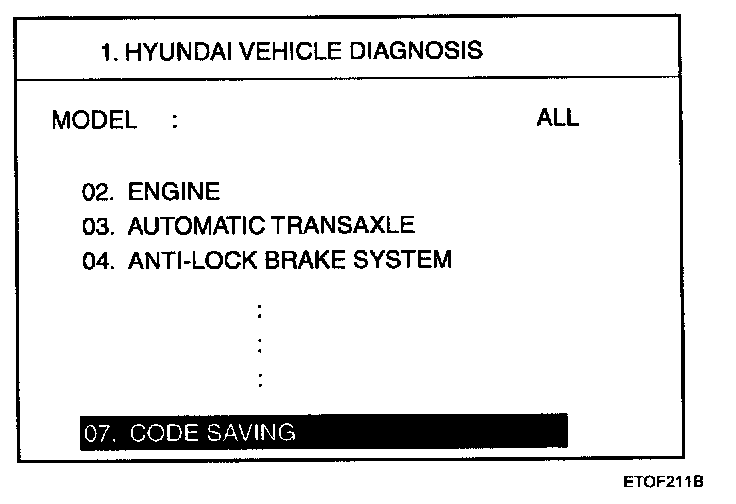

2. Select the vehicle model and then do "CODE SAVING".

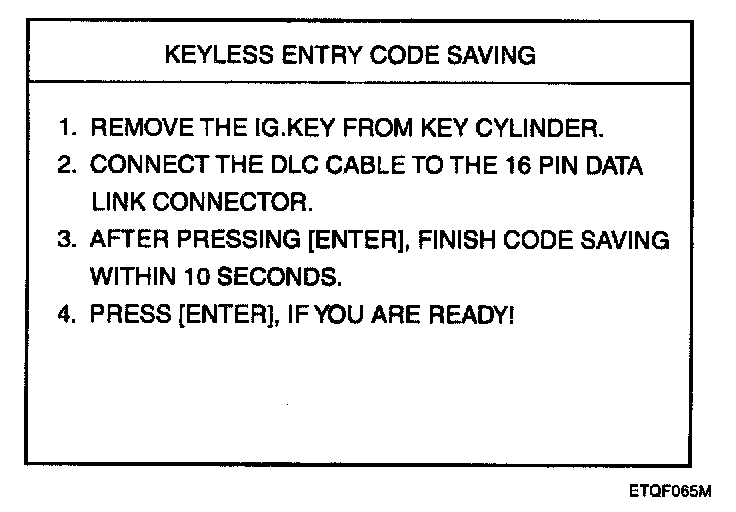

3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as above.

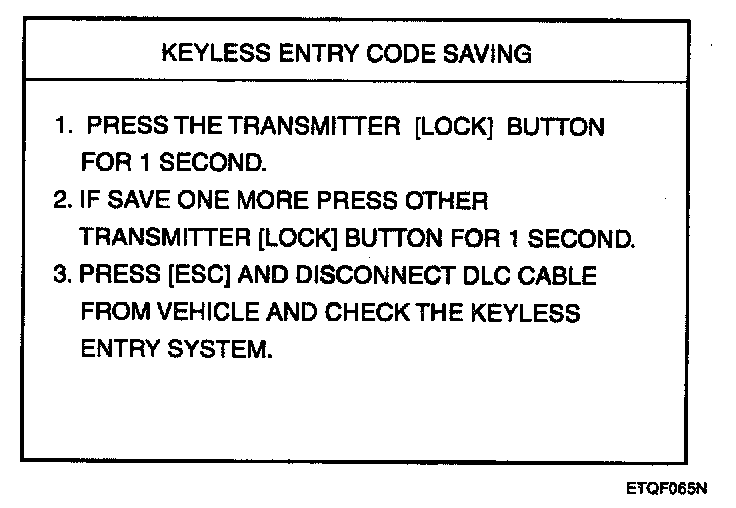

4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 3 and then code saving completed.

CAUTION: Take care when you remove the diagnostic tool connector. Don't remove it with holding the wiring by hand. Please hold the body of it.
