Heated Glass Element Switch: Testing and Inspection

REAR WINDOW DEFOGGER SWITCH

INSPECTION
1. Disconnect the negative (-) battery terminal.

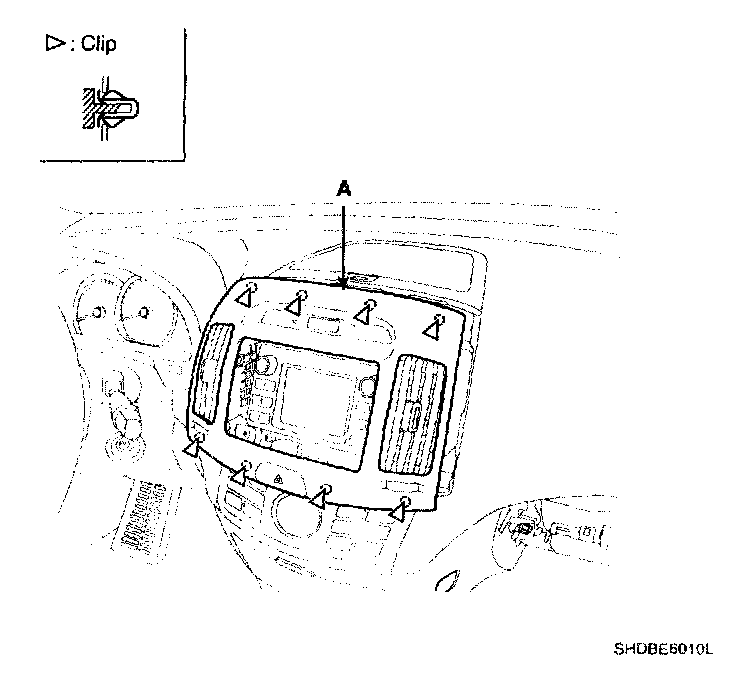

2. Remove the center facia panel(A). Take care not to damage fixing clips.
3. Disconnect connectors.

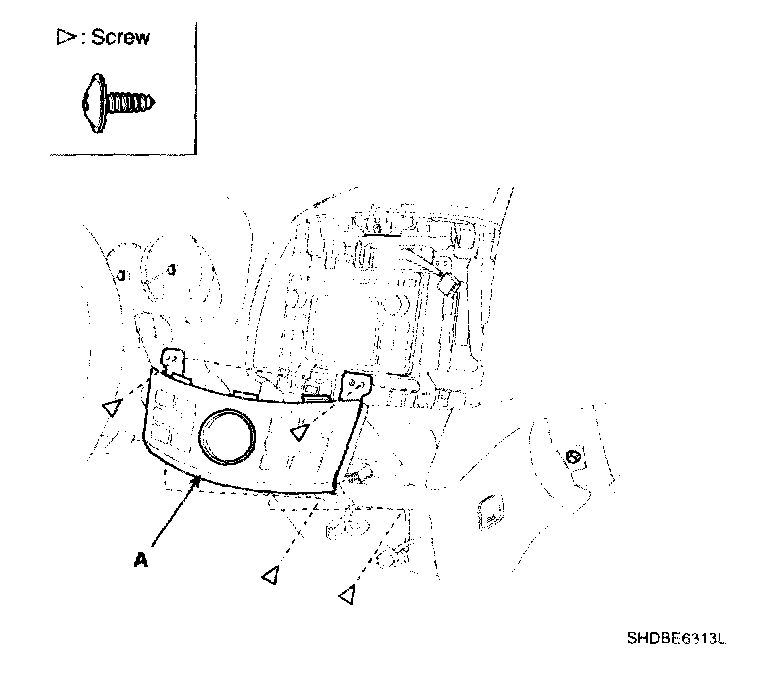

4. Remove the auto heater control assembly (A) after loosening 2 screws.

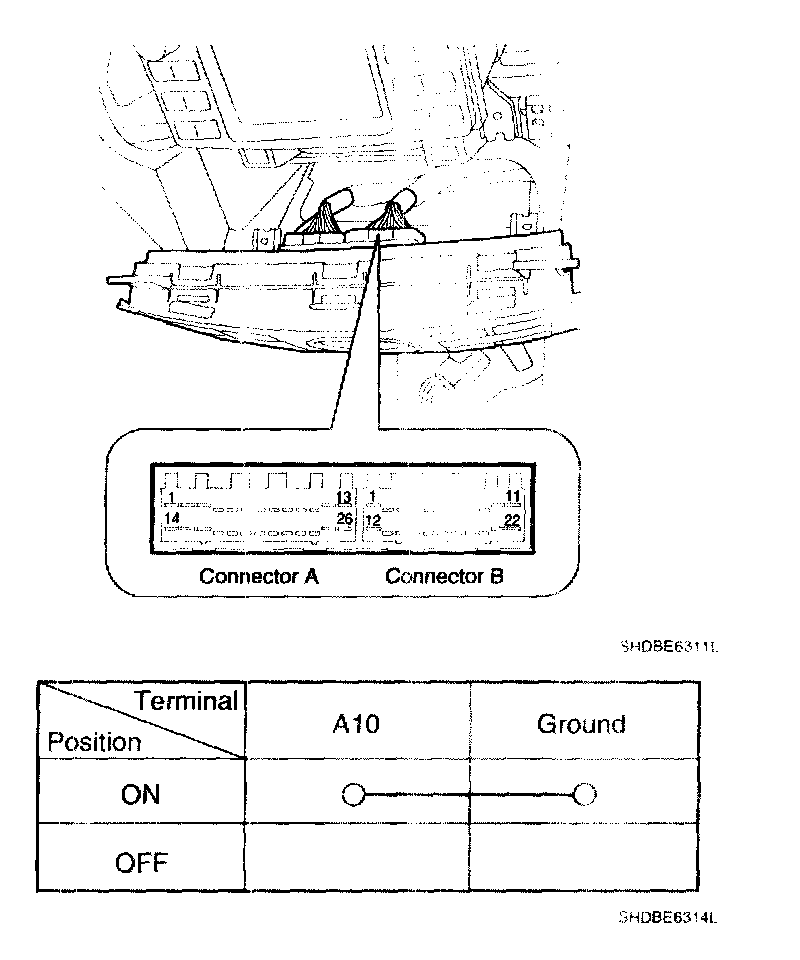

5. Using an Ohmmeter, inspect the continuity between the terminals after removing controller.
