Pressure Regulating Solenoid: Service and Repair
VFS (VARIABLE FORCE SOLENOID) VALVEDESCRIPTION
VFS valve controls the regulator valve and varies the line pressure from 4.5 bar to 10.5 bar according to the throttle open angle and the shift range. The holder is installed on the upper side of the case and the filter is installed to the two places on the holder outside to prevent in the strange material from flowing in the VFS.
VFS (VARIABLE FORCE SOLENOID) VALVE CONTROL FEATURE
PWM solenoid valve is controlled linearly according to the current value.
REMOVAL
1. Remove the battery terminal.
2. Lift the vehicle.
3. Remove the under cover.
4. Loosen the drain plug and drain the transaxle oil.
5. Remove the oil pan.
6. Remove the oil filter.
7. Remove the valve body.

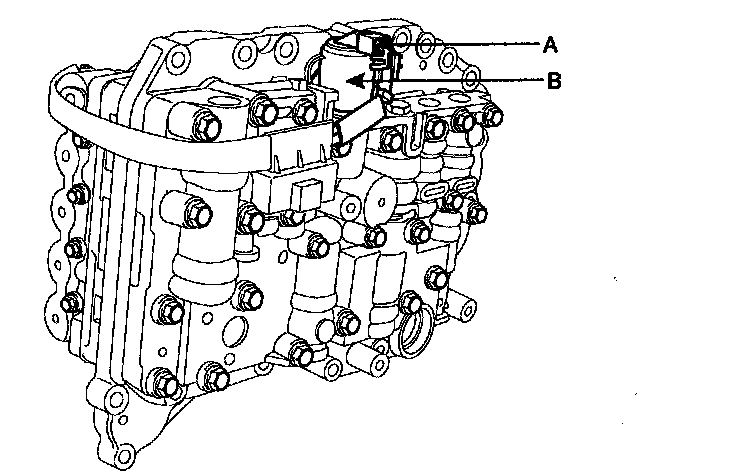

8. Disconnect the VFS solenoid valve connector (A).
9. Remove the solenoid valve assembly (B).
INSTALLATION
1. Install the solenoid valve (B).
CAUTION: Apply the ATF oil or White Vaseline to the O-ring not to be damaged.
2. Connect the solenoid valve connector (A).
CAUTION: When connecting the solenoid valve connector, check the connector for rust, dirt, or oil, then reconnect it.
3. Install the valve body.
TORQUE: 10-12 Nm (1.0-1.2 kgf.m, 7-8 lb-ft)
4. Install the oil filter.
TORQUE: 5-7 Nm (O.5-0.7 kgf.m, 4-5 lb-ft)

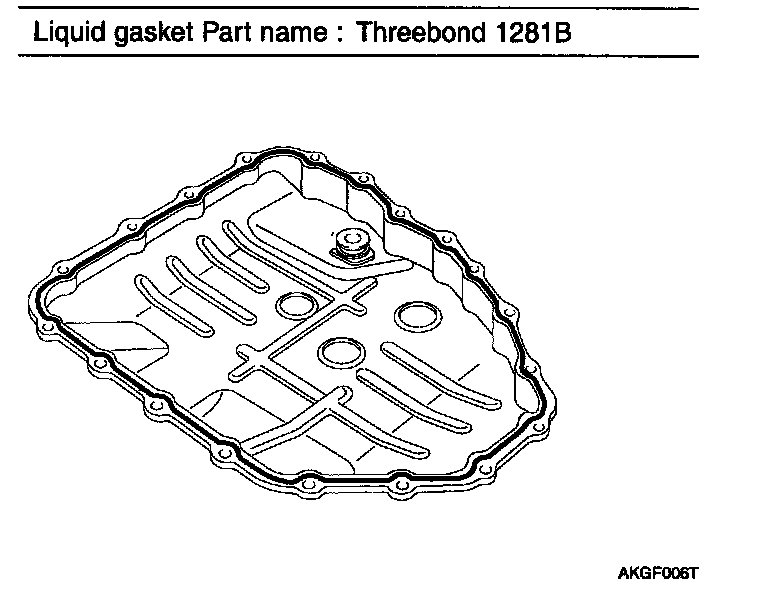

5. Continue to apply liquid gasket at application points at the oil pan with 02.5 mm (0.098 in) thickness.
6. Tighten the mounting bolt with the specified torque after installing the oil pan.
TORQUE 10-12 Nm (1.0-1.2 kgf.m, 7-8 lb-ft)
7. Install the drain plug,
TORQUE 35-45 Nm (3.5-4.5 kgf.m, 25-32 lb-ft)
8. Installation is the reverse of the removal.
