Transmission Removal

MANUAL TRANSAXLE

REMOVAL

CAUTION:
^ Use fender covers to avoid damaging painted surfaces.
^ To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE: Mark all wiring and hoses to avoid misconnection.

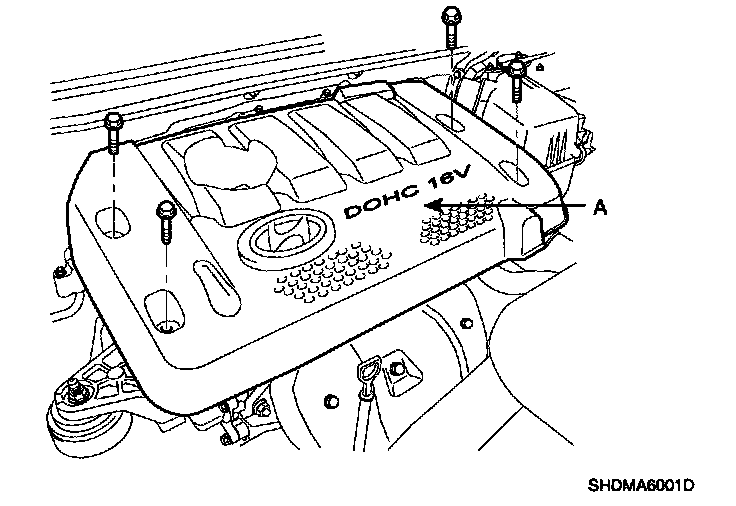

1. Remove the engine cover (A).

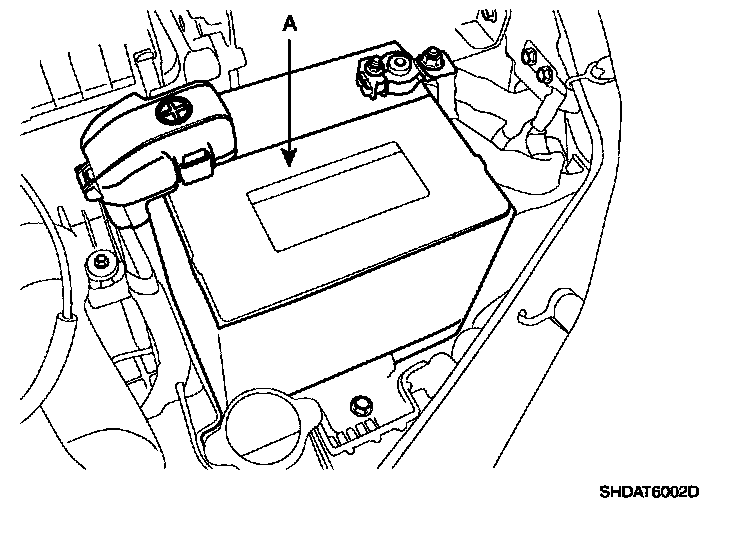

2. Remove the battery (A) after removing the battery terminal.

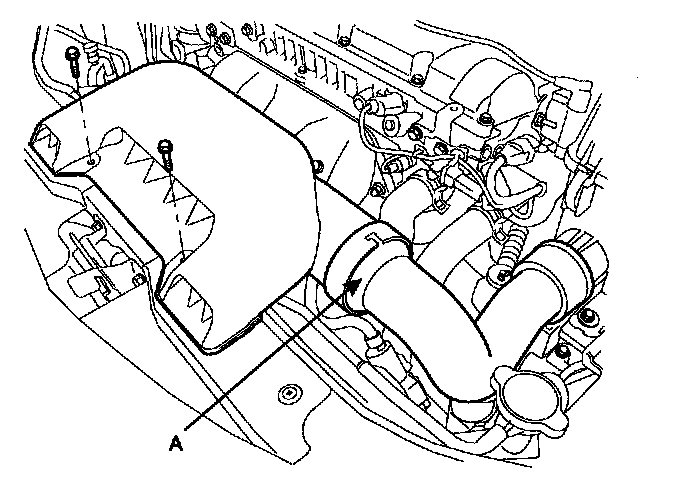

3. Remove the air duct assembly (A).

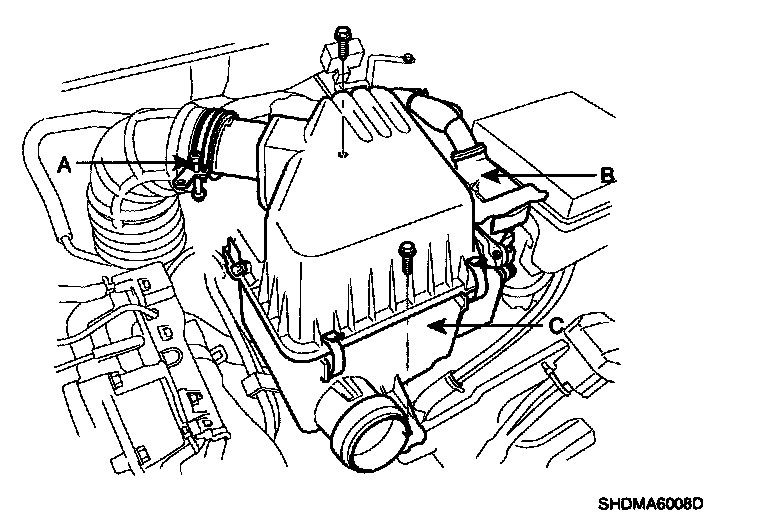

4. Remove the air cleaner assembly (C) by disconnecting the clamp (A) and the ECM connector (B).

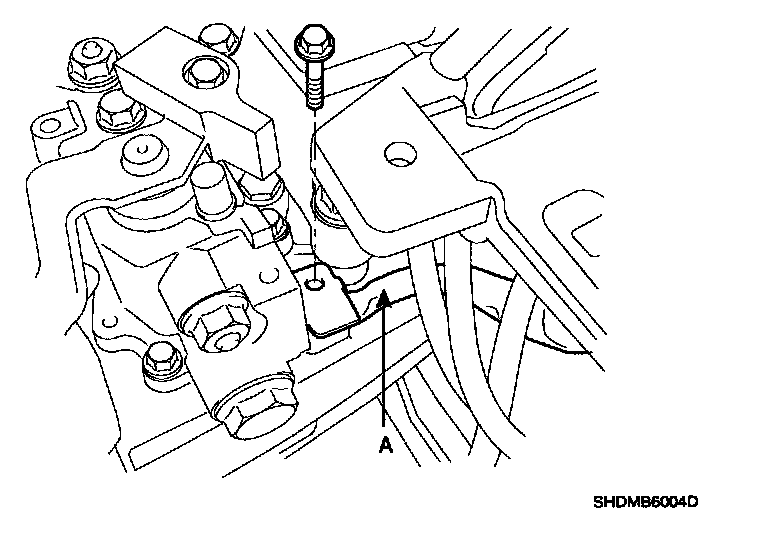

5. Remove the ground cable from transaxle (A).

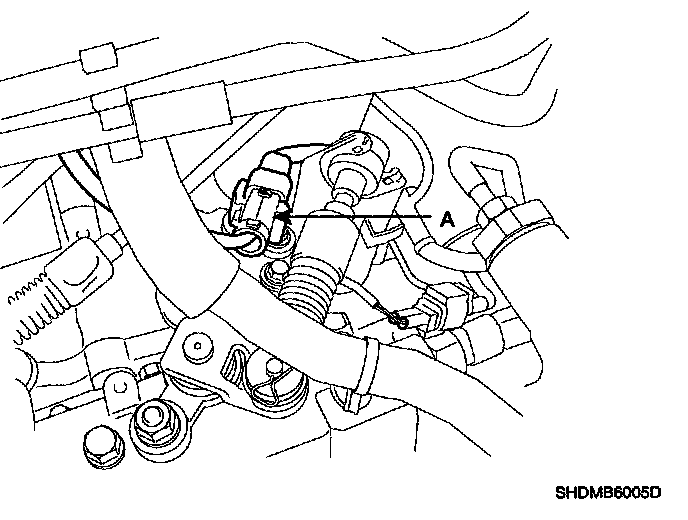

6. Disconnect the vehicle speed sensor and the back lamp switch integrated connector (A).

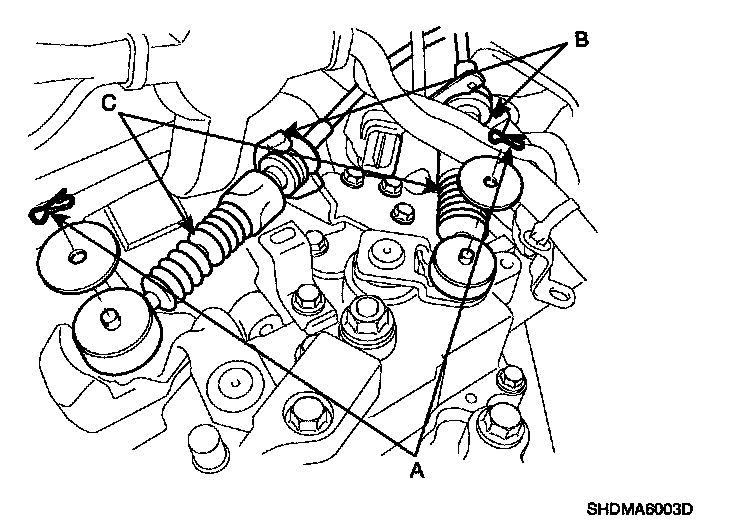

7. Remove the control cable assembly (C) by removing the snap pins (A) and clips (B).





8. Remove the control cable bracket (A).

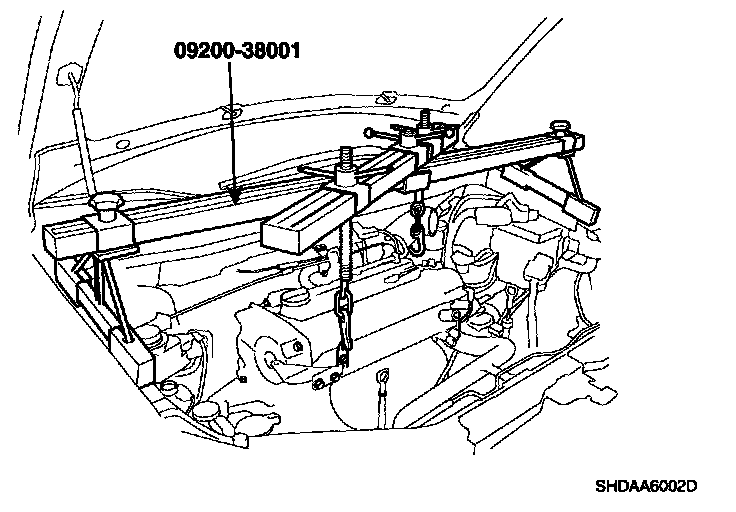

9. Using the special tool (09200-38001). support the engine assembly safely.

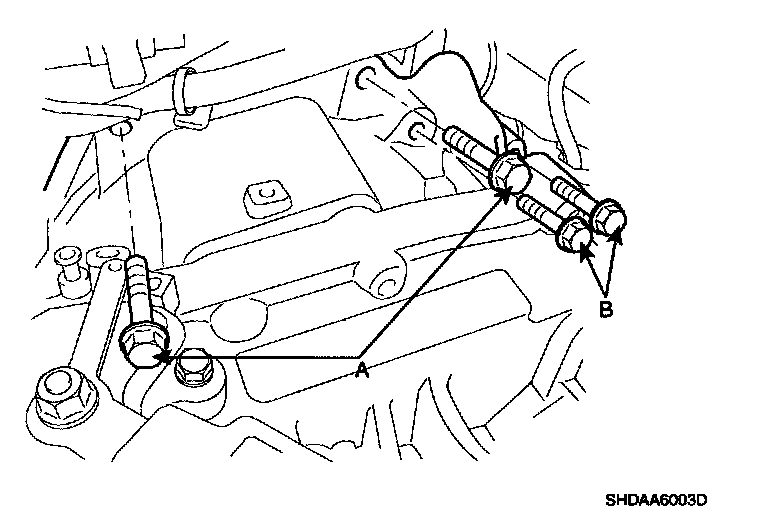

10. Remove the transaxle upper mounting bolts (A-2ea) and the starter motor mounting bolts (B-2ea)

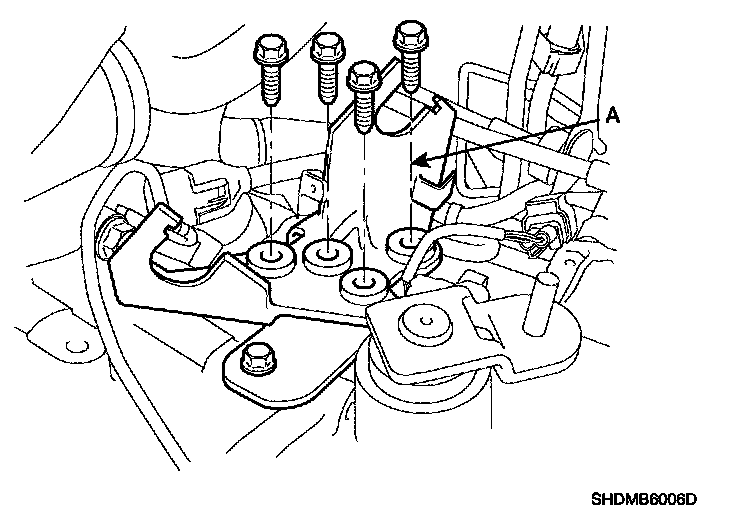

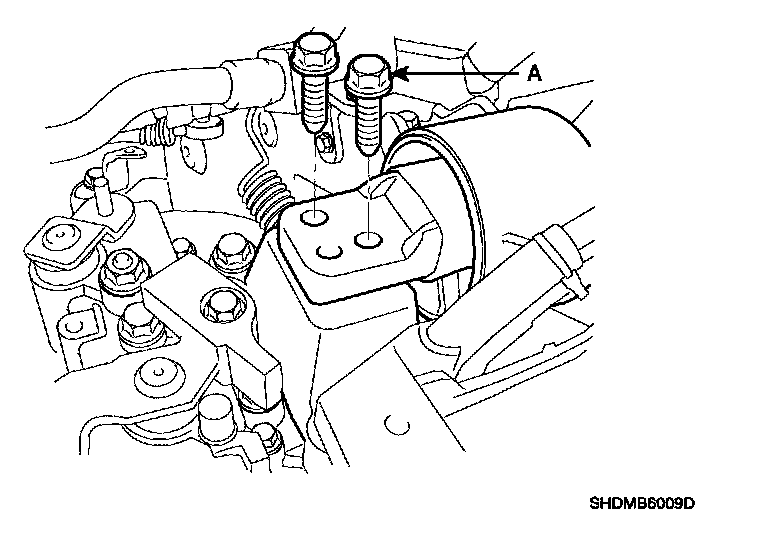

11. After removing the four bolts, take the transaxle insulator mounting bracket (A) off.

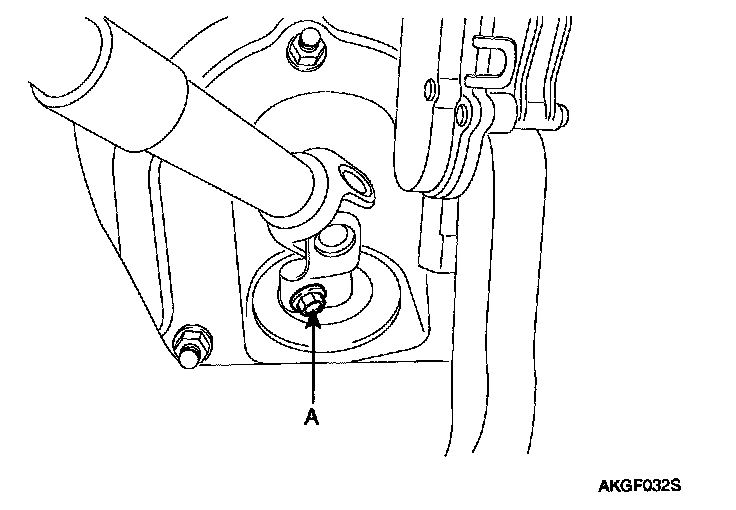

12. Remove the steering joint assembly bolt.





13. Lifting up the vehicle.
14. Remove the front wheels and tires.
15. Remove the lower arm ball joint mounting nut, the stabilizer link mounting nut, and the tie rod end mounting nut from the front knuckles.

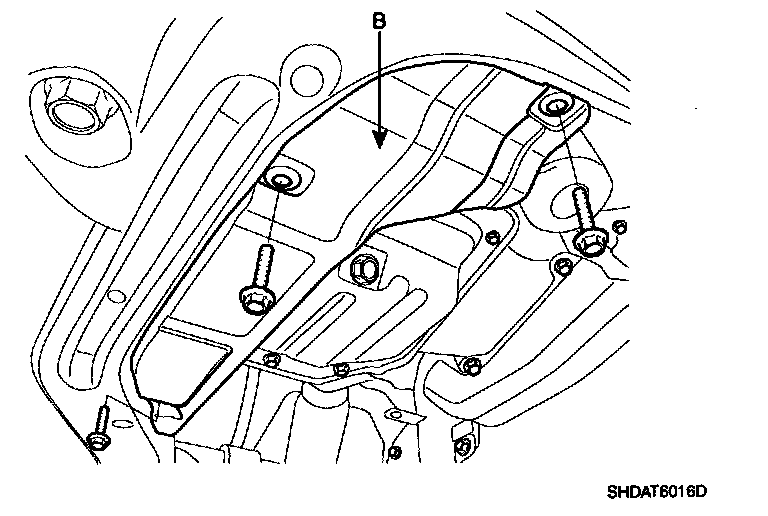

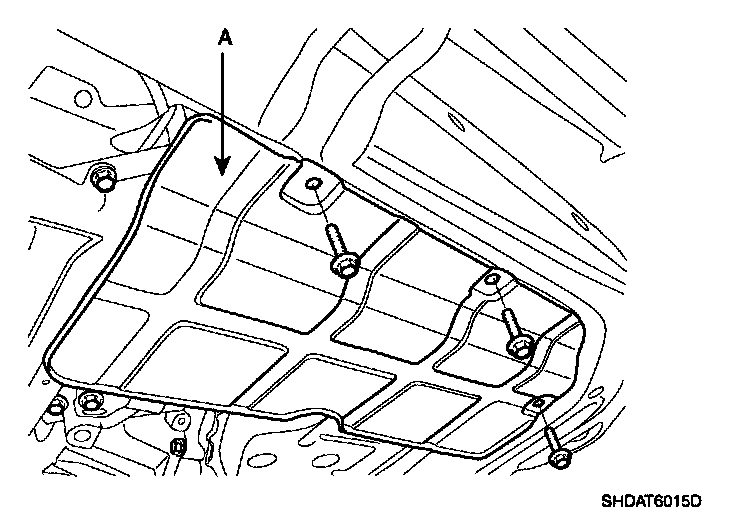

16. Remove the under shield cover (A,B).

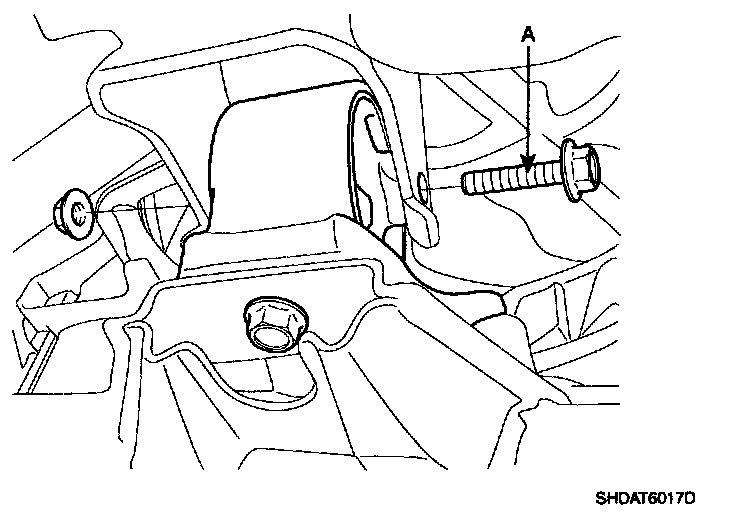

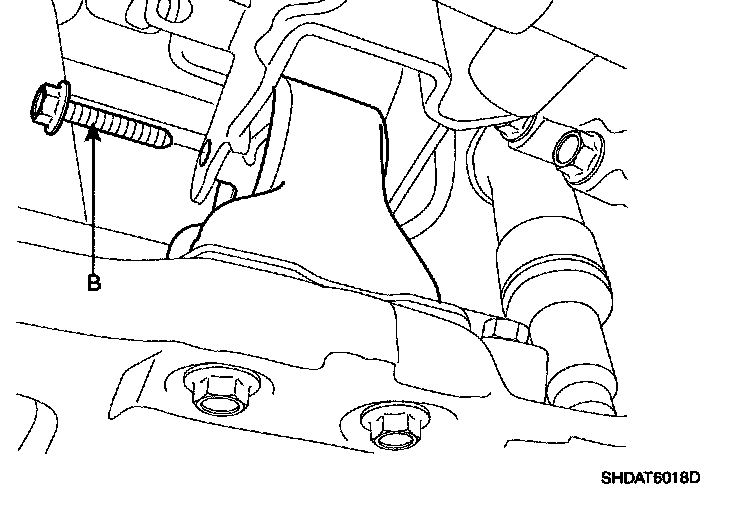

17. Remove the roll stopper mounting bolts (A,B).

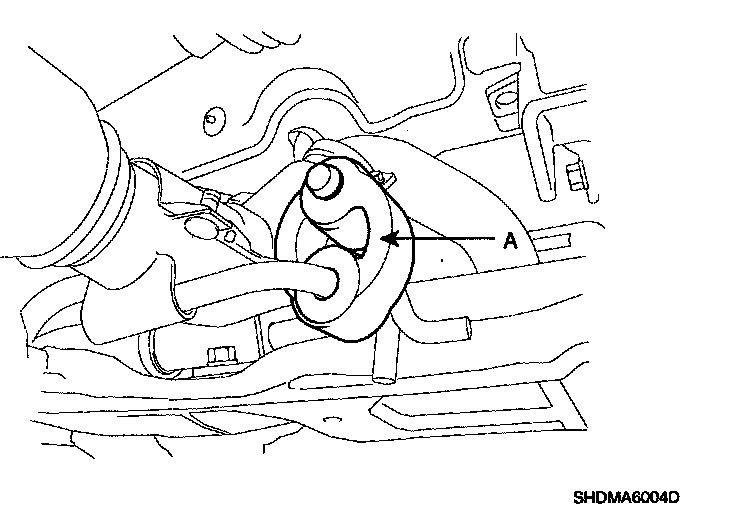

18. Disconnect the muffler hanger rubber (A).

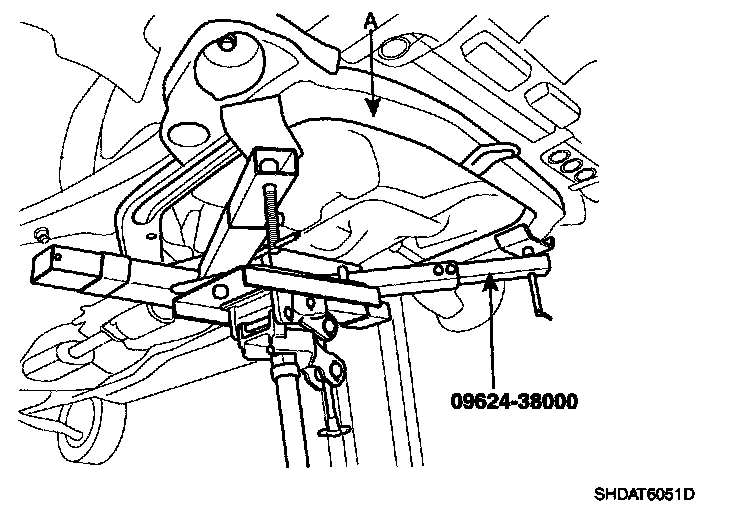

19. Supporting the sub frame (A) with a jack and the Special tool (09624-38000), remove the mounting bolts.

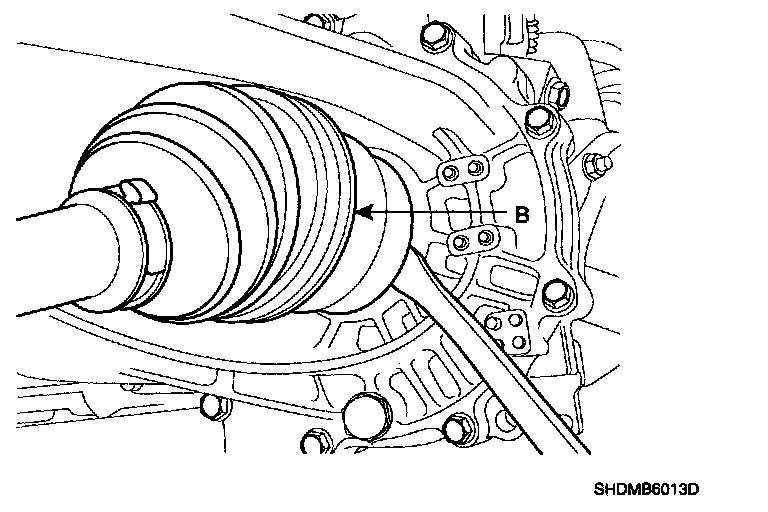

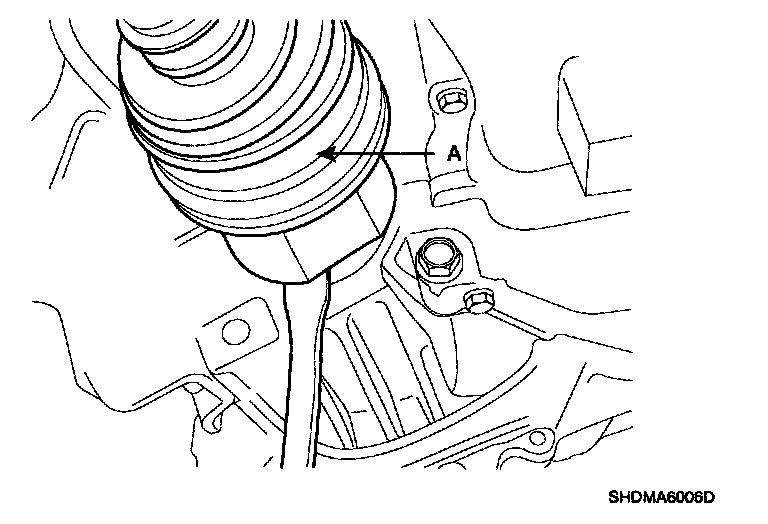

20. Disconnect the drive shafts (A,B) from the transaxle.

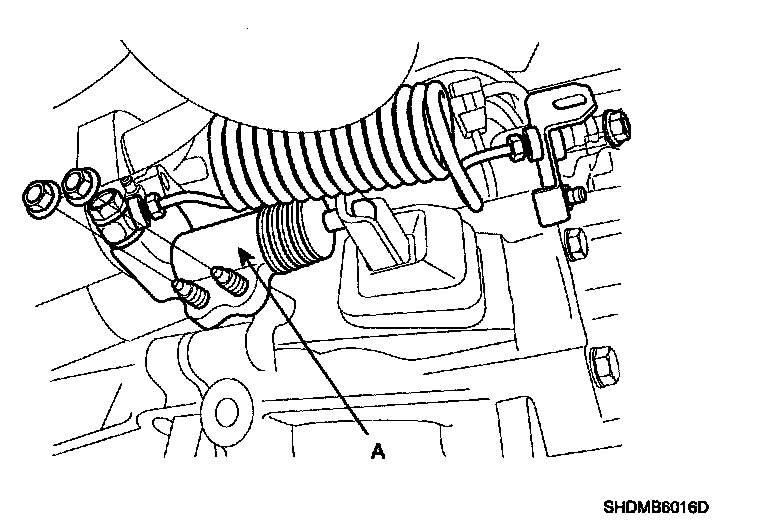

21. Remove the clutch release cylinder assembly (A).

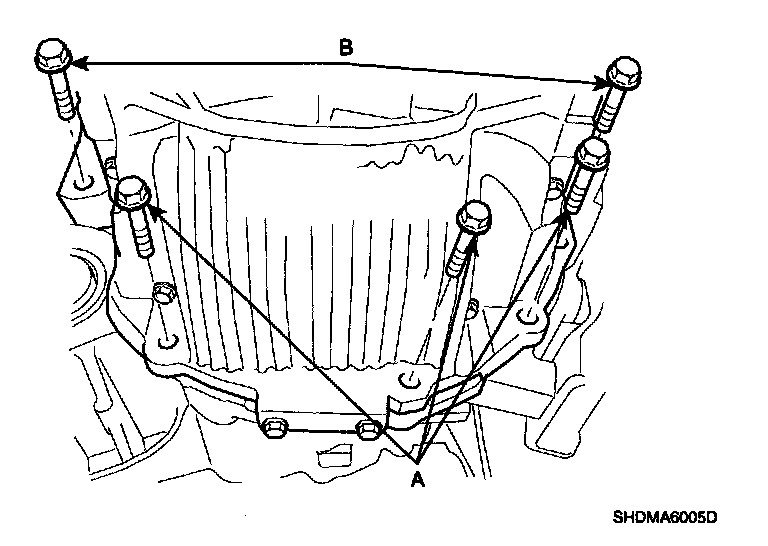

22. Supporting the transaxle With a jack, remove the transaxle lower mounting bolts (A-3ea, B-2ea).





23. Lowering the jack slowly, remove the transaxle.
