Transmission Installation

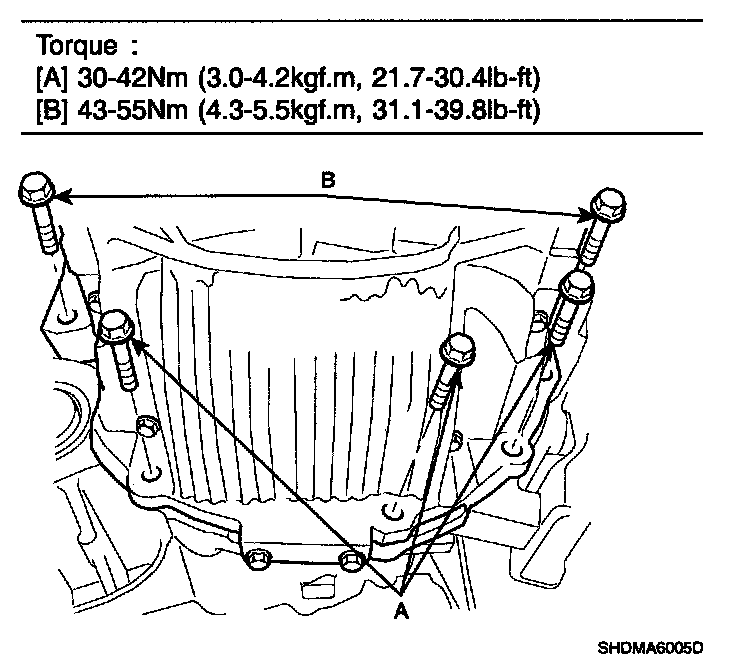

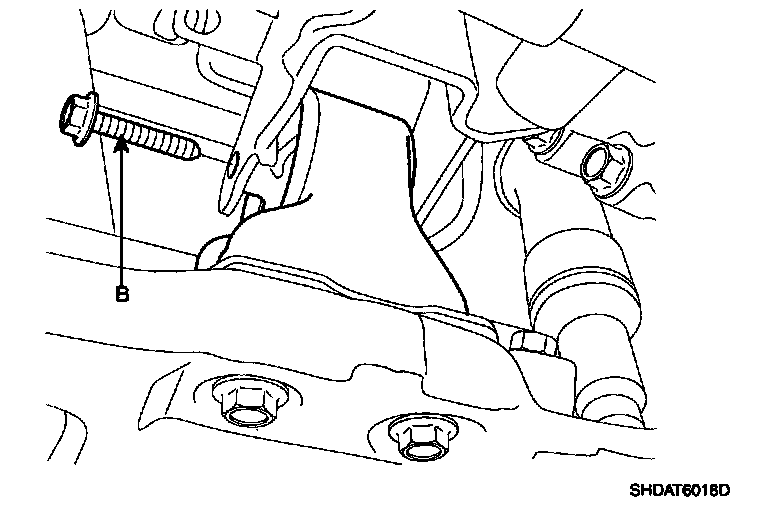

INSTALLATION1. Install the transaxle lower mounting bolts (A-3ea,B-2ea) after fitting the transaxle assembly into the engine assembly.

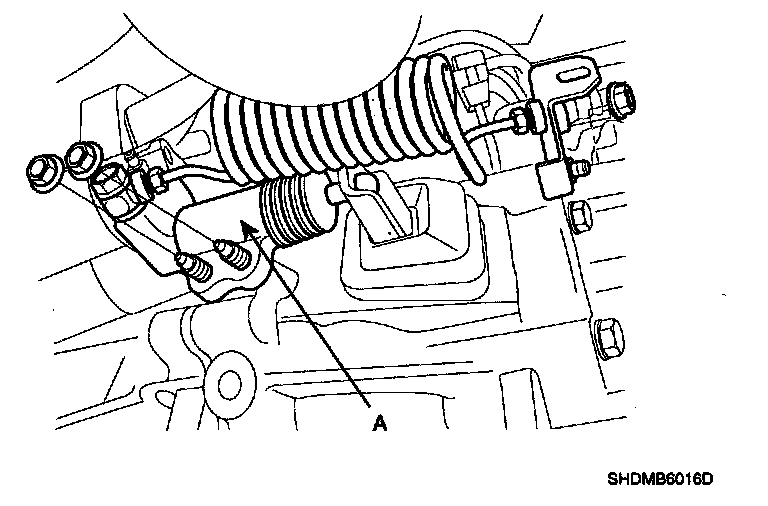

2. Install the clutch release cylinder assembly (A).

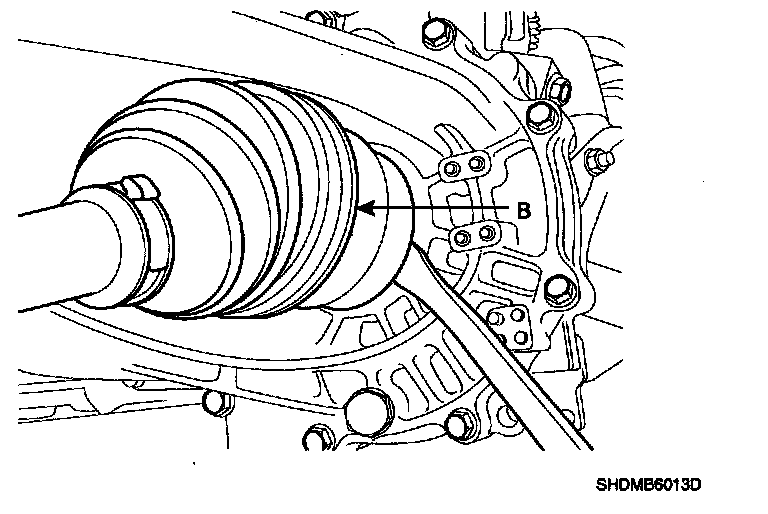

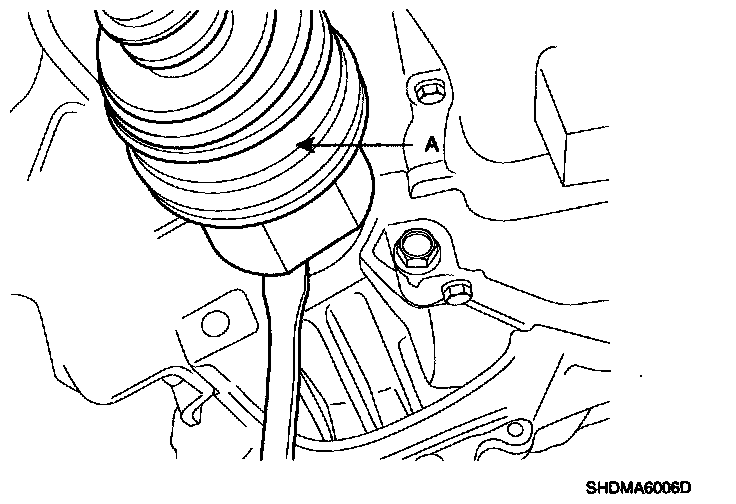

3. Connect the drive shafts (A,B) to the transaxle.

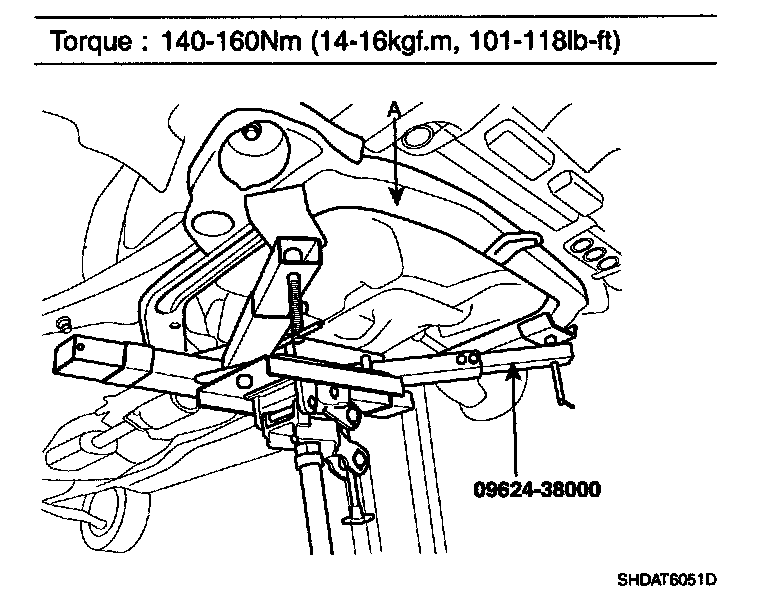

4. Supporting the sub frame (A) with a jack and the Special tool (09624-38000), install the mounting bolts.

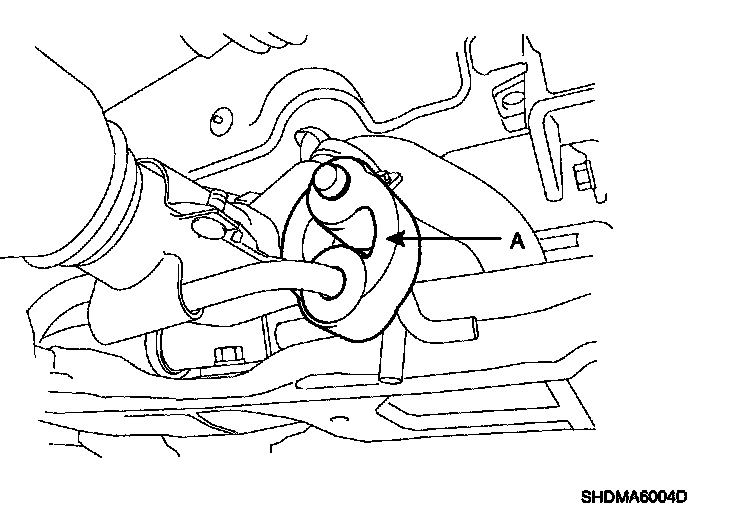

5. Install the muffler hanger rubber (A).
6. Install the roll stopper bracket bolts. (A,B)

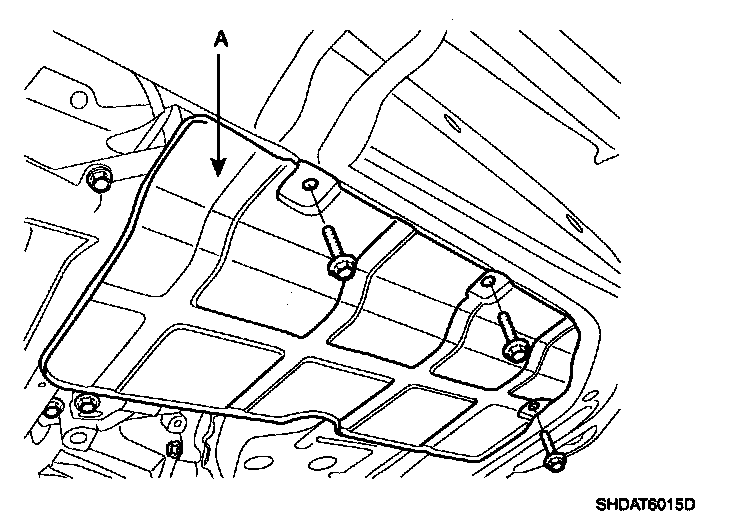

7. Install the under shield cover (A,B).
8. Install the lower arm ball joint mounting nut, the stabilizer link mounting nut, and the tie rod end mounting nut to the front knuckles.
9. Install the front wheels and tires.

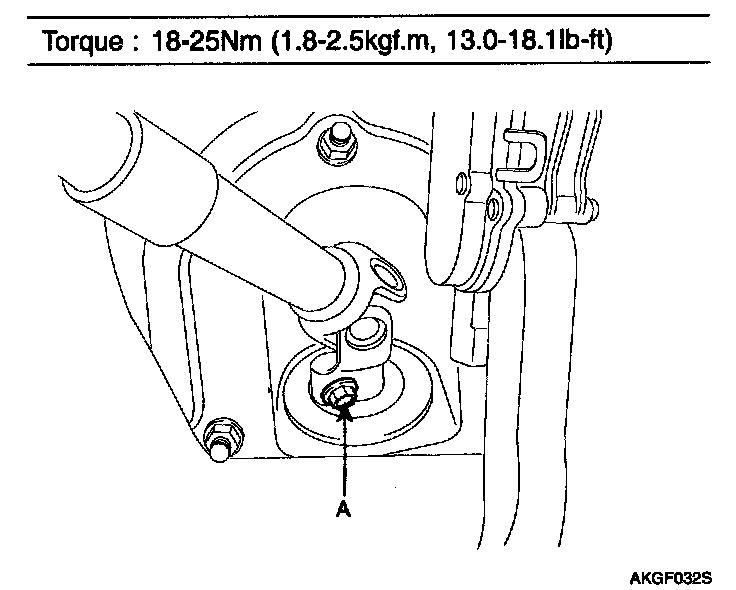

10. Install the steering joint assembly bolt (A).

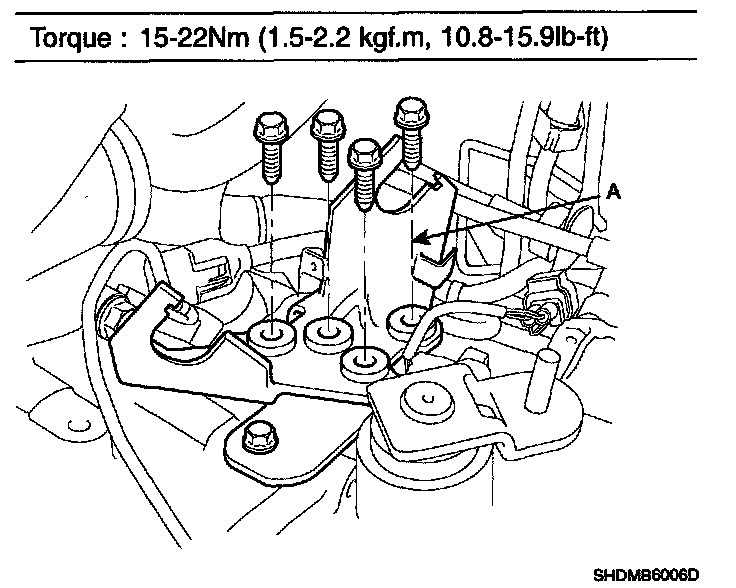

11. Install the transaxle insulator mounting bracket bolts (A).

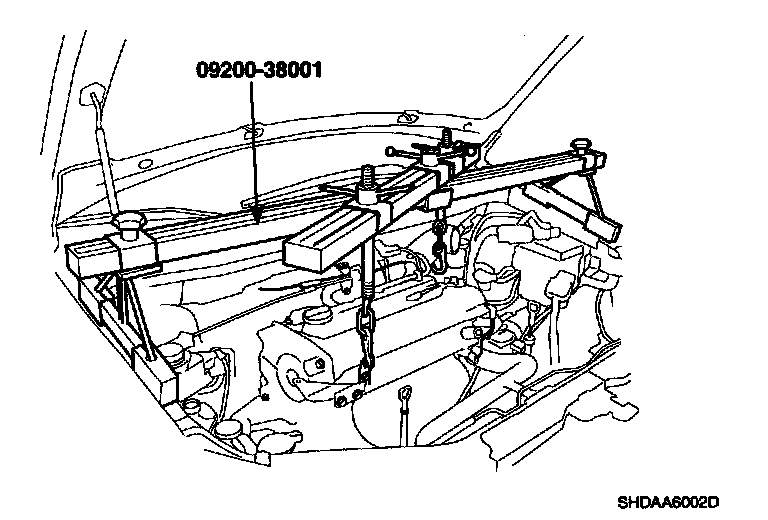

12. Remove the special tool (09200-38001).

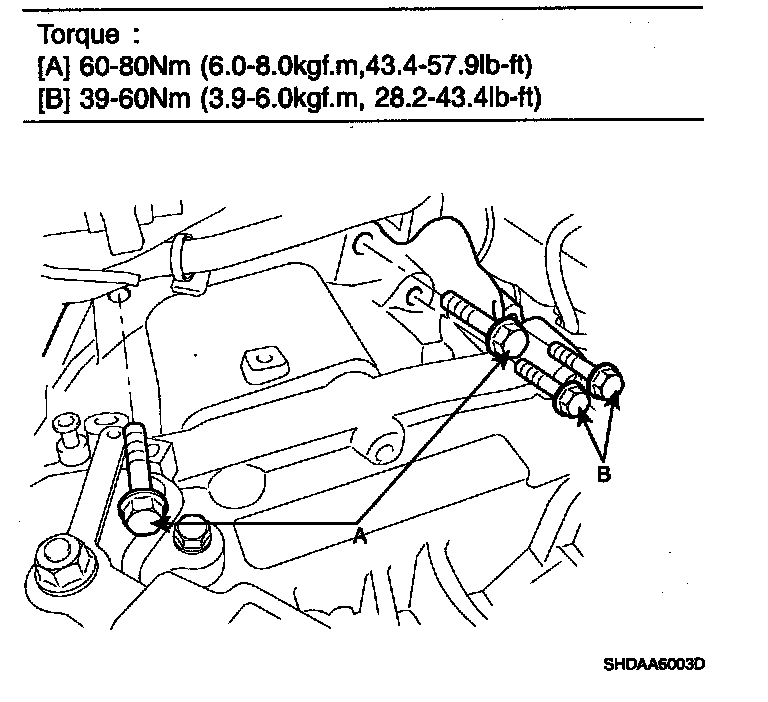

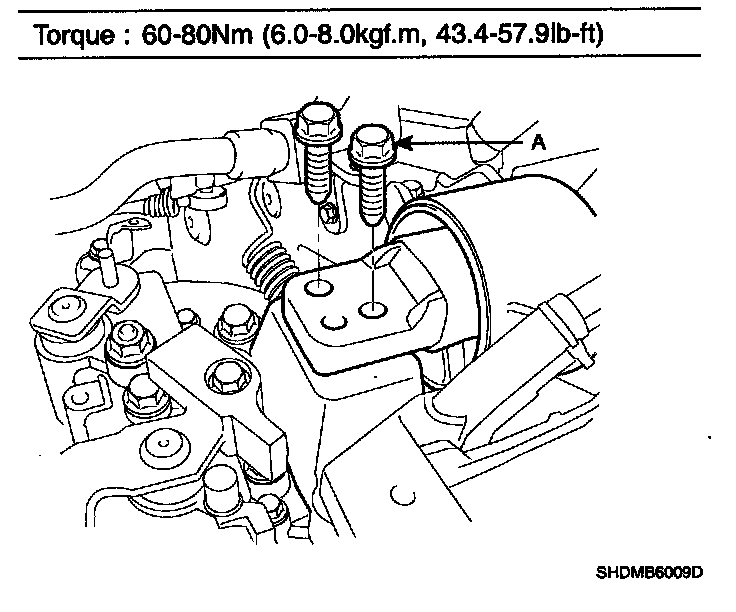

13. Install the transaxle upper mounting bolts (A-2ea) the starter motor mounting bolts. (B-2ea).
Torque:

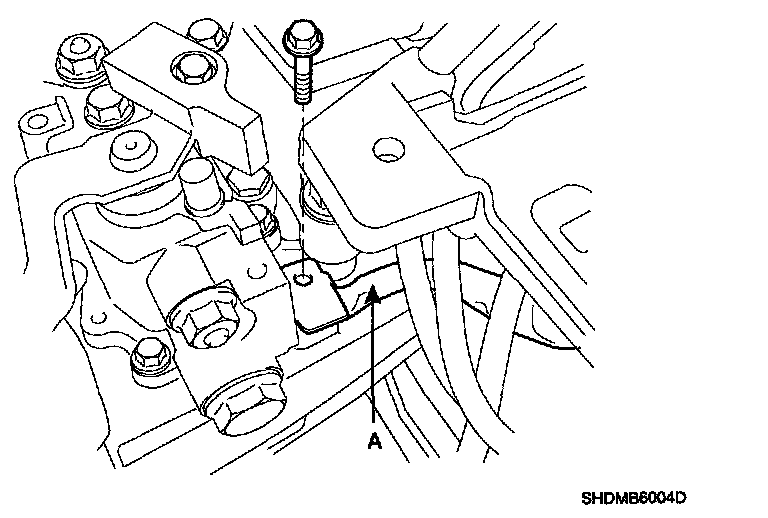

14. Install the control cable bracket (A).

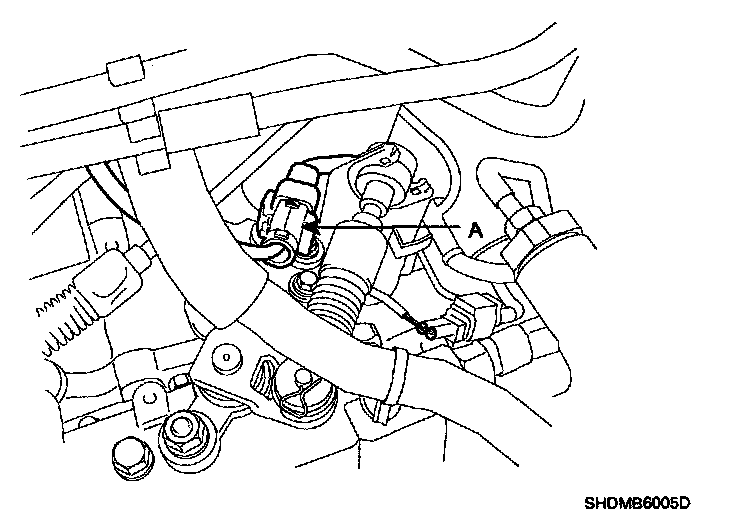

15. Connect the vehicle speed sensor and the back lamp switch integrated connector (A).

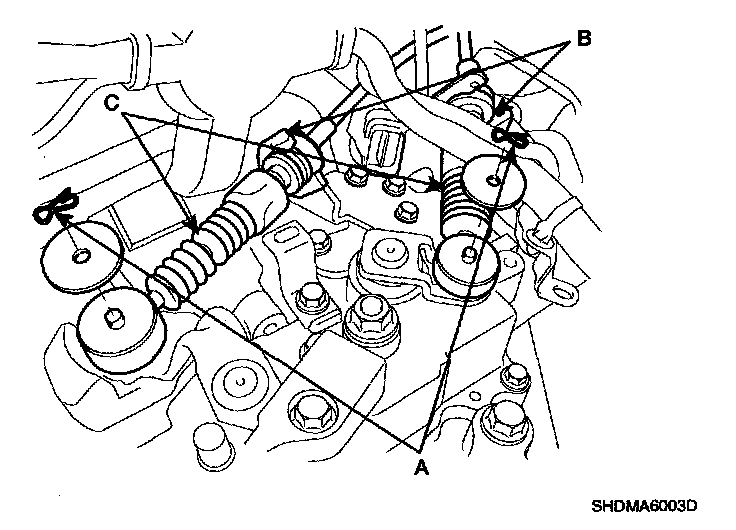

16. Install the control cable assembly (A) by installing the clips (B) and pins (C).
17. Install the ground cable (A ) to transaxle.

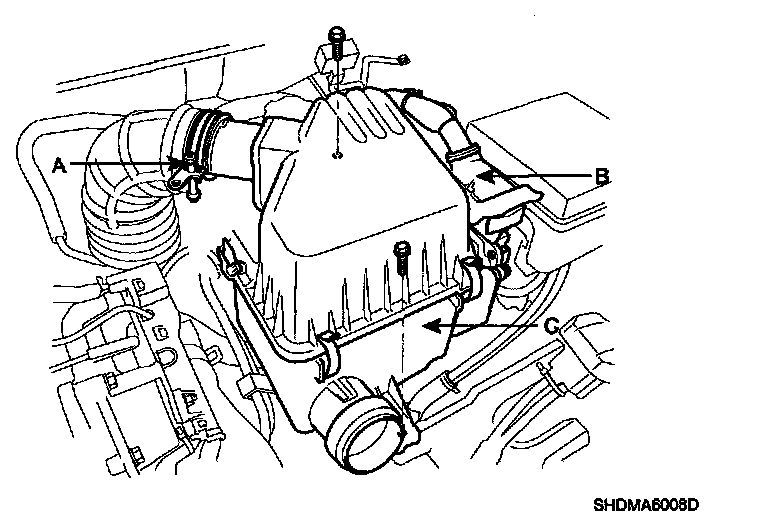

18. Install the air cleaner assembly (C) by connecting the clamp (A) and the ECM connector (B).

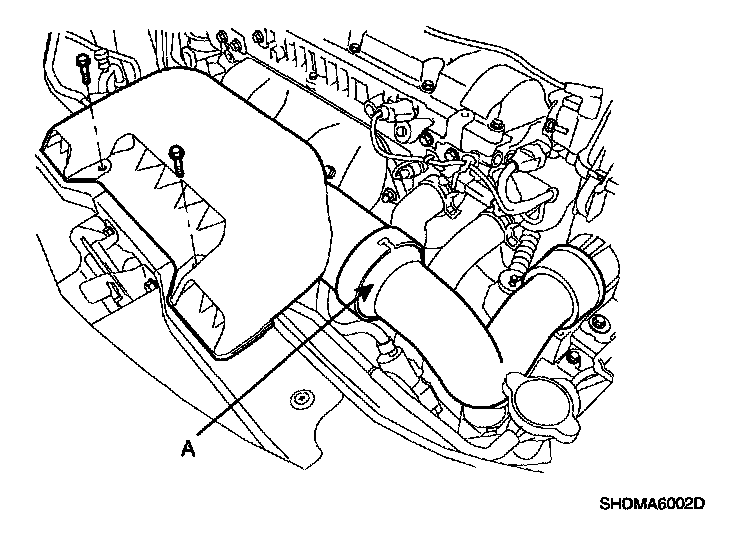

19. Install the air duct assembly (A).

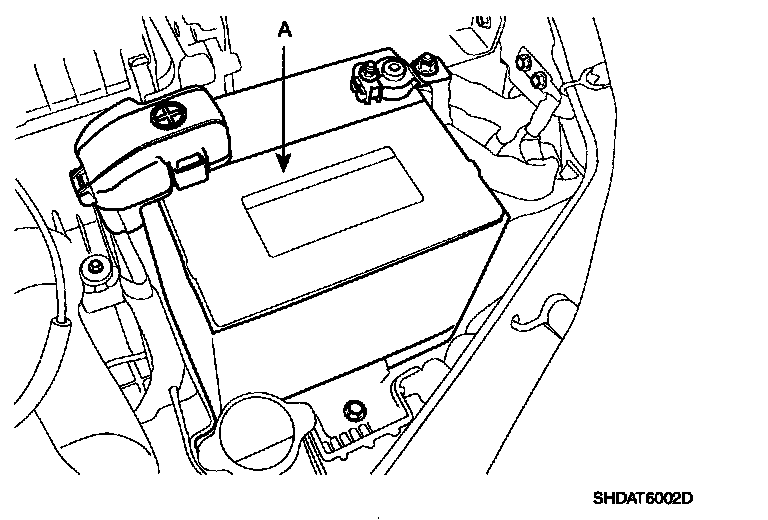

20. Install the battery (A) and the battery terminal.

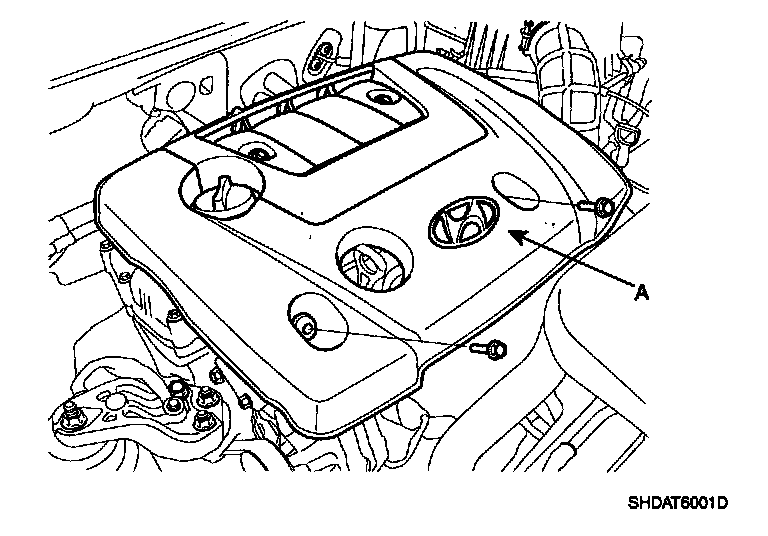

21. Install the engine cover (A).
