Home >> Hyundai >> 2007 >> Elantra L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> General Specifications

General Specifications

GENERAL SPECIFICATION

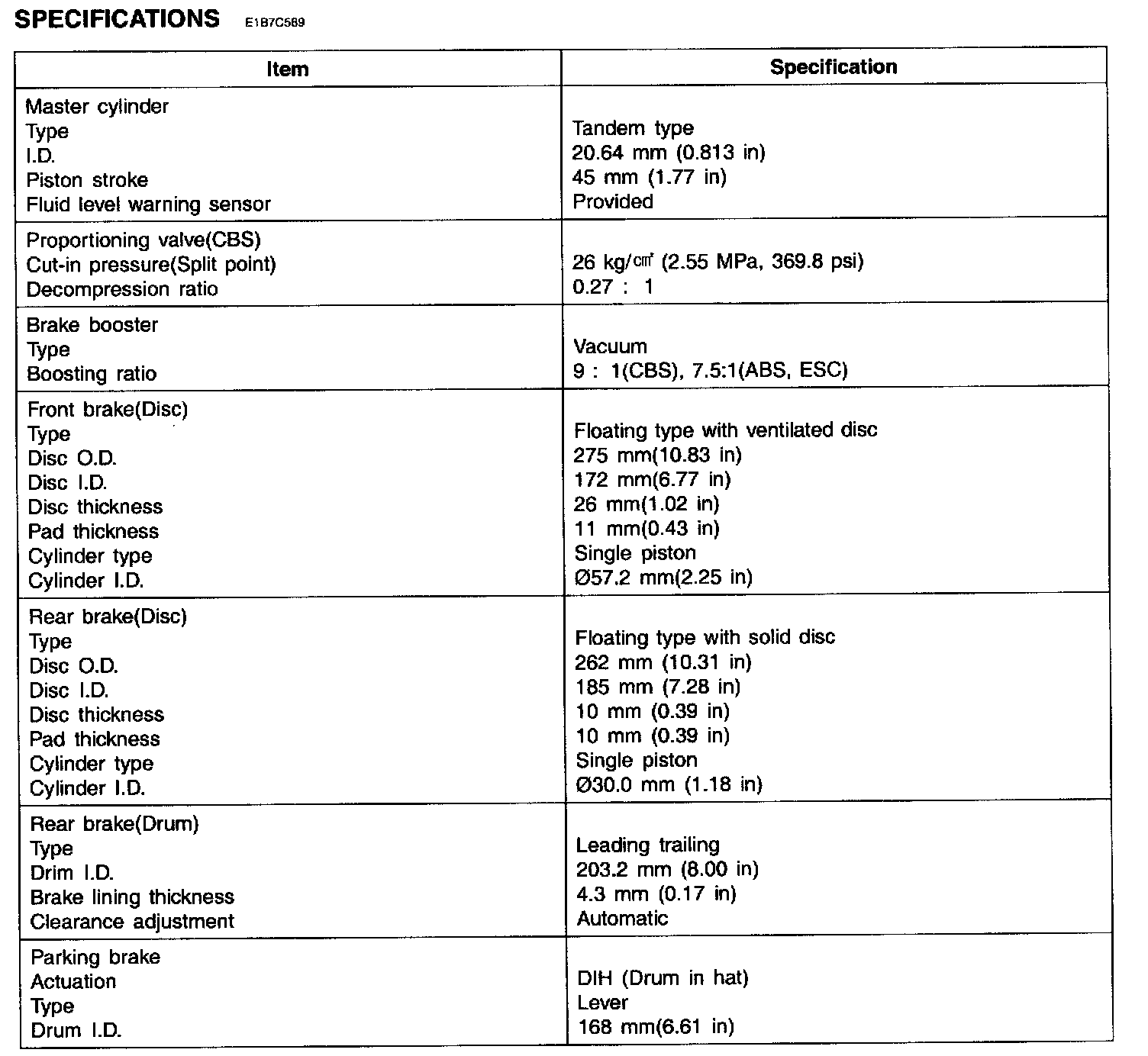

SPECIFICATIONS:





NOTE:
ABS: Anti-lock Brake System
CBS: Conventional Brake System
ESC: Electronic Stability Control system
