Evaporator Temperature Sensor / Switch: Service and Repair

EVAPORATOR TEMPERATURE SENSOR

REPLACEMENT

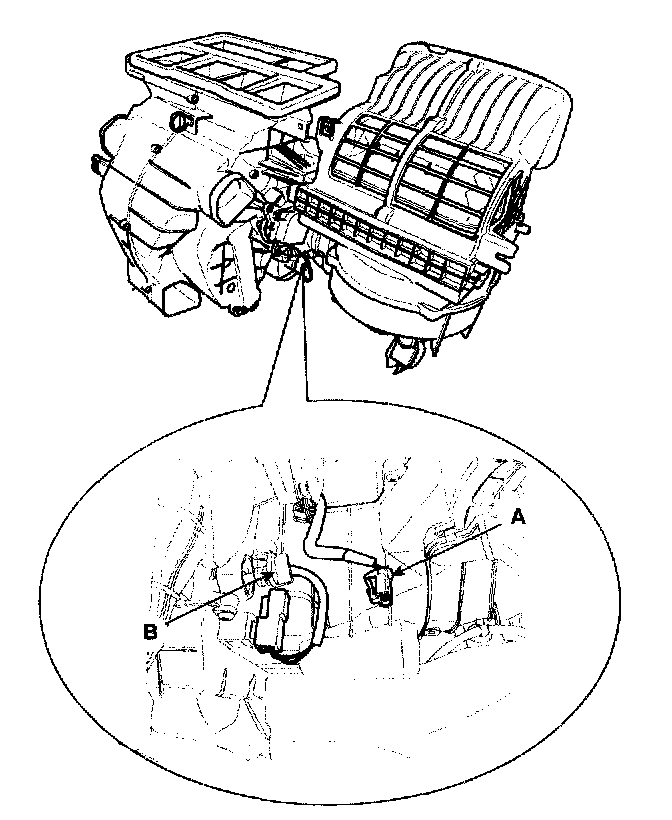

1. Disconnect the evaporator sensor connector (A).




2. Remove the evaporator temperature sensor (B), by pulling it after rotating 90° in a counter clock wise direction.
3. Installation is the reverse order of removal.
