Seat Belt Tensioner: Service and Repair

SEAT BELT PRETENSIONER

REMOVAL
1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the following parts.
- Center pillar trim, Door scuff trim.

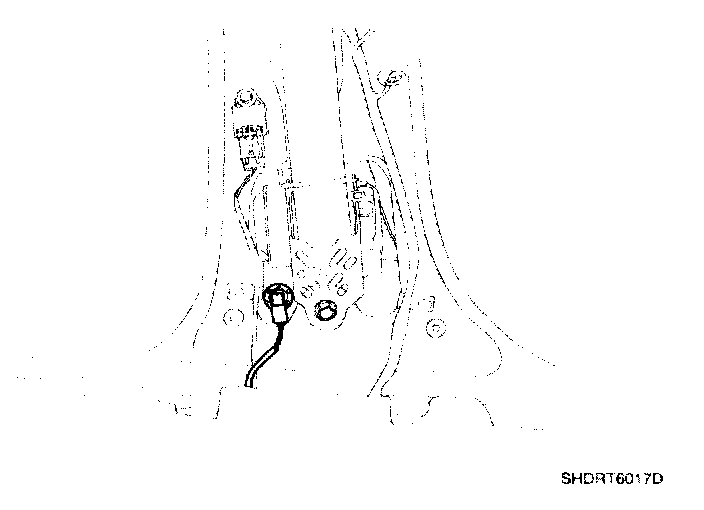

3. Disconnect the Seat Belt Pretensioner connector.
4. Remove the lower anchor bolt.
5. Remove the upper anchor bolt.
6. Loosen the Seat Belt Pretensioner mounting bolt and remove the Seat Belt Pretensioner.

INSTALLATION
1. Remove ignition key from the vehicle.
2. Disconnect the negative (-) cable from battery and wait for at least three minutes.
3. Install the Seat Belt Pretensioner (BPT) with bolt.
4. Install the upper and lower anchor bolts.

Tightening Torque (Seat Belt Anchor Bolt) : 4.0 - 5.5 kgf.m (39.2 - 53.9 N.m, 28.9 - 39.8 lb.ft)

5. Install the following parts.
- Center pillar trim, Door scuff trim

6. Install the front seat assembly.
7. Reconnect the negative battery cable.
8. After installing the Seat Belt Pretensioner (BPT), confirm proper system operation.
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
