Power Door Lock Relay: Testing and Inspection
POWER DOOR LOCK RELAYINSPECTION

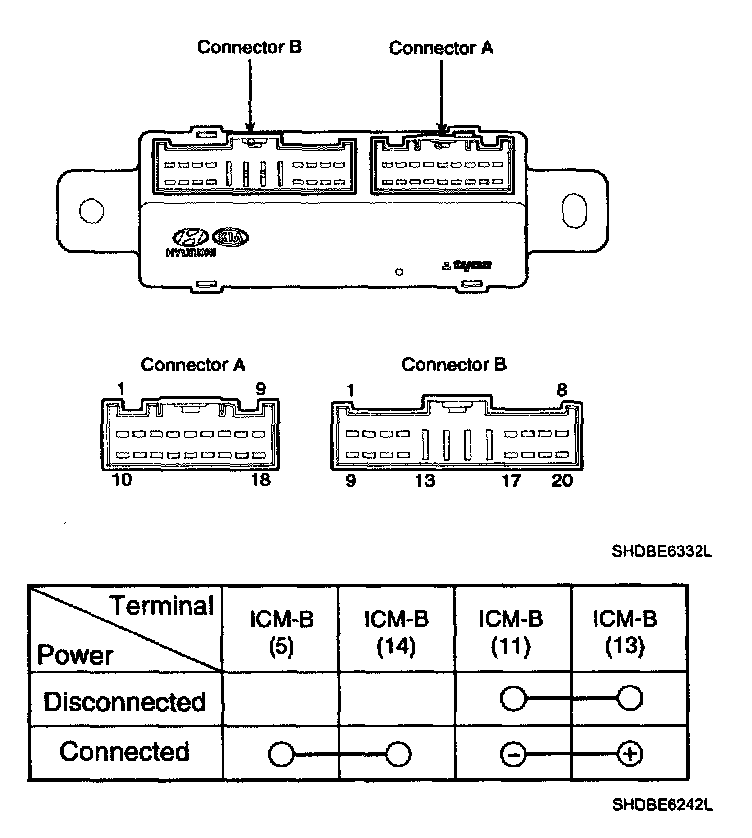

DOOR LOCK
1. Disconnect the negative (-) battery terminal.
2. Remove the ICM relay box.
3. Check for continuity between the terminals.
4. There should be continuity between the No.5 terminal and No.14 terminals in the ICM-B when power and ground are connected to the No.11 terminal and No.13 terminal in the ICM-B.
5. There should be no continuity between the No.5 terminal and No.14 terminal in the I/P-D when power is disconnected.

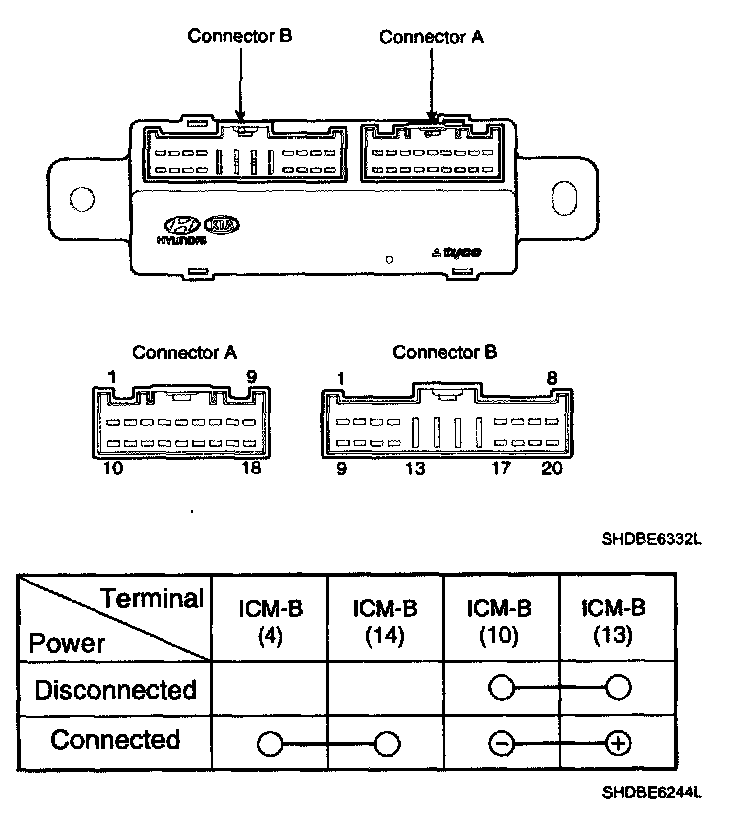

DOOR UNLOCK
1. Disconnect the negative (-) battery terminal.
2. Remove the ICM relay box.
3. Check for continuity between the terminals.
4. There should be continuity between the No.4 terminal and No.14 terminal in the ICM-B when power and ground are connected to the No.10 terminal and No.13 terminal in the ICM-B.
5. There should be no continuity between the No.14 terminal and No.14 terminal in the ICM-B when power is disconnected.

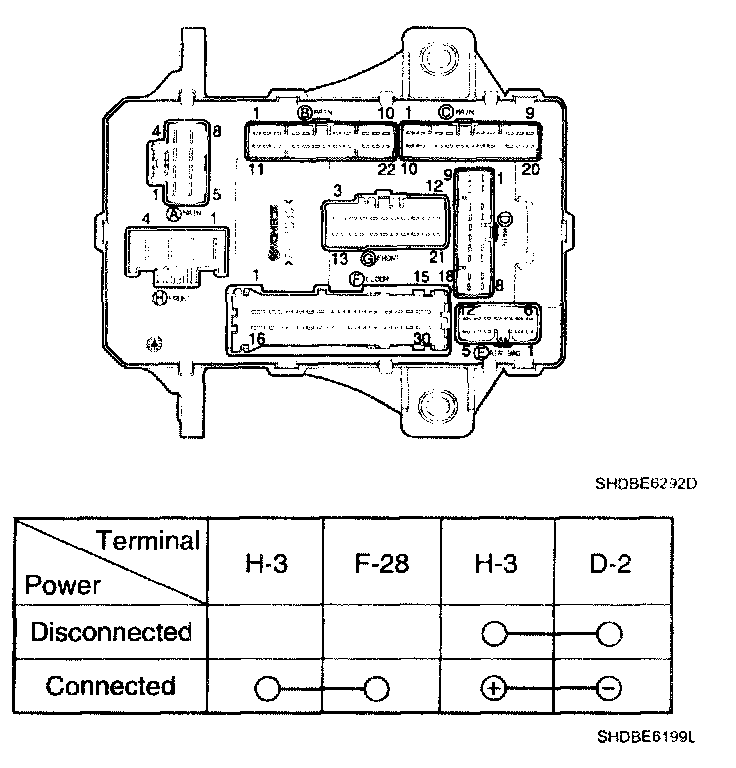

TRUNK LID OPEN
1. Disconnect the negative (-) battery terminal.
2. Remove the passenger compartment junction box.
3. Check for continuity between the terminals.
4. There should be continuity between the No.3 terminal in the I/P-H and the No.2 terminal in the I/P-D when power and ground are connected to the No.3 terminal in the I/P-H and the No.28 terminal in the I/P-F.
5. There should be no continuity between the No.3 terminal in the I/P-H and the No.2 terminal in the I/P-D when power and ground are connected to the No.3 terminal in the I/P-H and the No.28 terminal in the I/P-F.
