Daytime Running Lamp Resistor: Testing and Inspection
DRL RESISTERINSPECTION

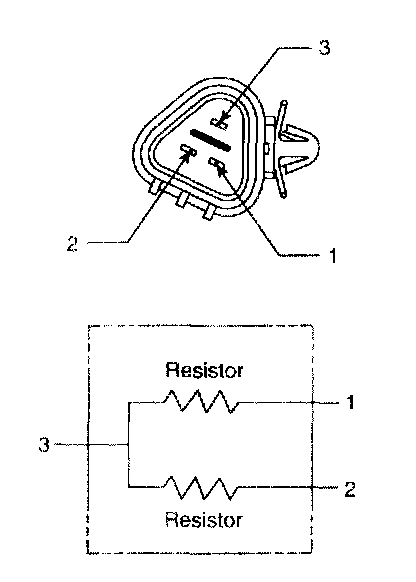

1. Check for continuity and measure the resistance between No. 1 and No.3 terminals.
Standard value : 2.0 ohms ± 5%
2. If resistance is not as specified, replace the DRL resistor.
