Instrument Cluster / Carrier: Service and Repair

INSTRUMENT CLUSTER

REMOVAL
1. Disconnect the negative (-) battery terminal.




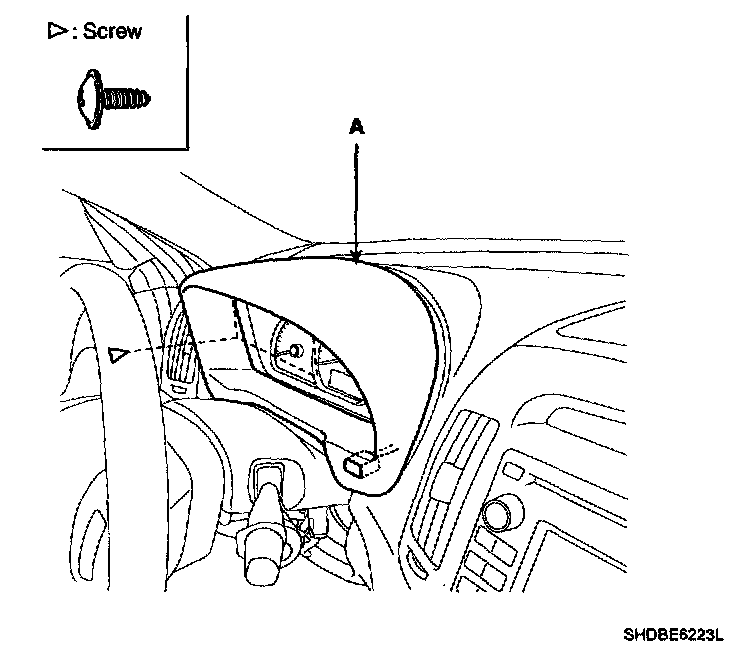

2. Remove the center facia panel (A) after loosening 2 screws.
3. Disconnect trip switch connector.




4. Pull out the cluster (A) from the housing after removing 4 screws.
5. Disconnect the cluster connecters and then remove the cluster.

INSTALLATION
1. Connect the cluster connector.
2. Install the cluster assembly.
3. Connect the trip switch connector.
4. Install the center facia panel.
