Floor Harness / Air Bag Harness

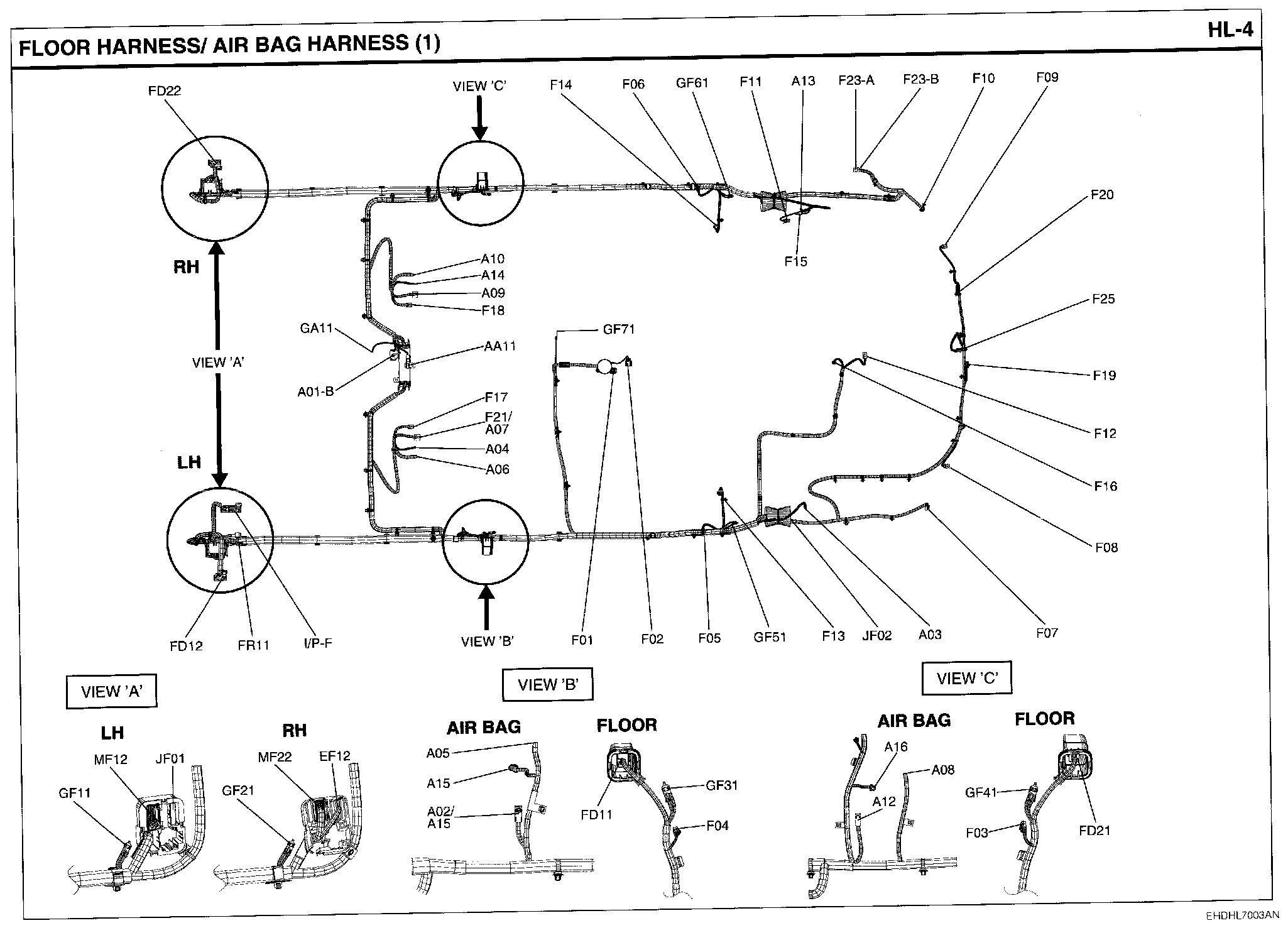

Floor Harness/ Air Bag Harness (1):



Floor Harness/ Air Bag Harness (2):
