Engine Control Module

Engine Control Module (ECM):

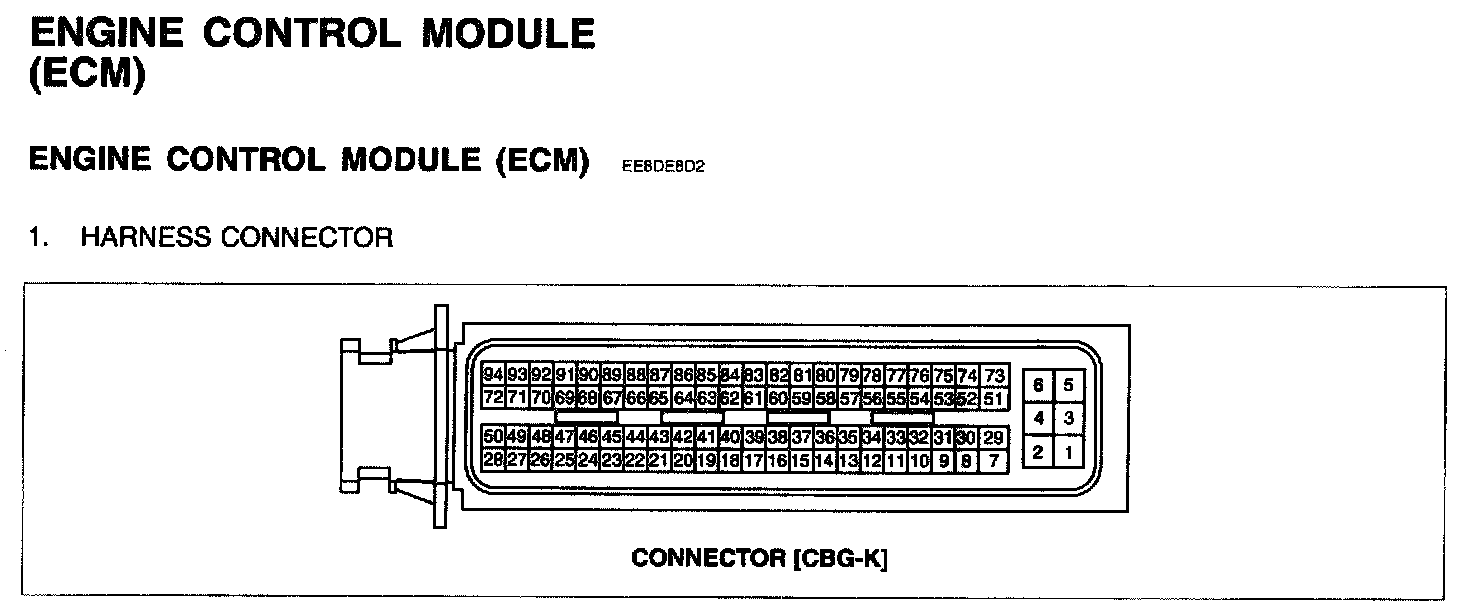

ECM HARNESS CONNECTOR

Engine Control Module (ECM) - Connector[CBG-K] Part 1:

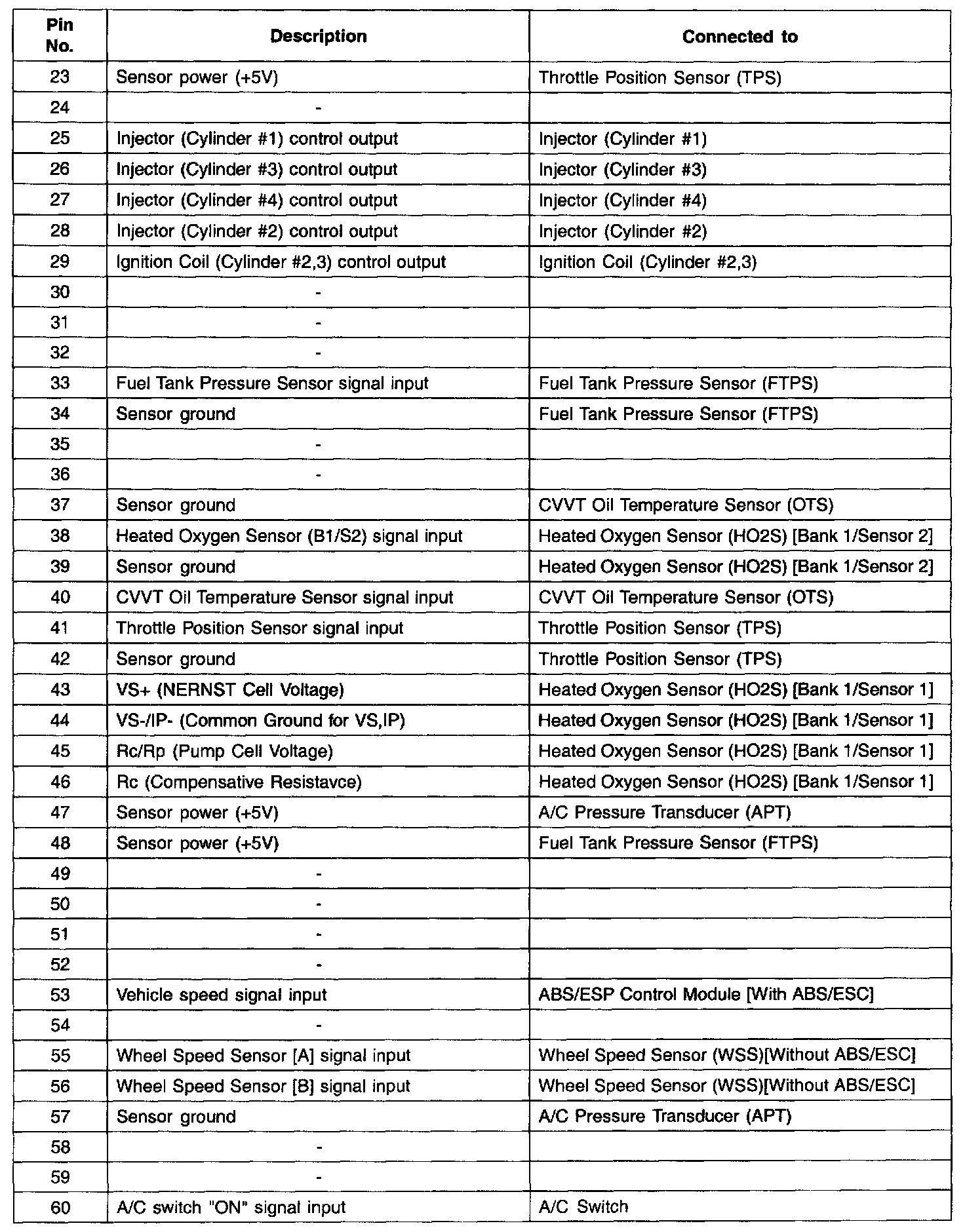

Engine Control Module (ECM) - Connector[CBG-K] Part 2:

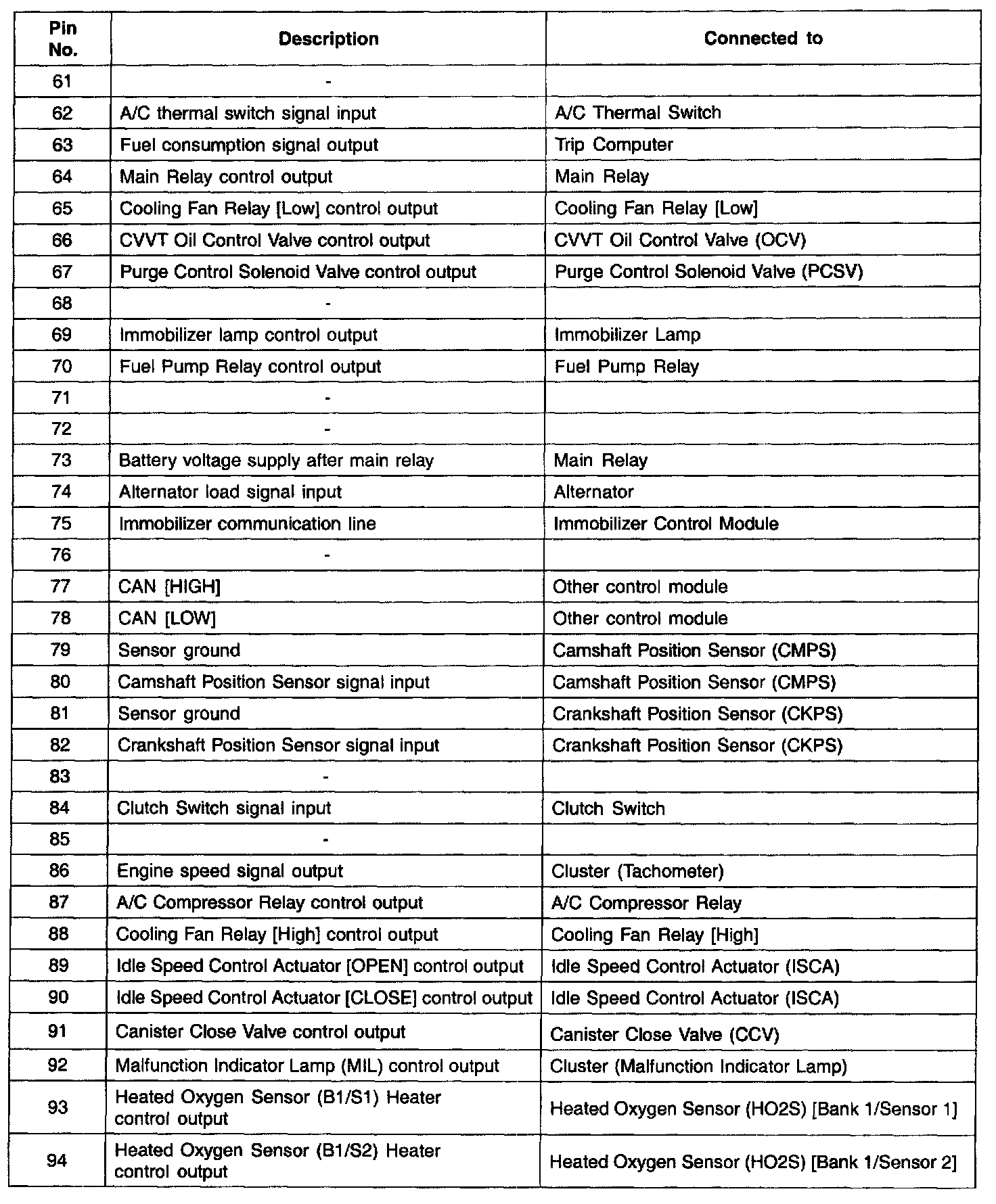

Engine Control Module (ECM) - Connector[CBG-K] Part 3:

ECM TERMINAL FUNCTION - CONNECTOR

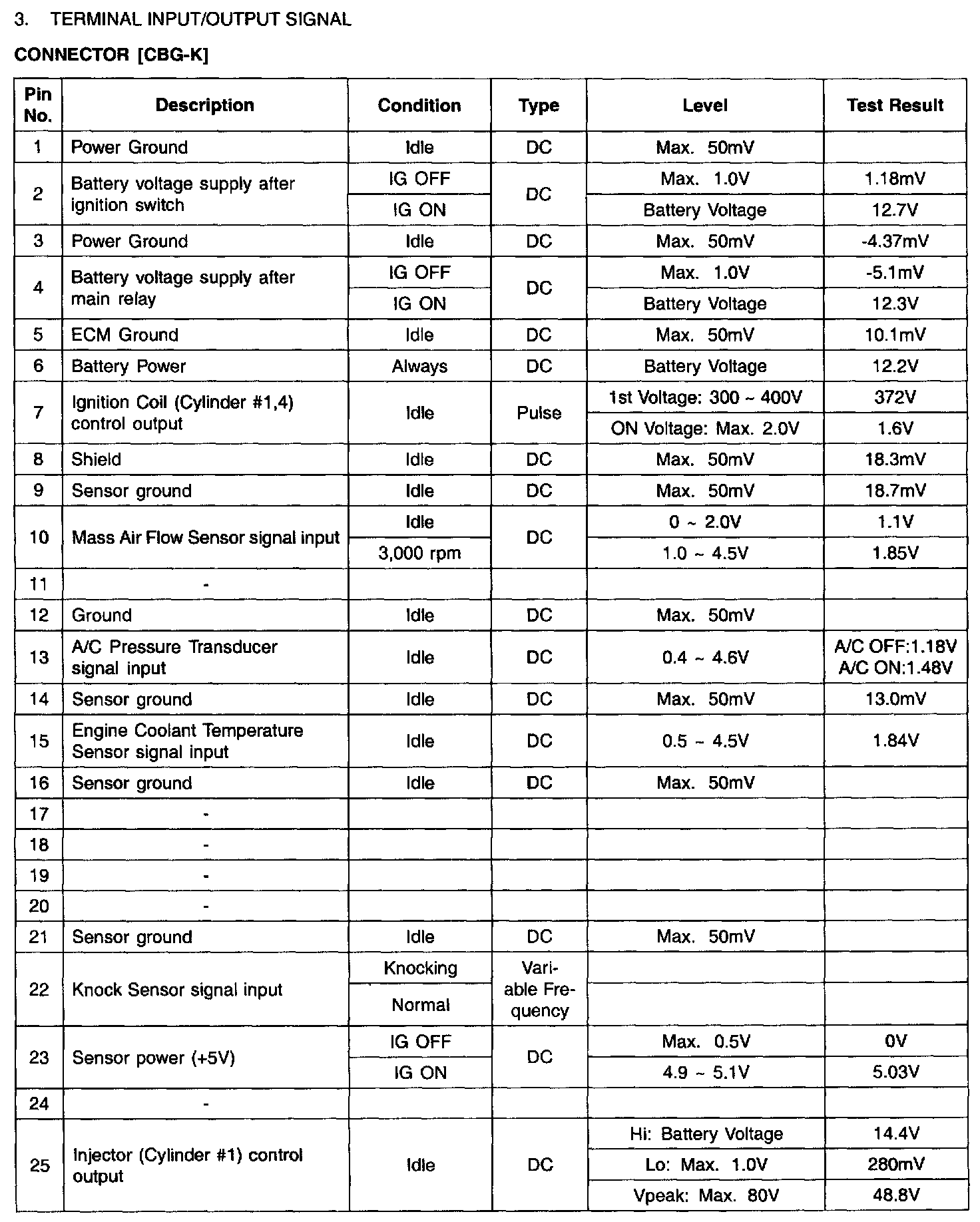

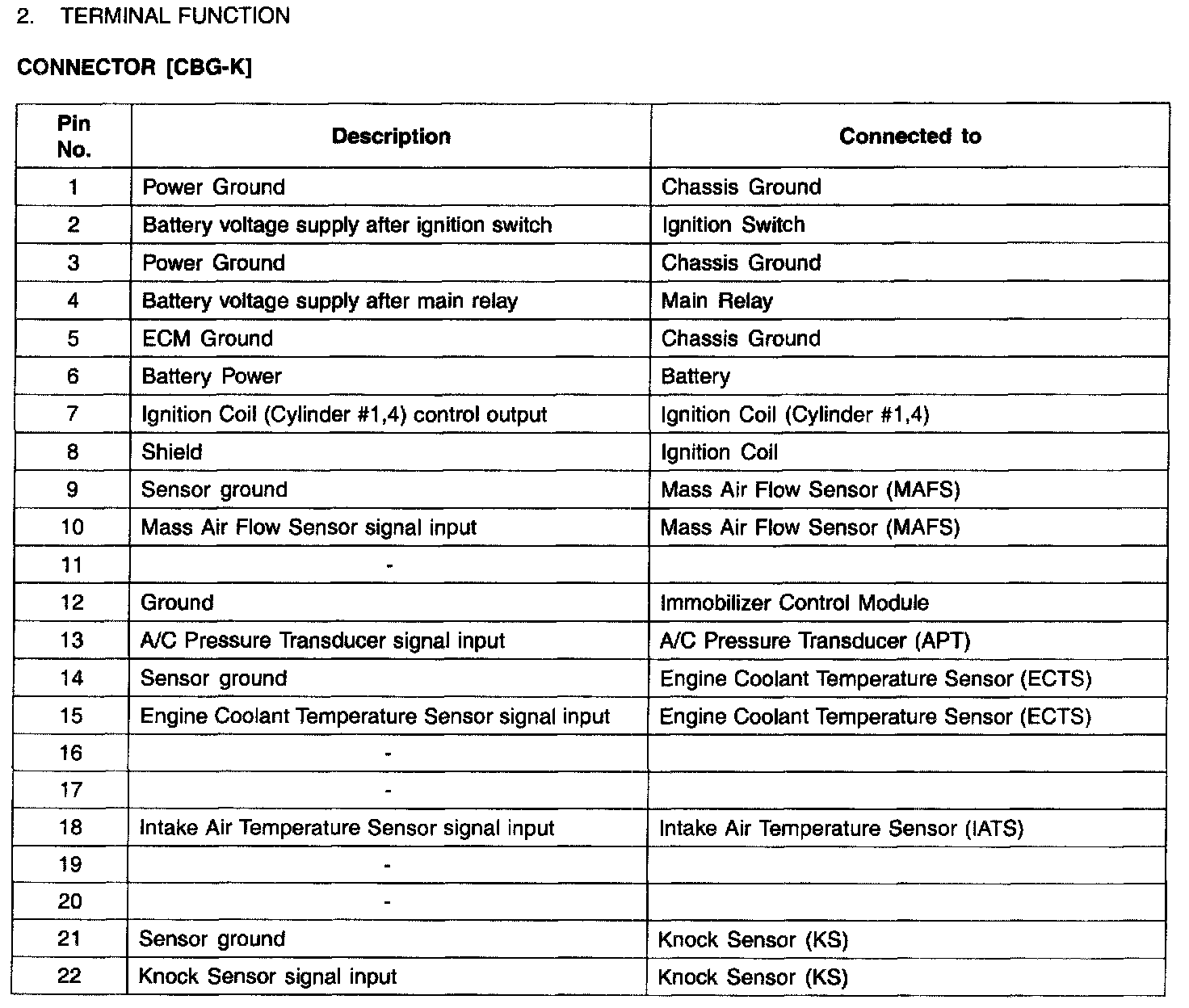

Terminal Input/Output Signal Connector [CBG-K] Part 1:

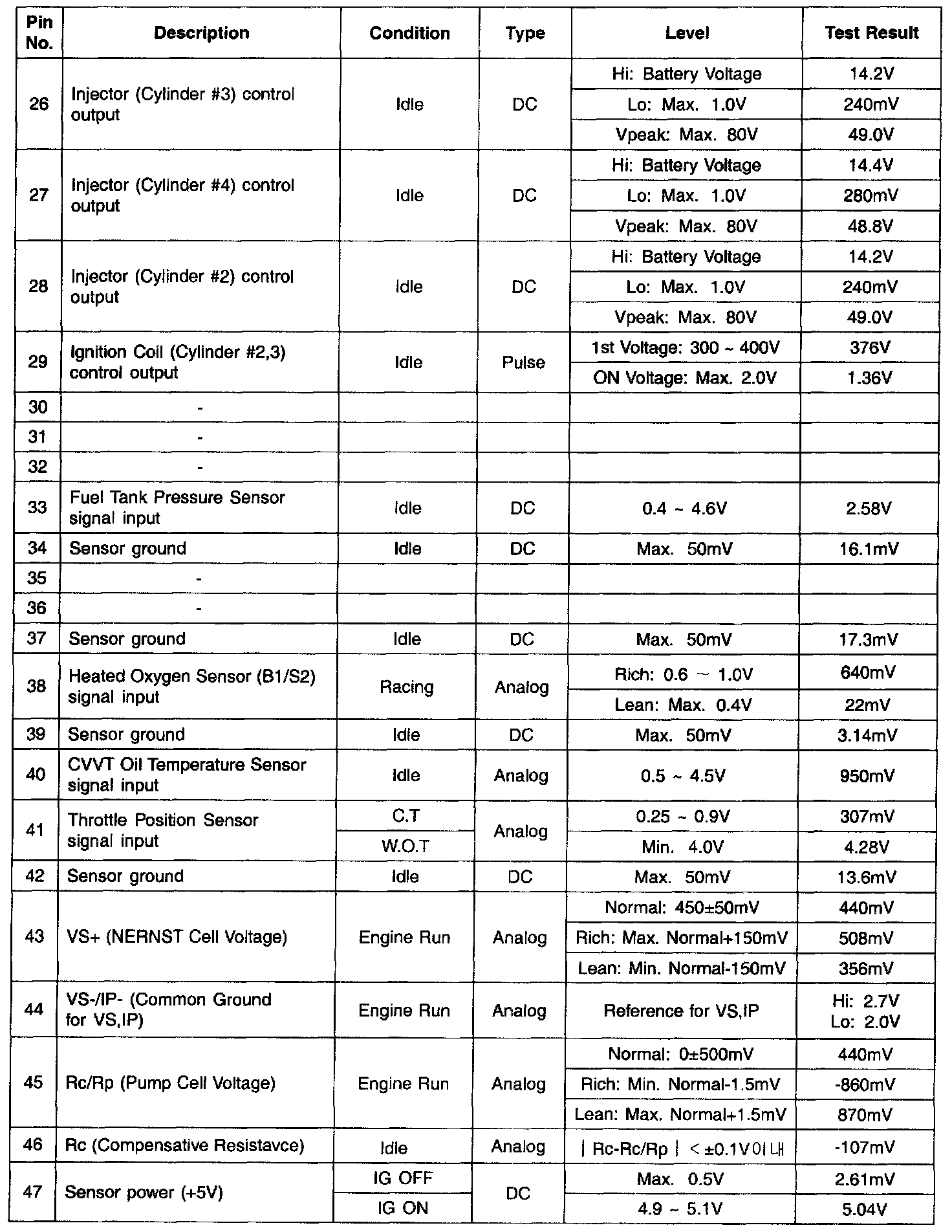

Terminal Input/Output Signal Connector [CBG-K] Part 2:

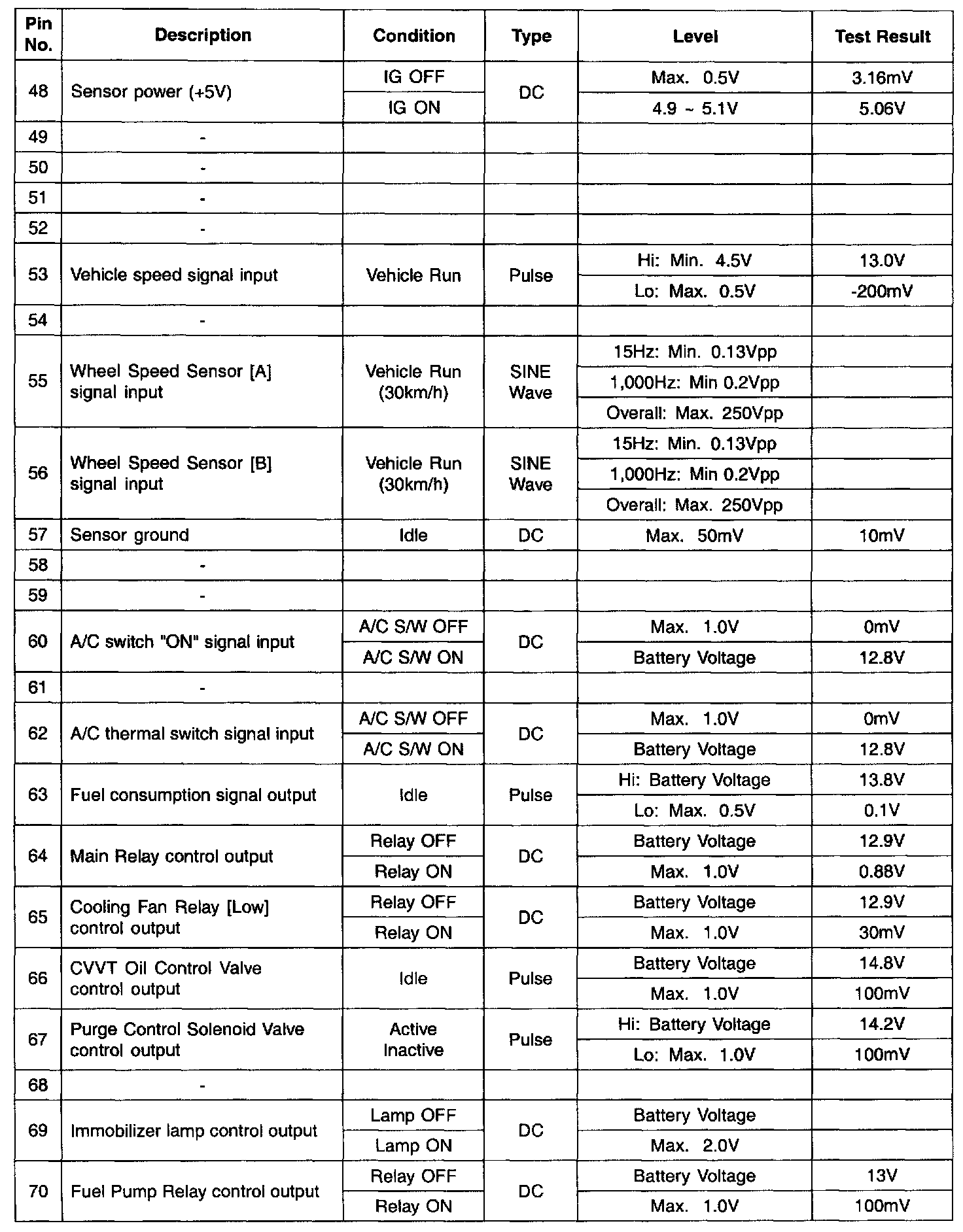

Terminal Input/Output Signal Connector [CBG-K] Part 3:

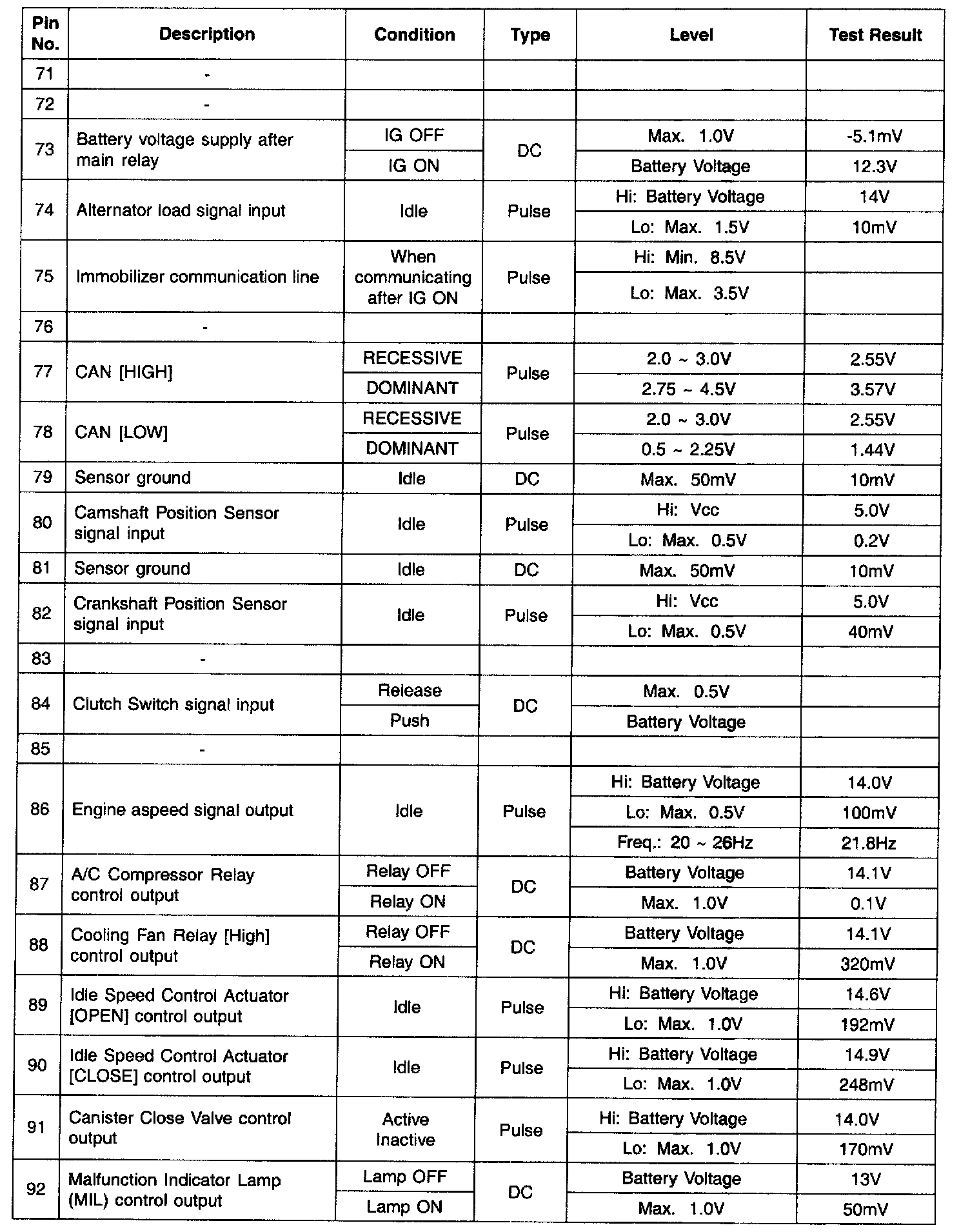

Terminal Input/Output Signal Connector [CBG-K] Part 4:

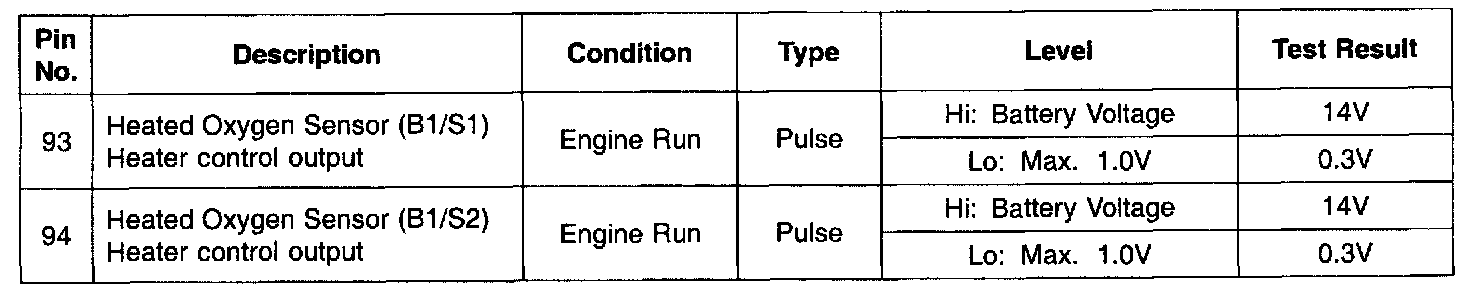

Terminal Input/Output Signal Connector [CBG-K] Part 5:

ECM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR
