Communication With Any System Is Not Possible

Communication with Scan-Tool is not possible
(Communication with any system is not possible)

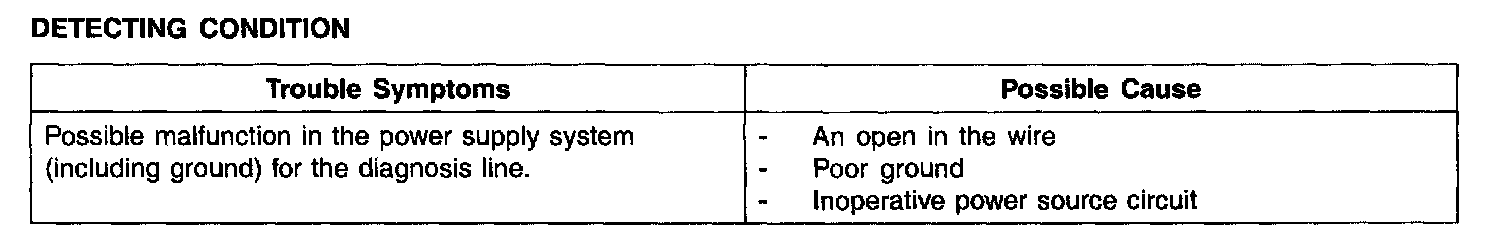

DETECTING CONDITION





INSPECTION PROCEDURES
CHECK THE POWER SUPPLY CIRCUIT FOR THE DIAGNOSIS

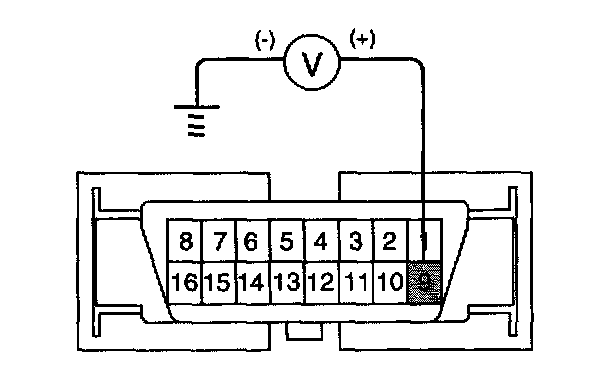

Measure the voltage between terminal 9 of the data link connector and body ground.
Specification: approximately B+
Is voltage within specification?
YES
> Check the ground circuit for the diagnosis.
NO
> Repair an open in the wire. Check and replace fuse (15A) from the engine compartment junction block.





CHECK THE GROUND CIRCUIT FOR THE DIAGNOSIS

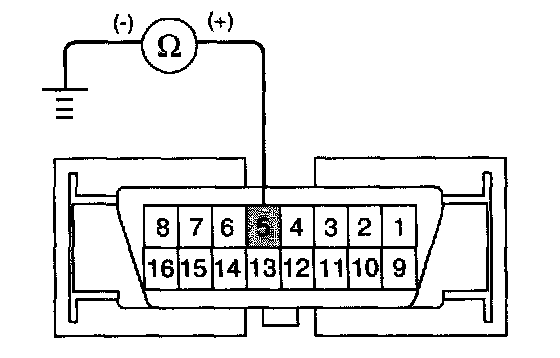

Check for continuity between terminal 5 of the data link connector and body ground.
Is there continuity?
NO
> Repair an open in the wire between terminal 5 of the data link connector and ground point.
