Home >> Hyundai >> 2007 >> Elantra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Sensor Output on Scan Tool (ABS)

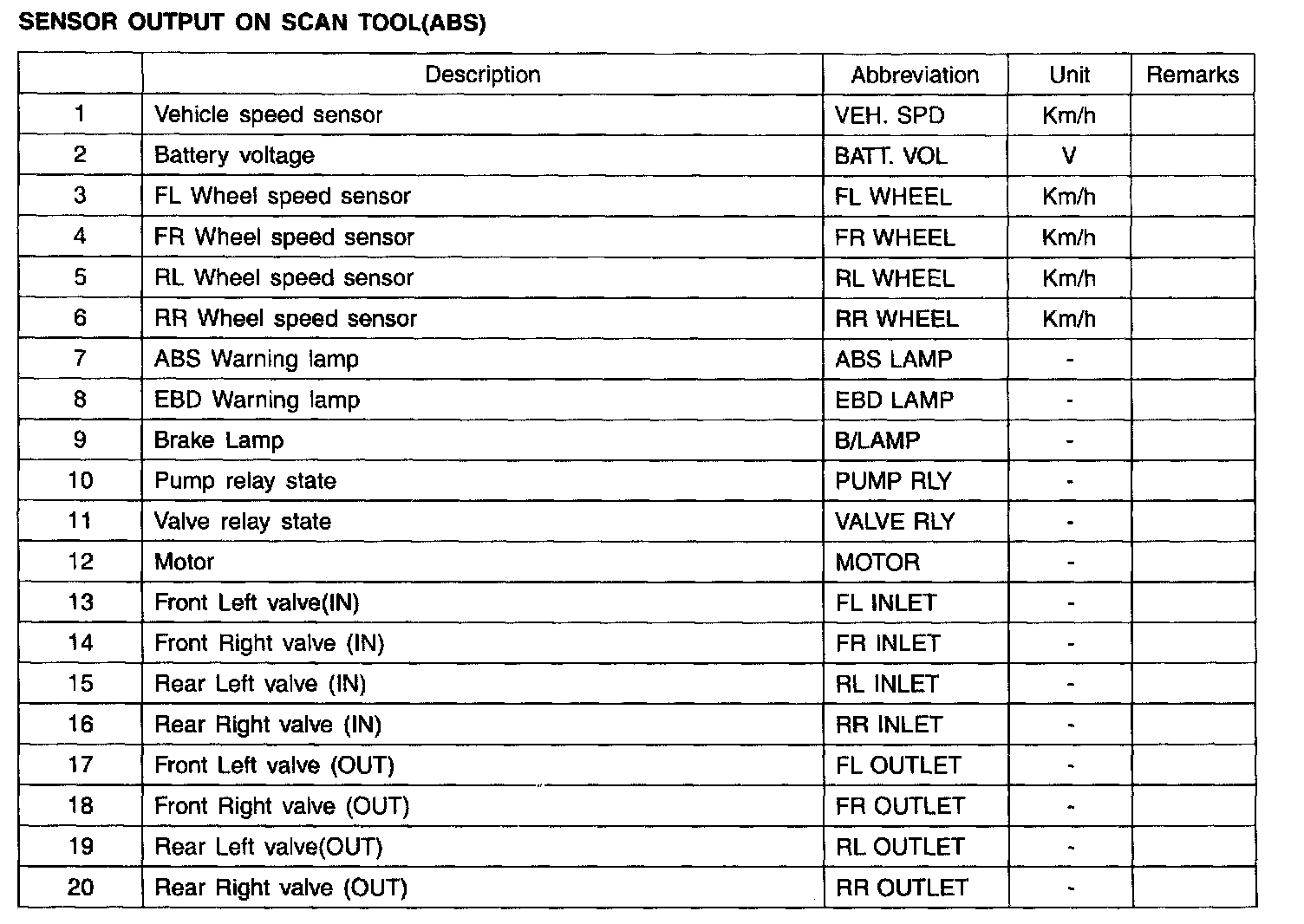

Sensor Output on Scan Tool (ABS)

SENSOR OUTPUT ON SCAN TOOL (ABS):
