Headliner

HEADLINER REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it
- with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items.
- Front seat, rear seat assembly.
- Door scuff trim.
- Front pillar trim.
- Center pillar trim.
- Rear pillar trim.
- Overhead console.
- Room lamp.
- Sunvisor.
- Assist handle.

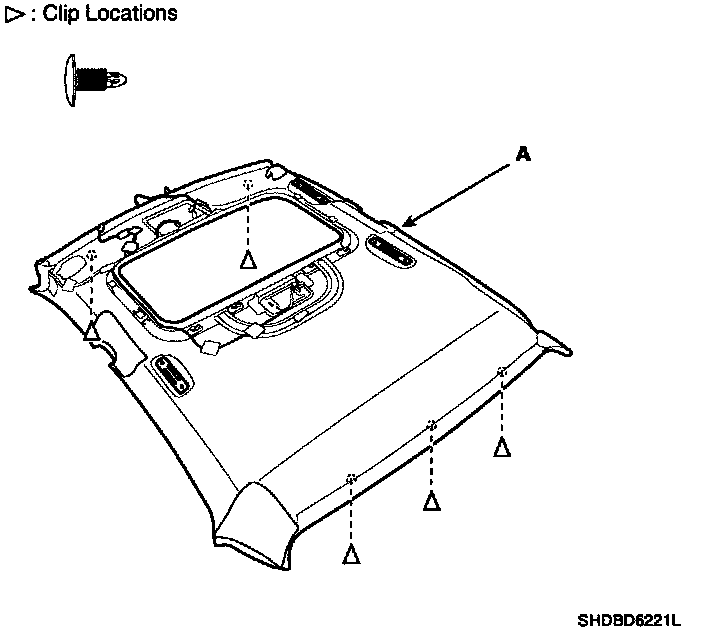

2. Remove the roof trim (A).

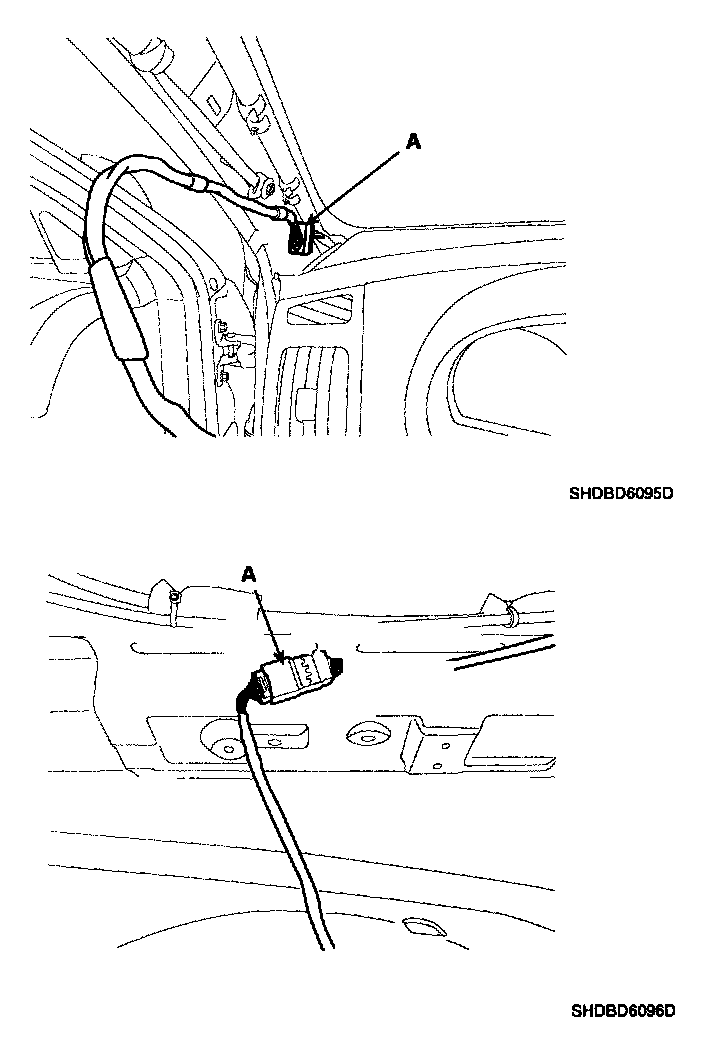

3. Disconnect the connector (A).






4. Installation is the reverse of removal.
