Speaker: Service and Repair

SPEAKERS

REMOVAL

FRONT SPEAKER
1. Remove the front door trim.




2. Remove the front speaker (A) after removing 4 rivets.

REAR SPEAKER
1. Remove the rear door trim.




2. Remove the rear speaker (A) after removing 4 rivets.

EXTERNAL AMPLIFIER
1. Remove the right side trunk trim and disconnecting the connector.

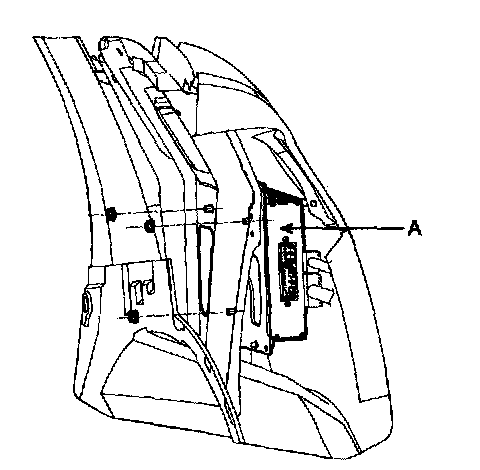

2. Remove the external amplifier (A) after loosening the 3 bolts.

TWEETER SPEAKER

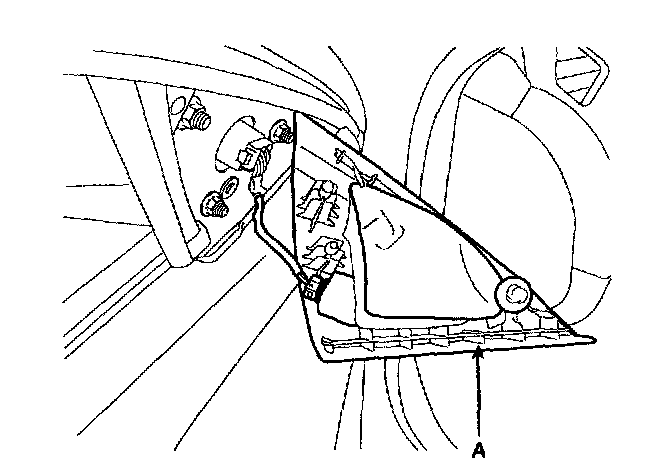

1. Remove the front door delta cover (A).




2. Remove the tweeter speaker (A) after disconnecting the connector.

SDARS ROOF ANTENNA
1. Remove the rear headlining.

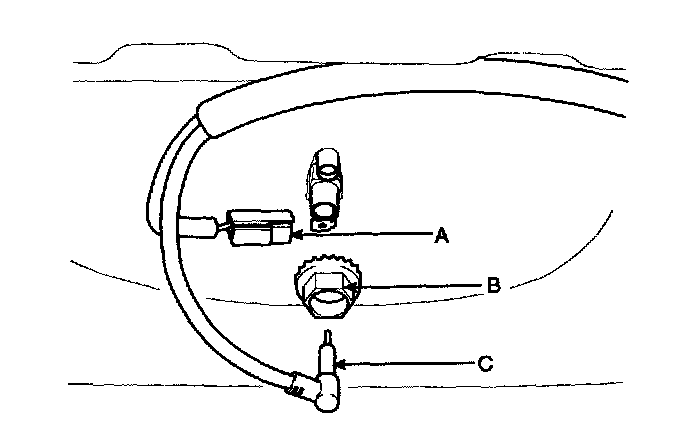

2. Remove the nut (B) from roof inner panel and disconnect the feeder cable (C) and connector (A).




3. Remove the SDARS roof antenna.

SET TOP BOX (FOR SDARS)
1. Remove the glove box.
2. Remove the glove box housing.




3. Remove the set top box (A) after disconnecting connector and cable, the connector and cable.

INSTALLATION

FRONT SPEAKER
1. Install the front speaker.
2. Install the front door trim.

REAR SPEAKER
1. Install the rear speaker.
2. Install the rear door trim.

TWEETER SPEAKER
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front door delta cover.

EXTERNAL AMPLIFIER
1. Install the external amplifier and connect the external amplifier connector.
2. Install the right side trunk trim.

SDARS ROOF ANTENNA
1. Insert the SDARS roof antenna securely into the roof panel hole
2. Install the nut to the roof antenna.
3. Connect the feeder cable to the roof antenna.
4. Install the headlining.

SET TOP BOX (FOR SDARS)
1. Install the set top box and connect the set top box connector and cable.
2. Install the glove box housing.
3. Install the glove box.
