Radio/Stereo: Service and Repair

AUDIO UNIT

REMOVAL
1. Disconnect the negative (-) battery terminal.




2. Remove the crash pad center facia panel (A).

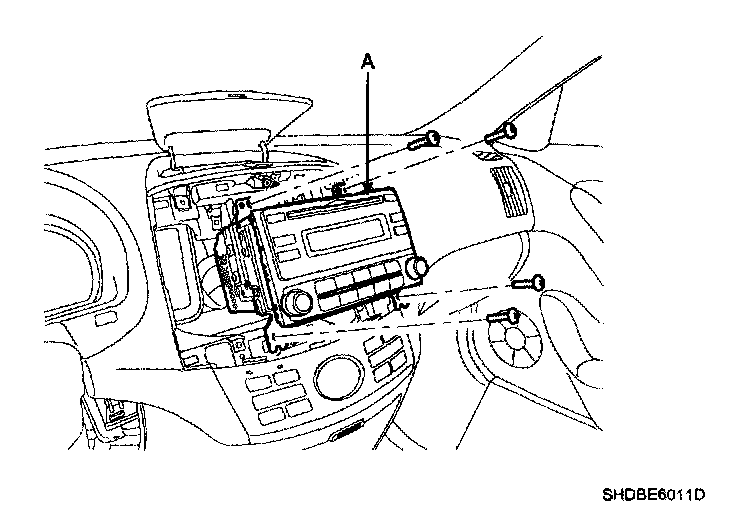

3. Remove the mounting bolts then remove the unit (A).




4. Remove the audio unit after disconnecting the audio connectors and cable(A).

INSTALLATION
1. Connect the audio unit connectors and cable.
2. Install the audio unit.
3. Install the crash pad center facia panel.
4. Check the audio system.
