Relay Box: Application and ID

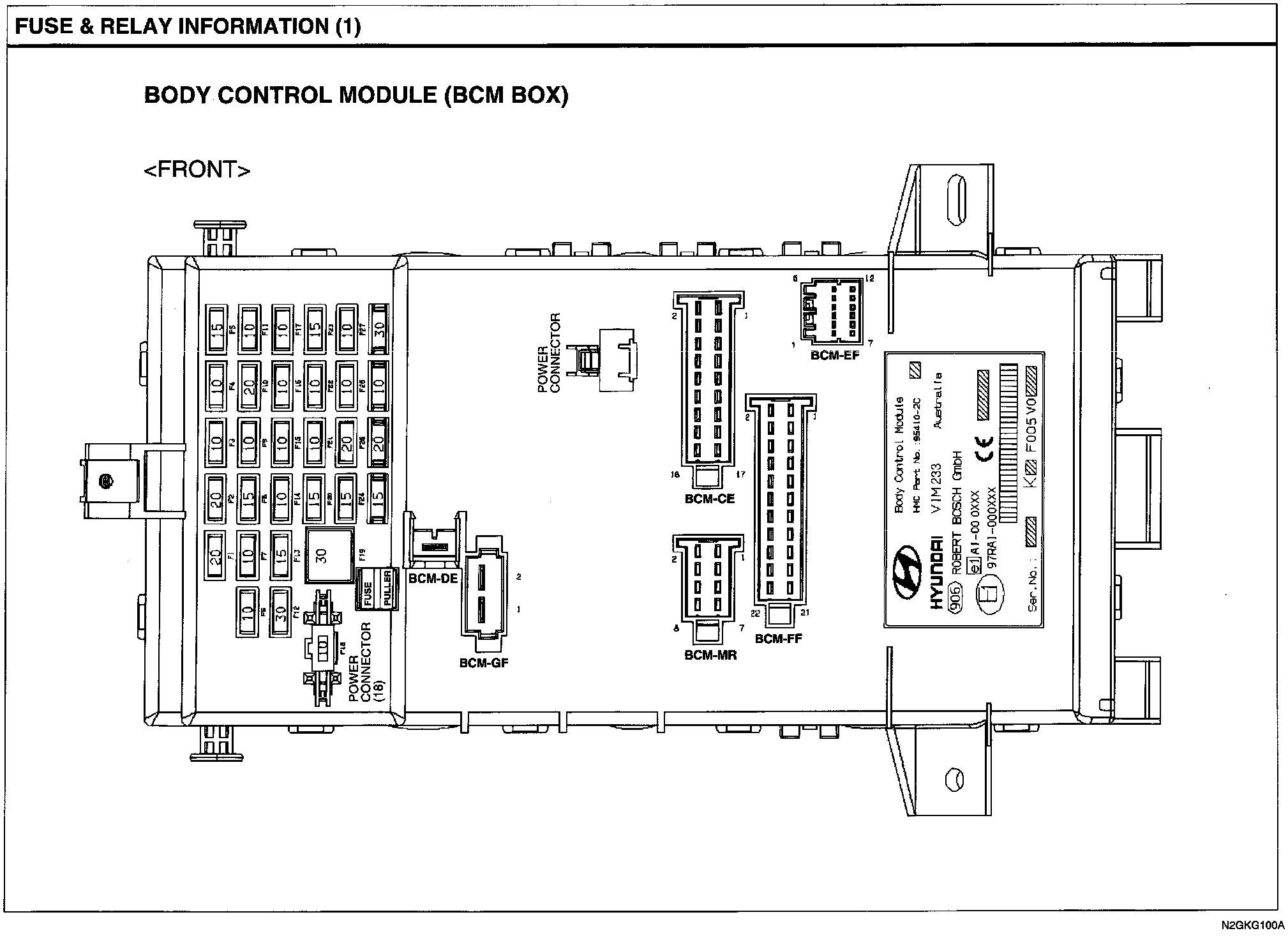

Body Control Module View:

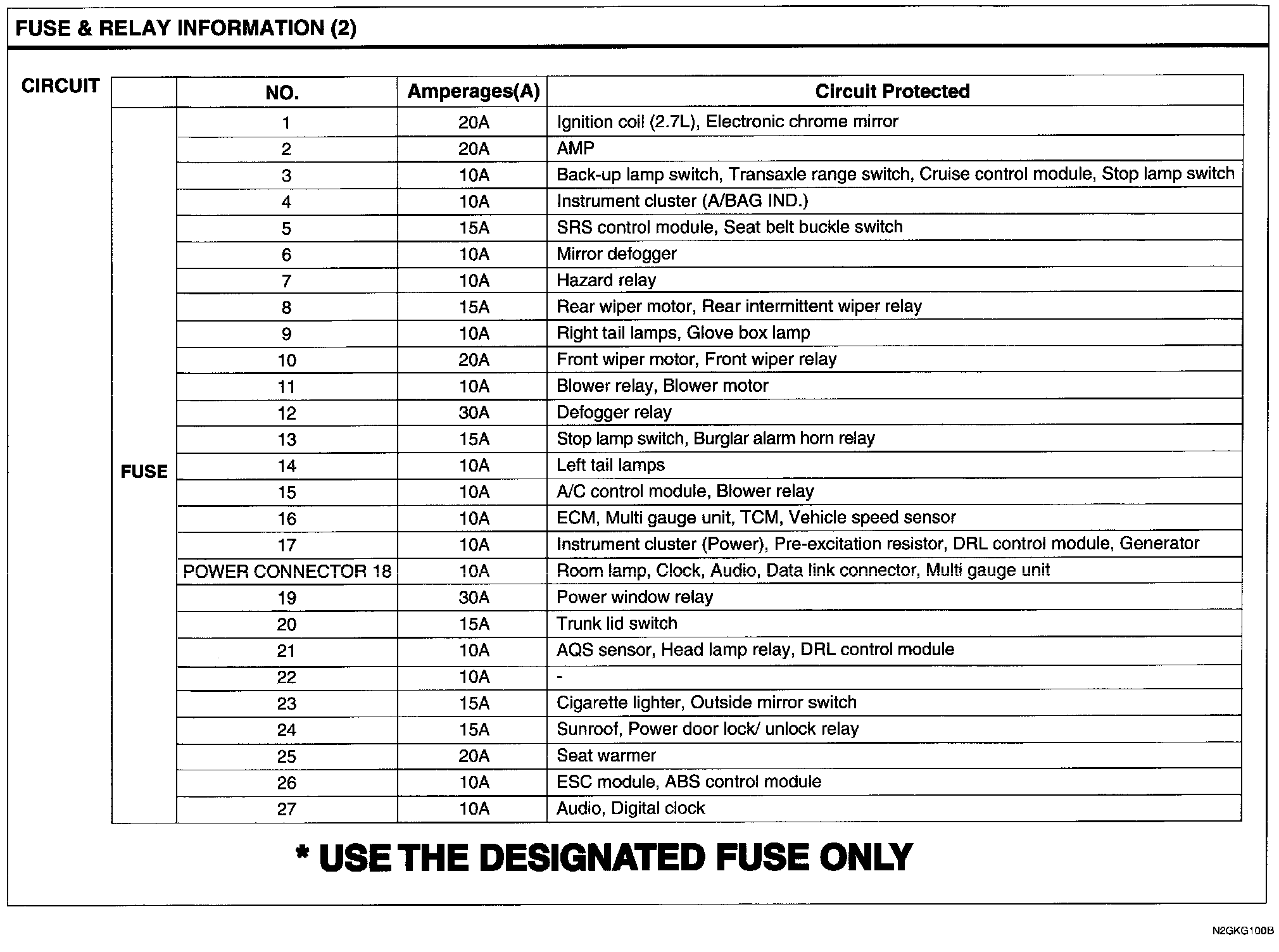

Body Control Module Circuit Details:

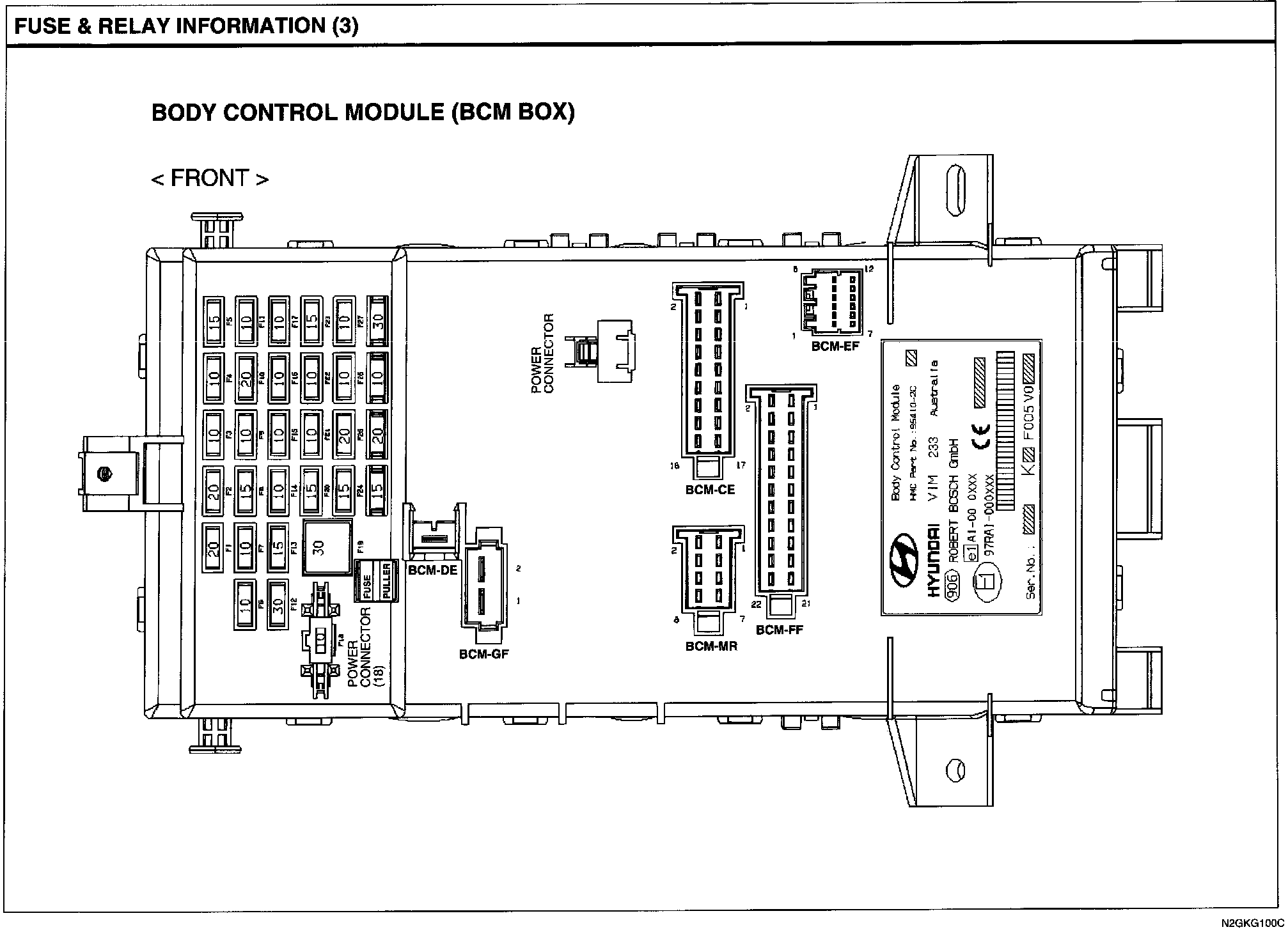

Body Control Module View:

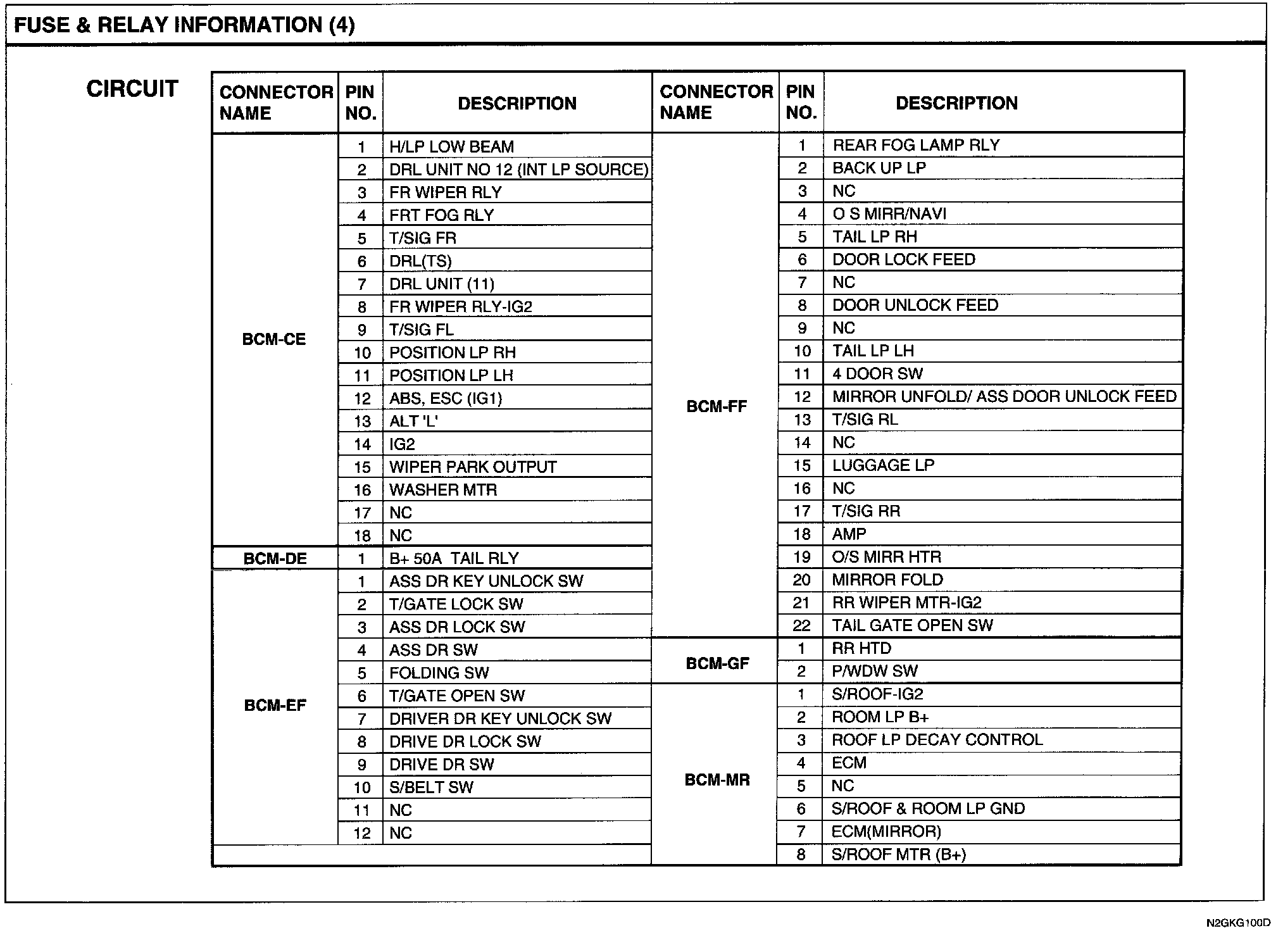

Body Control Module Circuit Details:




Body Control Module View:

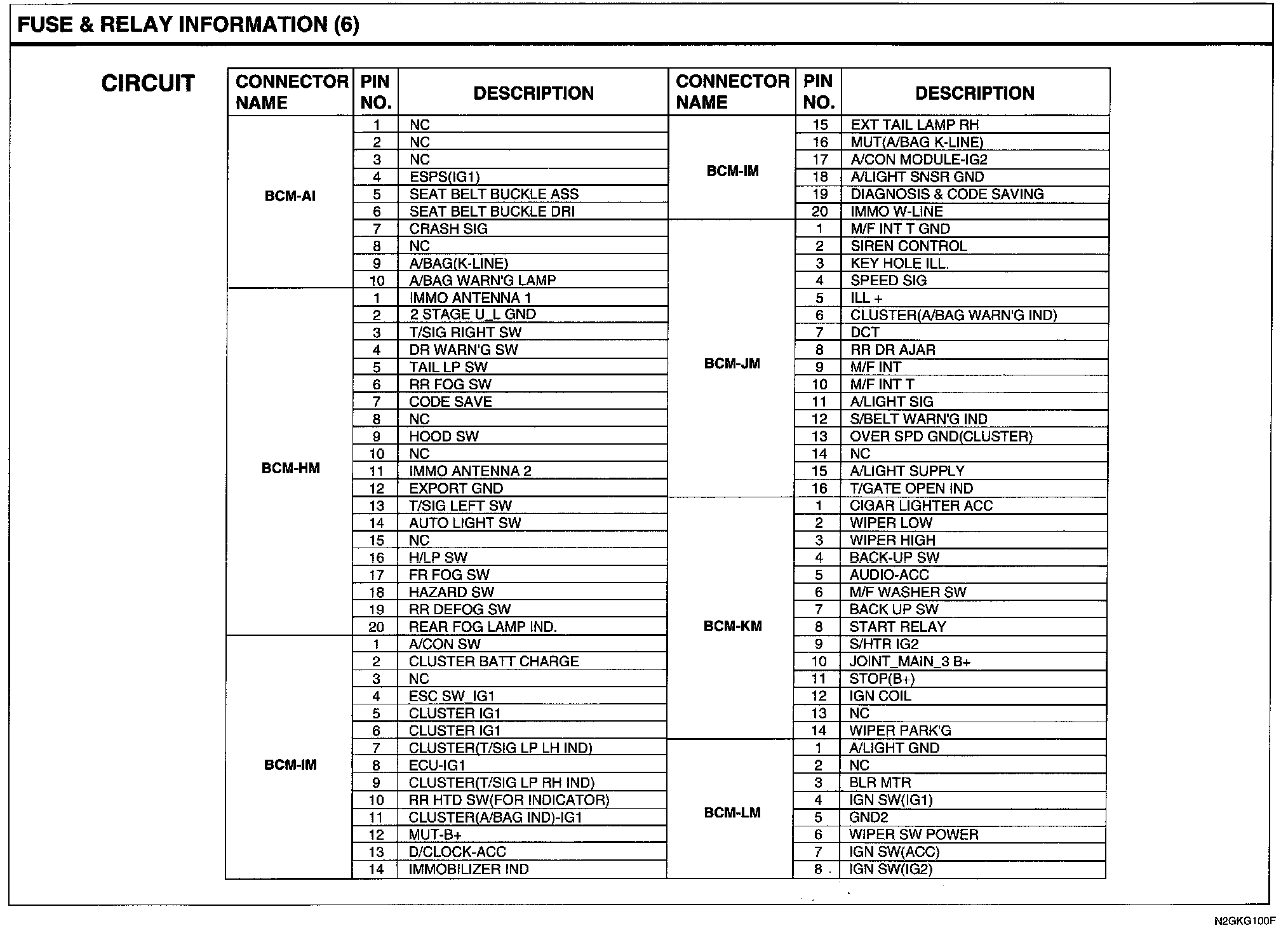

Body Control Module Circuit Details:

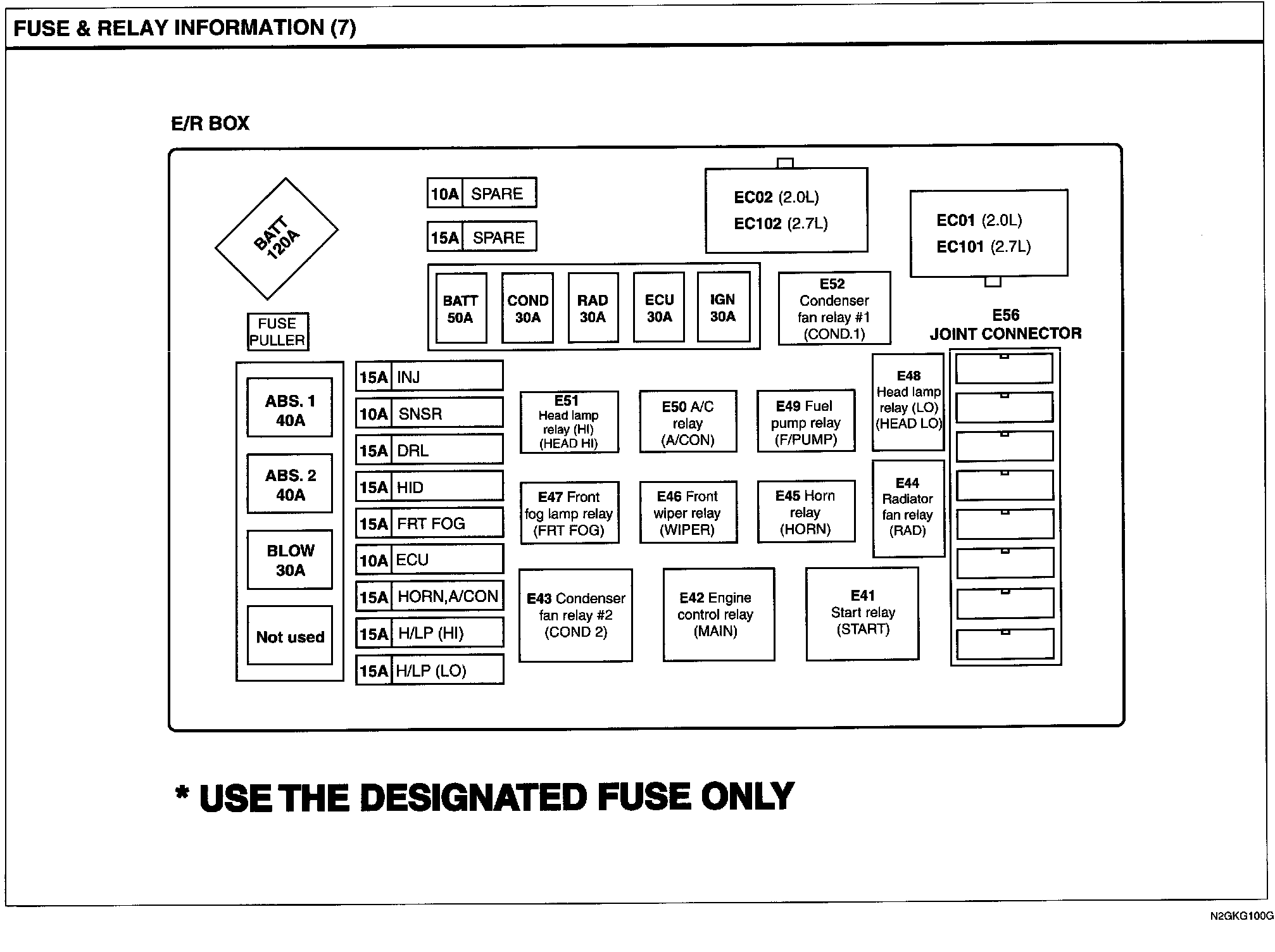

E/R Box View:

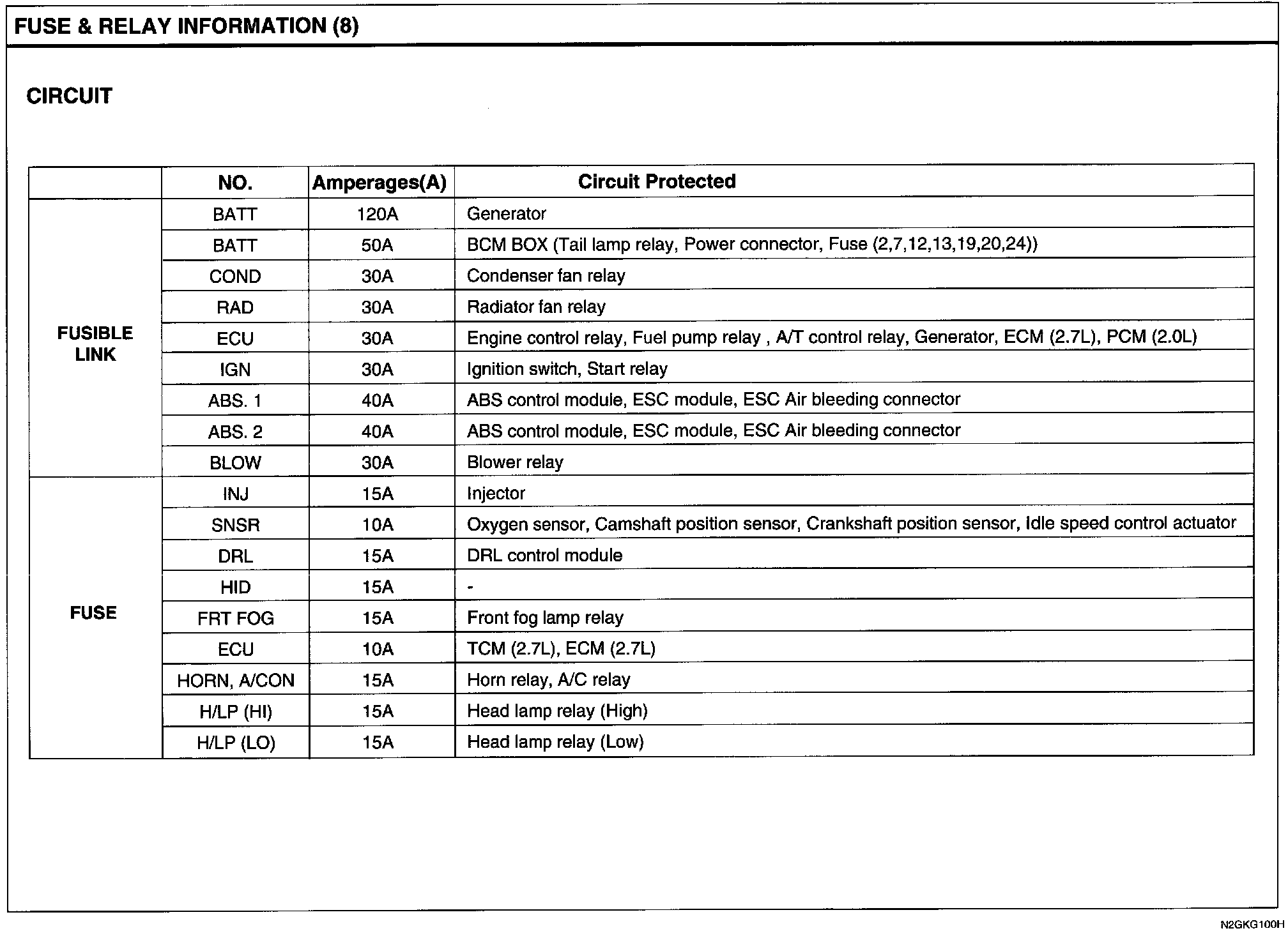

E/R Box Circuit Details:
