Inspection Procedure 9 - Shocks When Changing from "N" to "R", "N" to "D" and Large Time Lag
Inspection Procedure 9 - Shocks When Changing from "N" to "R", "N" to "D" and Large Time Lag
INSPECTION PROCEDURE 9

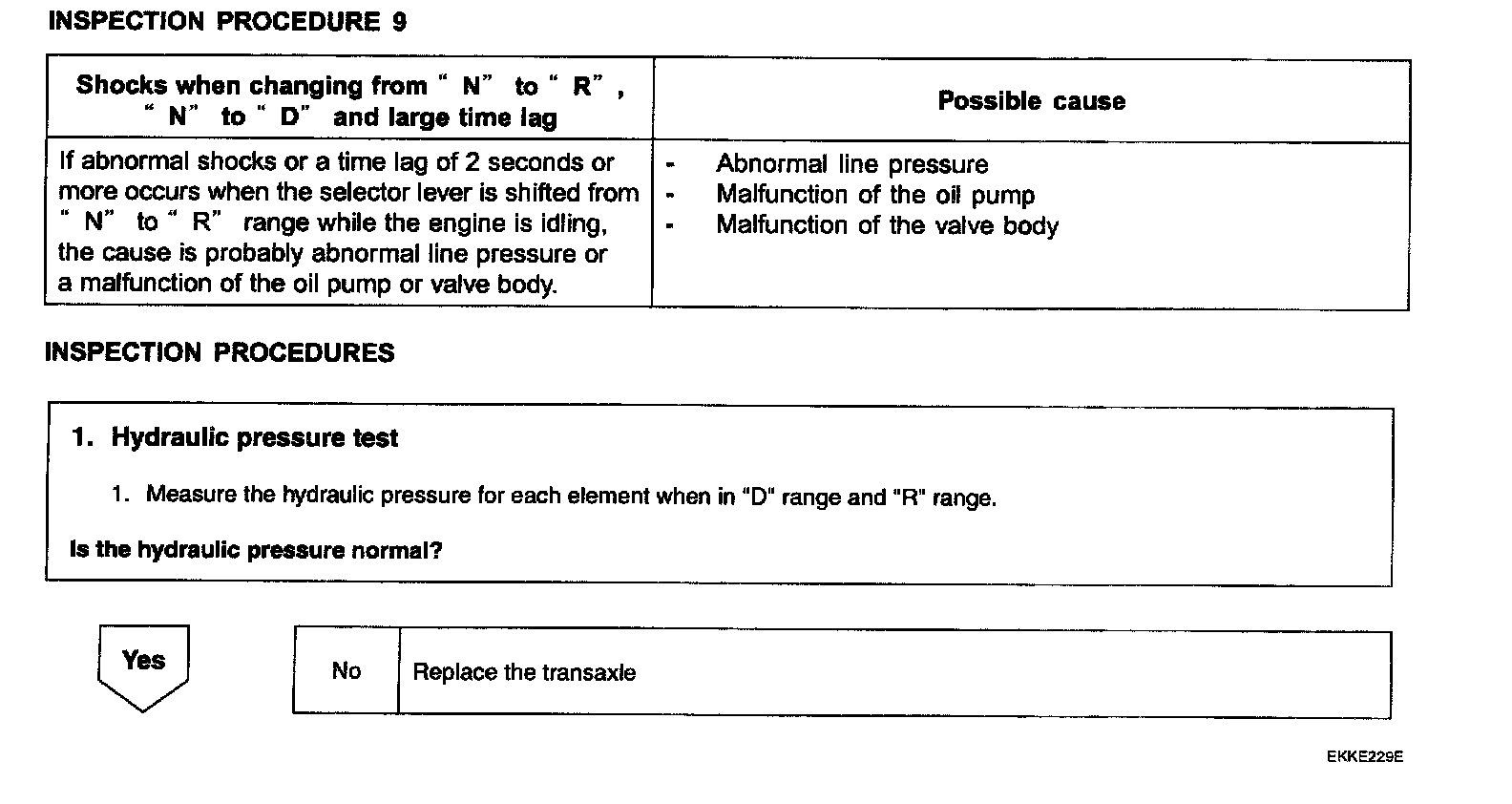

INSPECTION PROCEDURE 9 (PART 1):

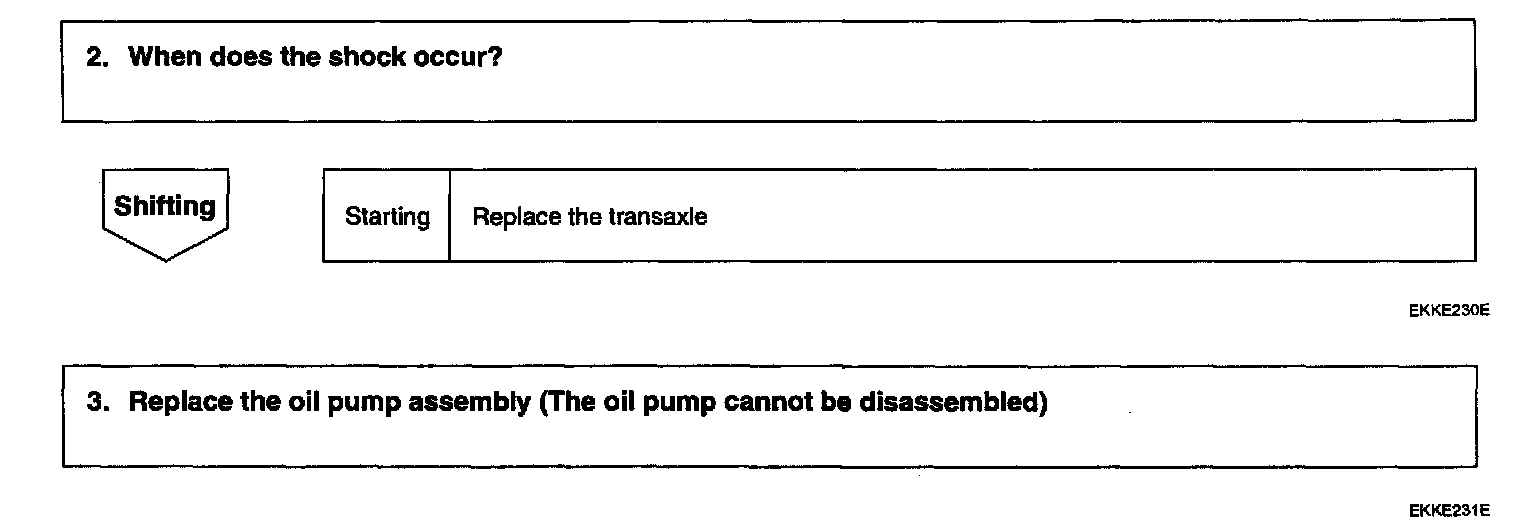

INSPECTION PROCEDURE 9 (PART 2):
