Inspection Procedure 7 - Shock When Changing From "N" to "D" and Large Time Lag
Inspection Procedure 7 - Shock When Changing From "N" to "D" and Large Time Lag
INSPECTION PROCEDURE 7

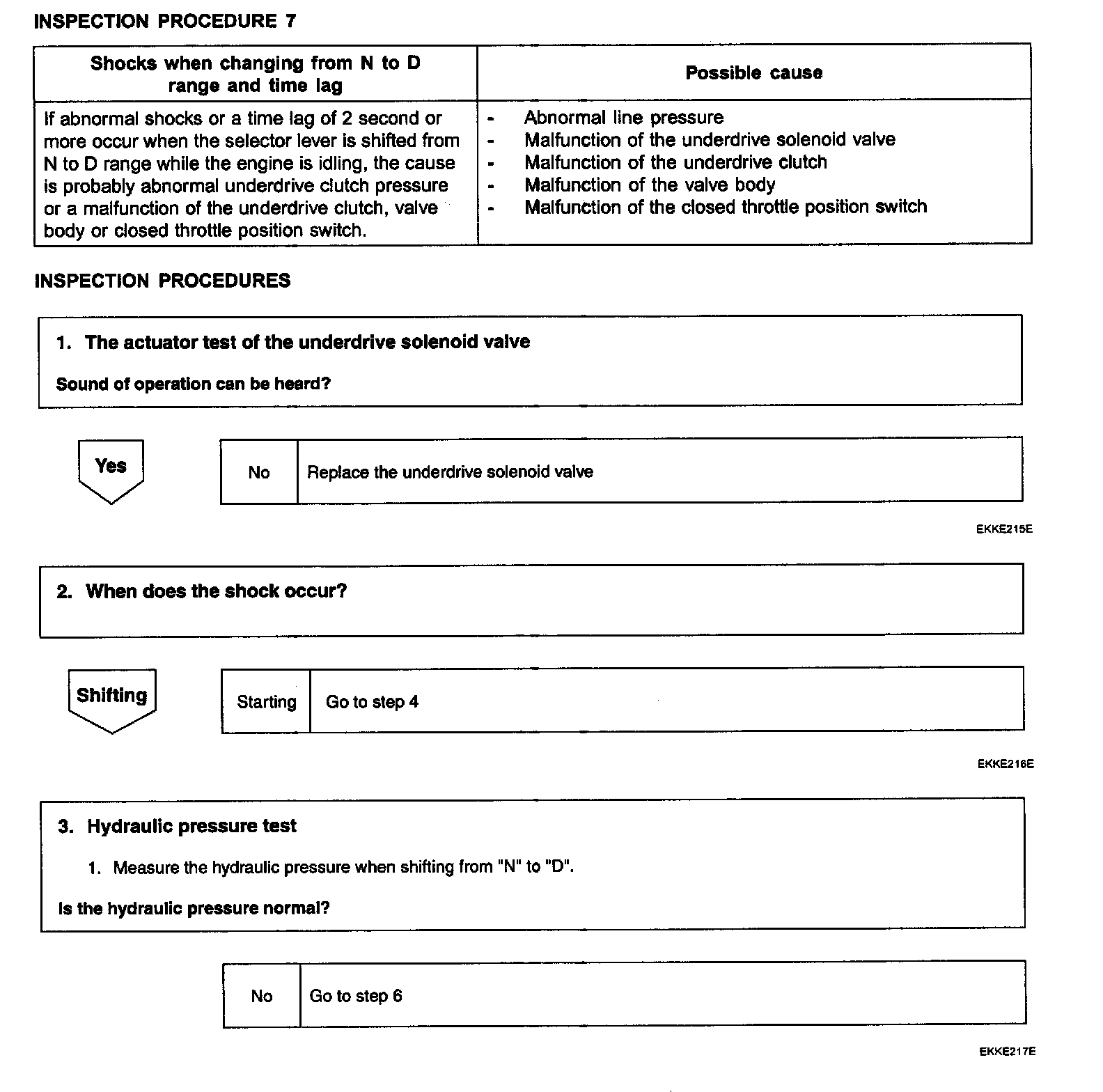

INSPECTION PROCEDURE 7 (PART 1):

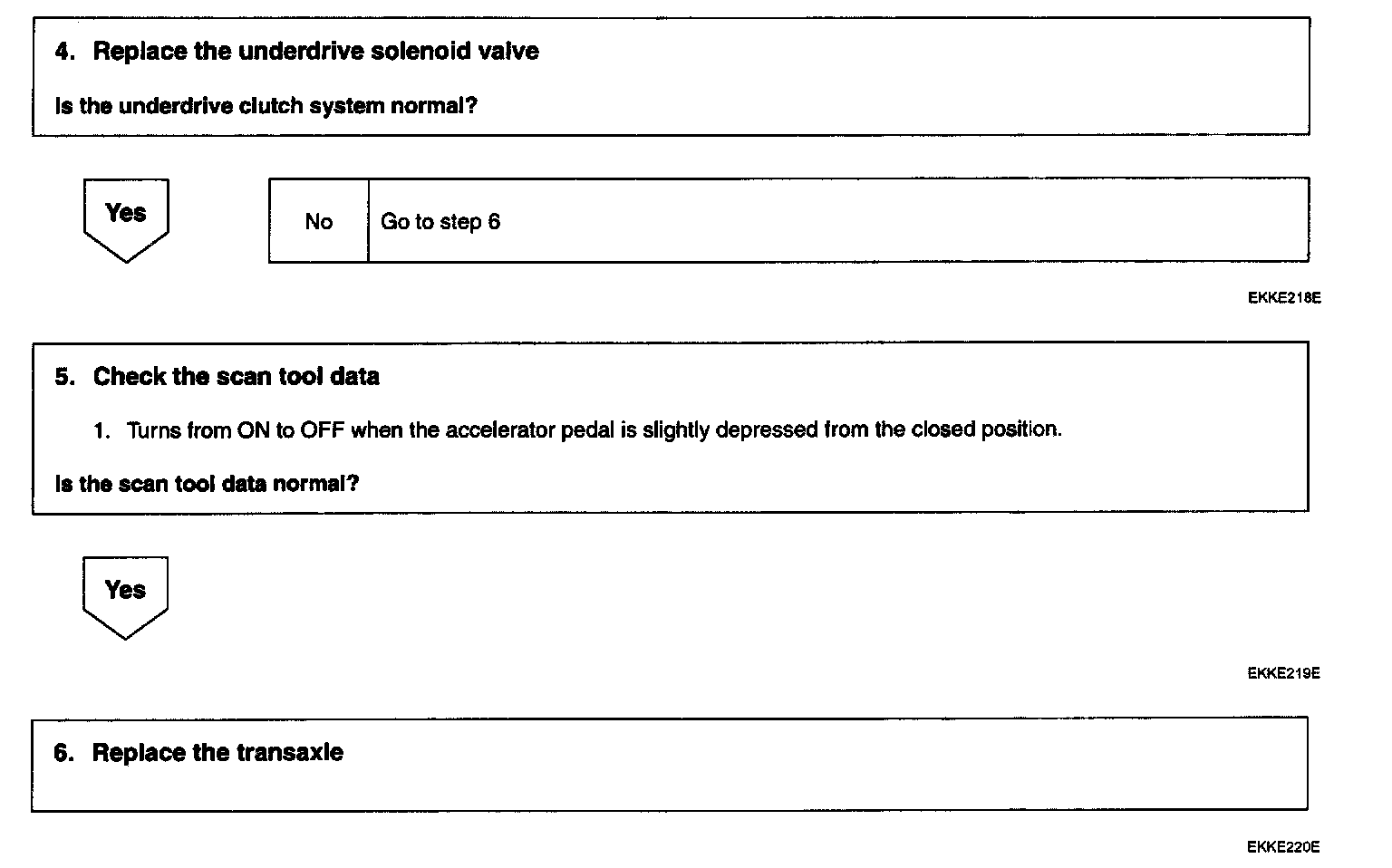

INSPECTION PROCEDURE 7 (PART 2):
