Inspection Procedure 13 - No Diagnosis Trouble Codes (Does Not Shift)
Inspection Procedure 13 - No Diagnosis Trouble Codes (Does Not Shift)

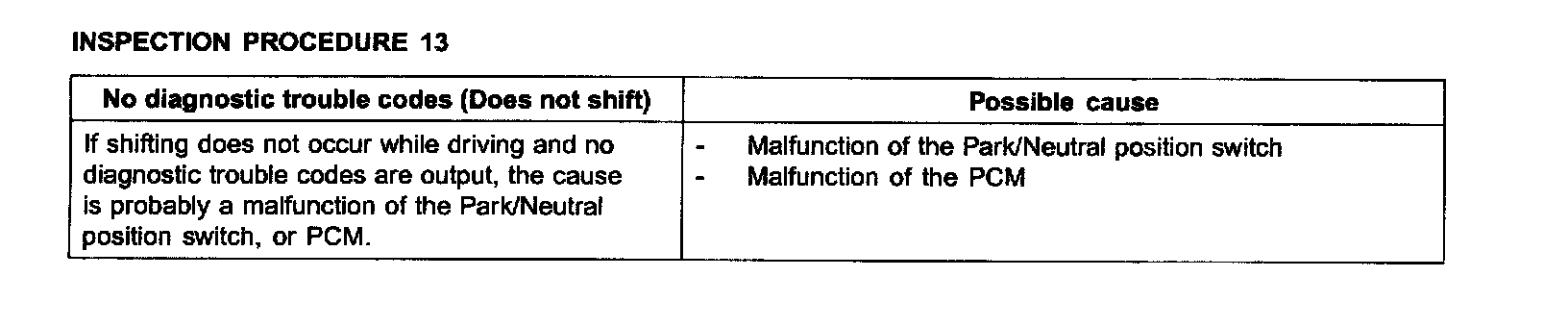

INSPECTION PROCEDURE 13

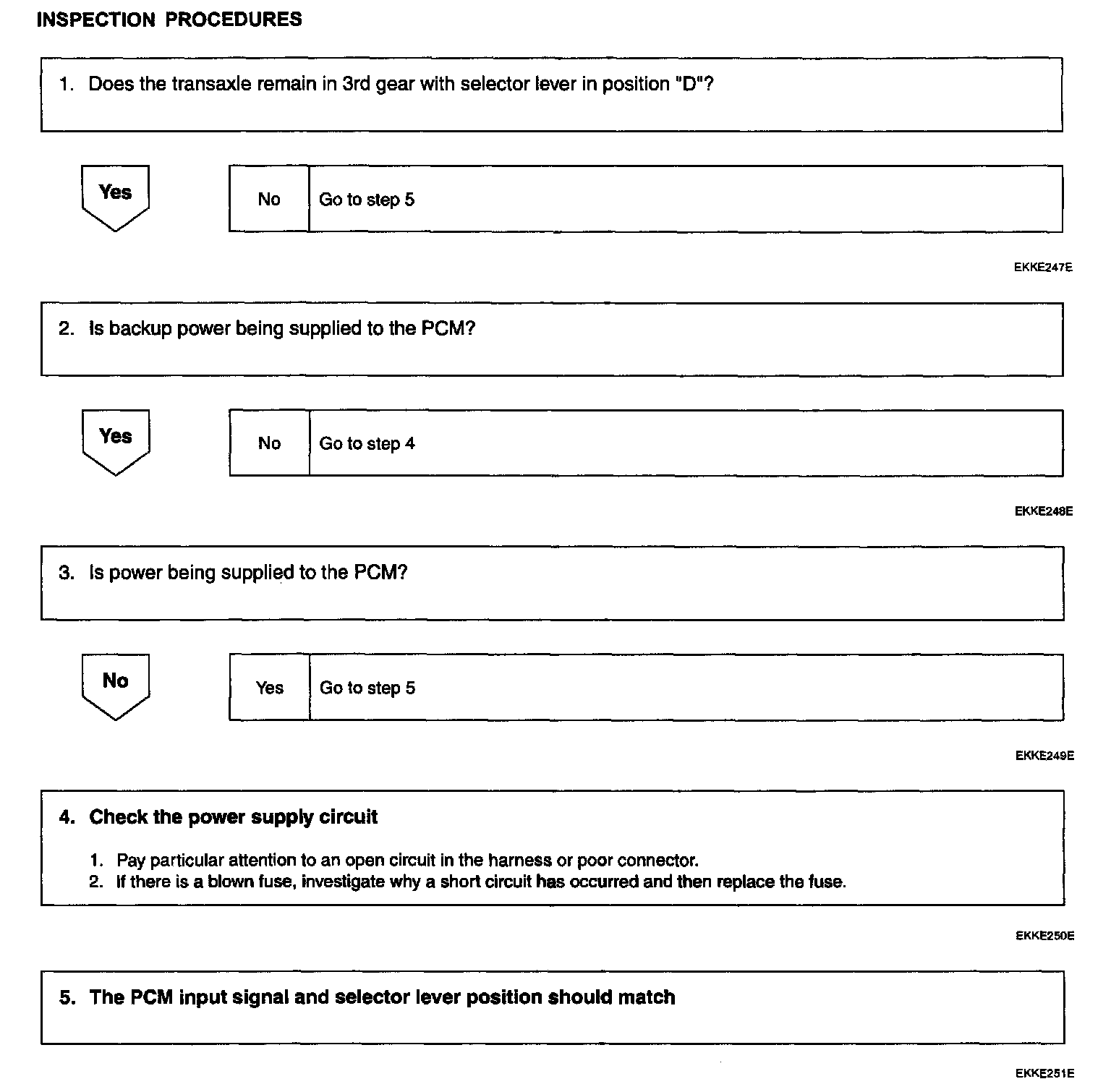

INSPECTION PROCEDURE 13 (PART 1):
INSPECTION PROCEDURE 13 (PART 2):
