Inspection Procedure 11 - All Points (Displaced Shifting Points)
Inspection Procedure 11 - All Points (Displaced Shifting Points)
INSPECTION PROCEDURE 11

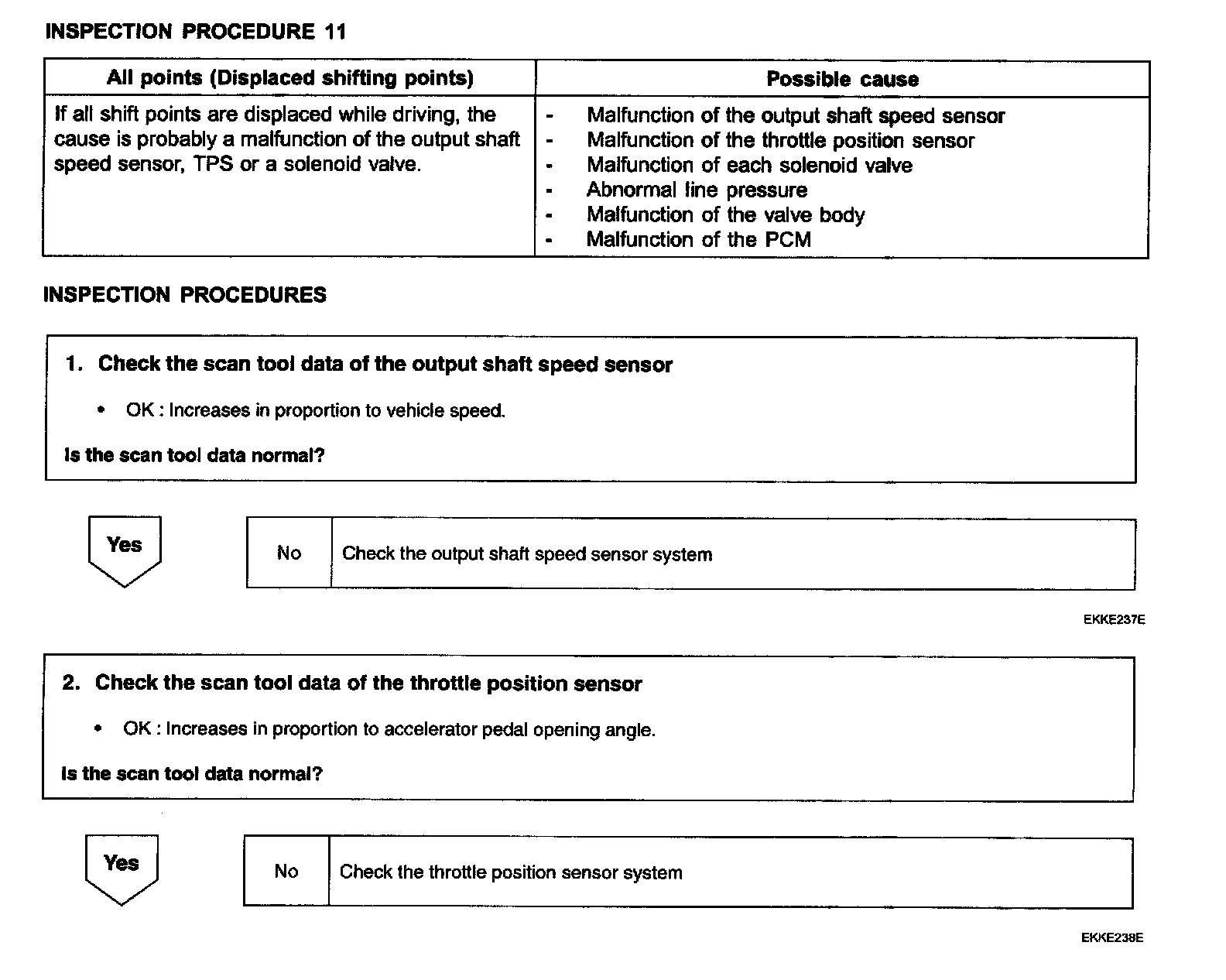

INSPECTION PROCEDURE 11 (PART 1):

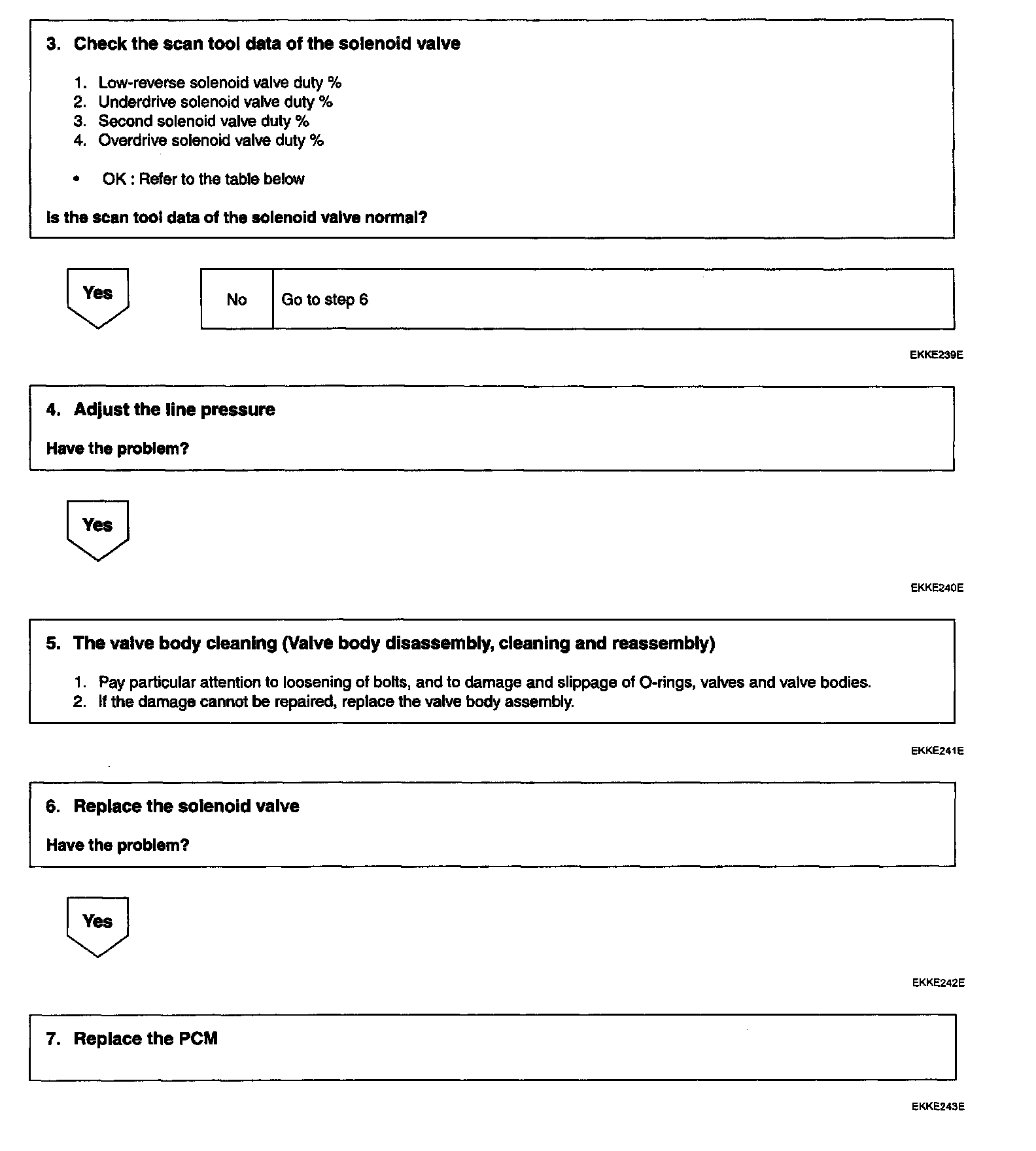

INSPECTION PROCEDURE 11 (PART 2):
