Inspection Procedure 10 - Shocks and Running Up

INSPECTION PROCEDURE 10

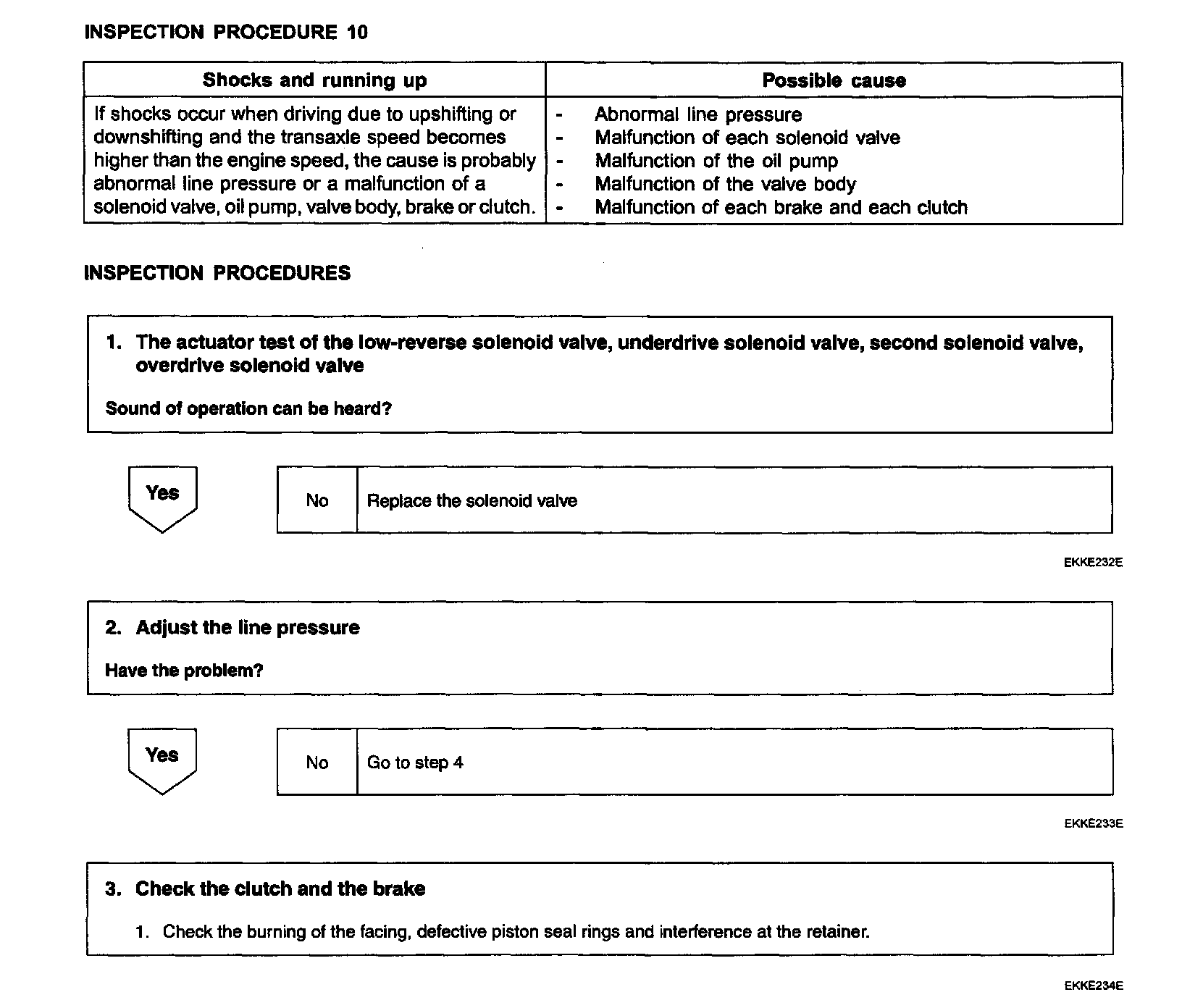

INSPECTION PROCEDURE 10 (PART 1):

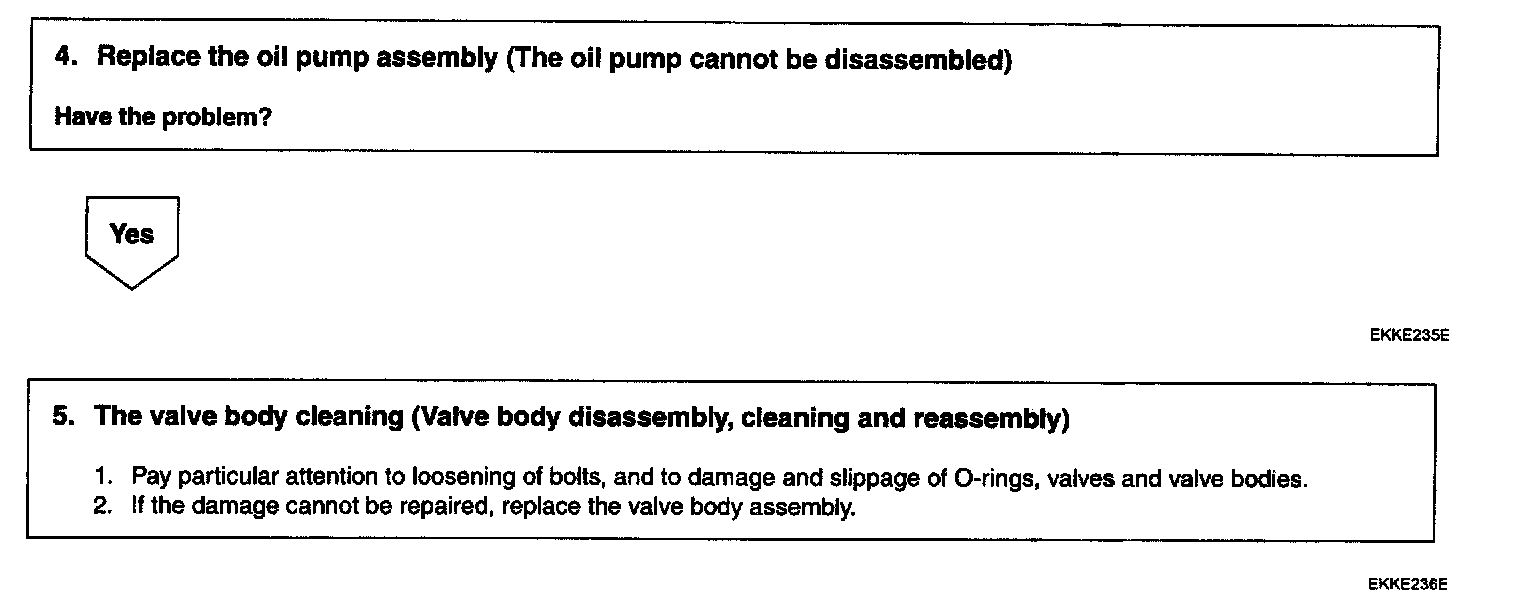

INSPECTION PROCEDURE 10 (PART 2):
