Inspection Procedure 1 - Communication With Scan Tool
Inspection Procedure 1 - Communication With Scan Tool
INSPECTION PROCEDURE 1

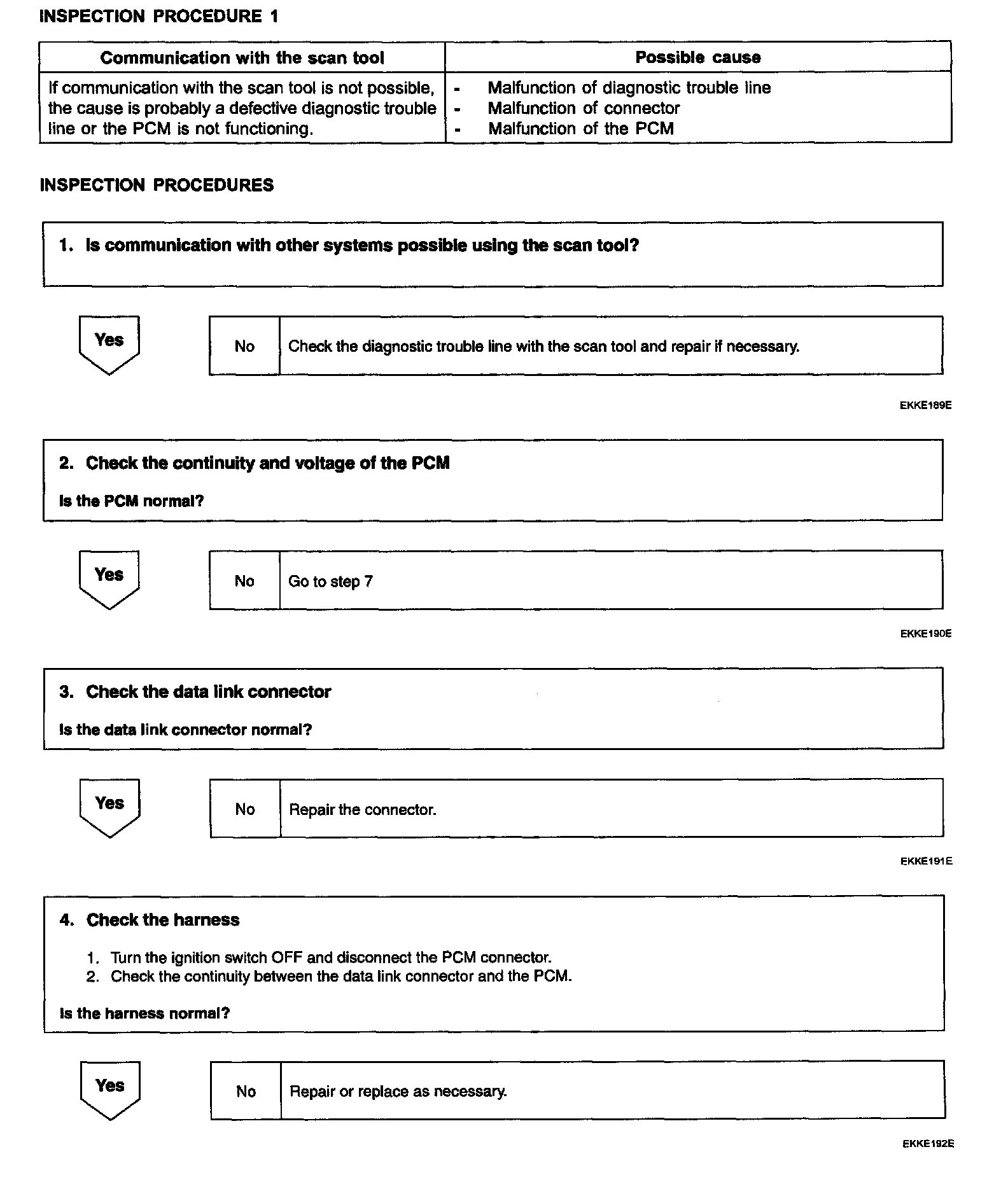

INSPECTION PROCEDURE 1 (PART 1):

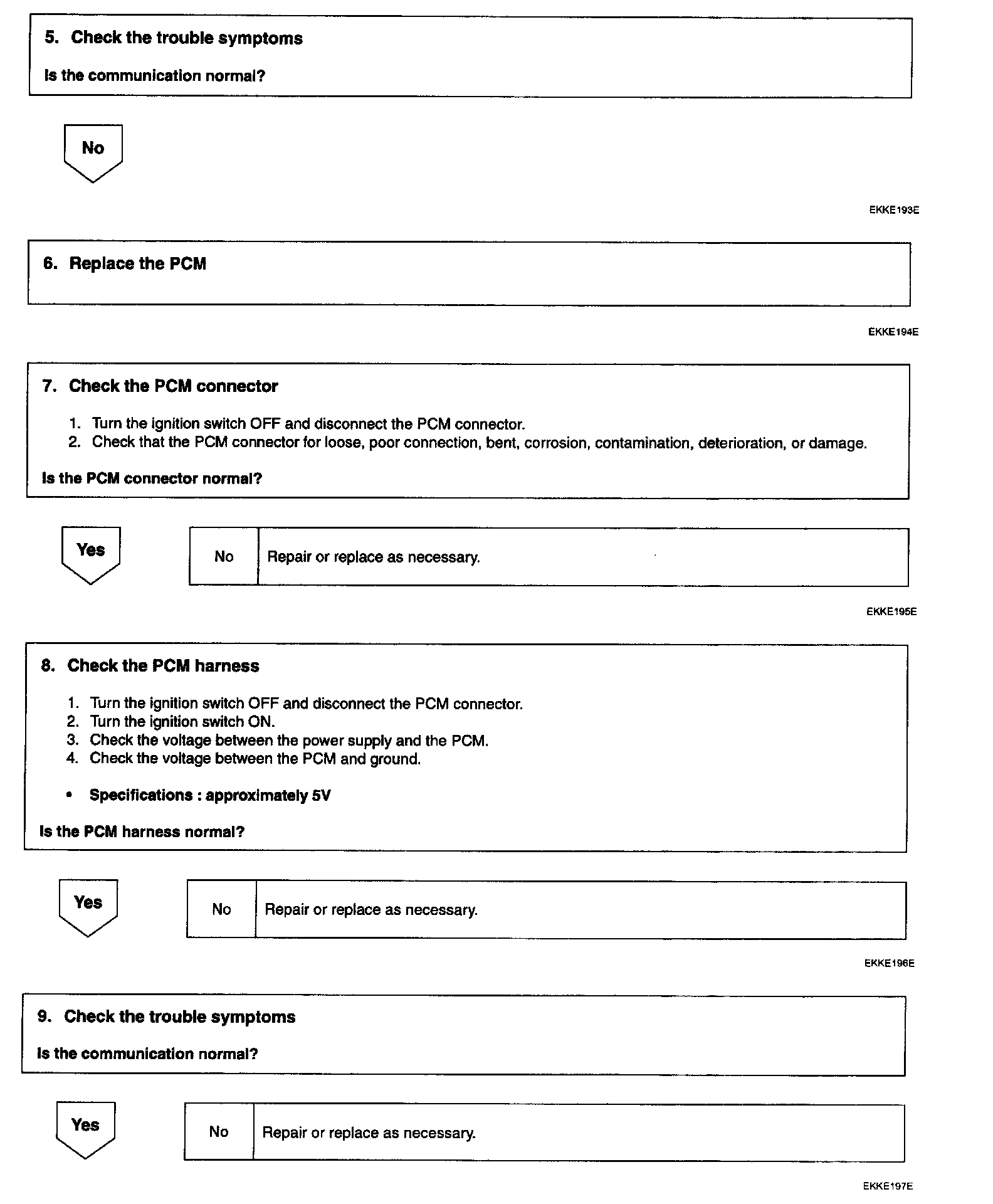

INSPECTION PROCEDURE 1 (PART 2):

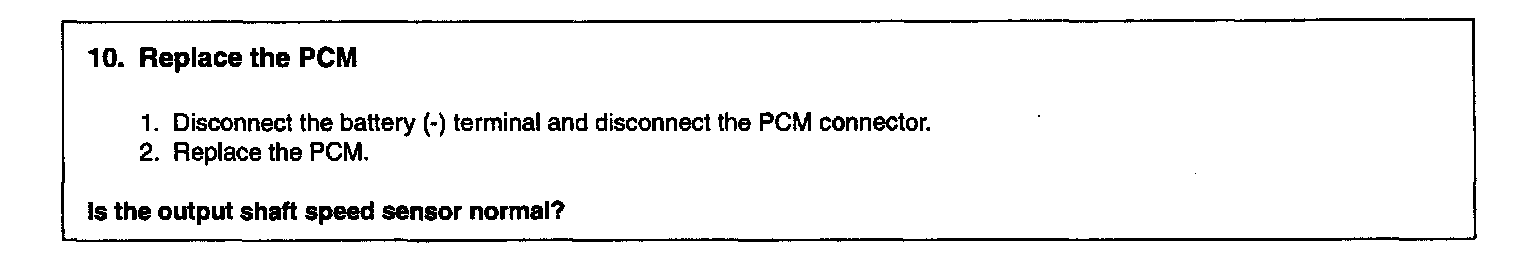

INSPECTION PROCEDURE 1 (PART 3):
