Home >> Hyundai >> 2006 >> Elantra L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Door Switch >> Testing and Inspection >> Door Switch

Door Switch

DOOR SWITCH

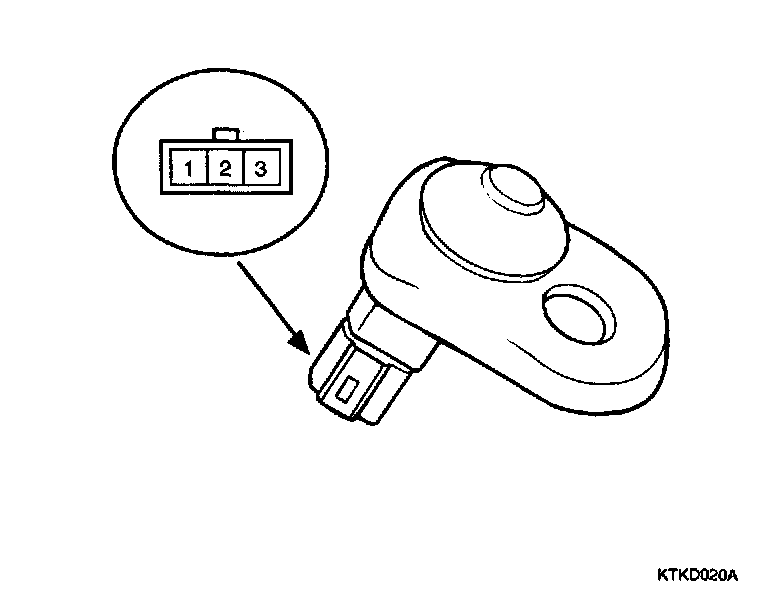

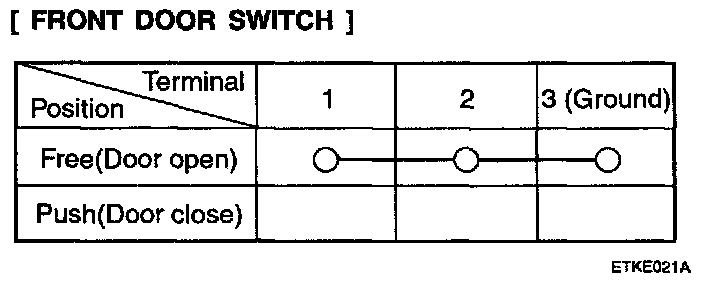

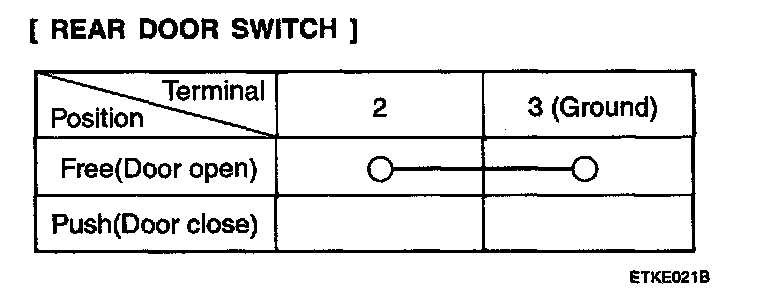

Remove the door switch and check for continuity between the terminals.
