Home >> Hyundai >> 2006 >> Elantra L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Solar Sensor >> Testing and Inspection

Solar Sensor: Testing and Inspection

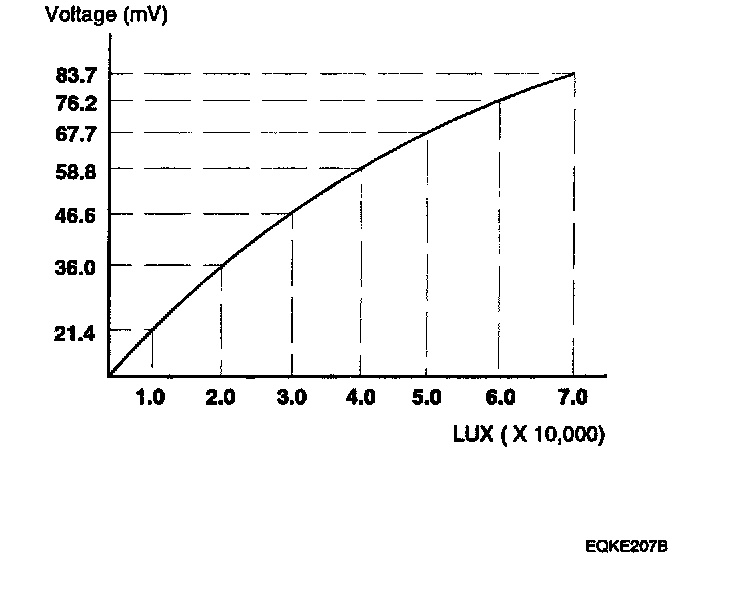

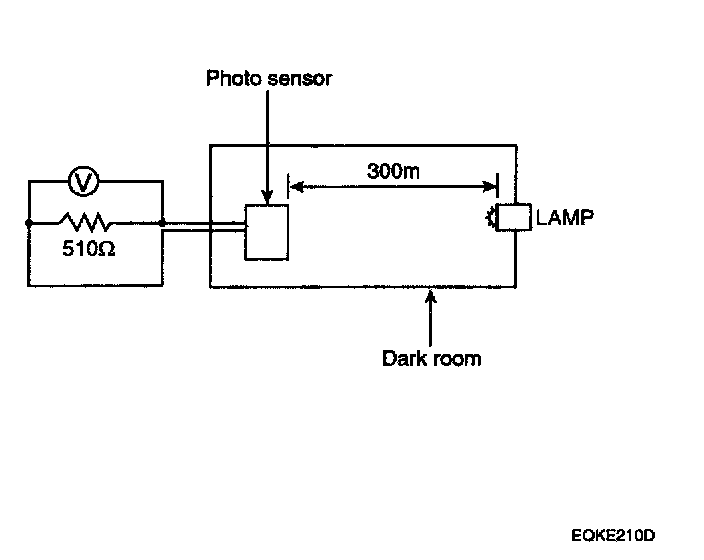

Install the lamp and the photo sensor in the dark room. Then measure the output current.
