Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

INSPECTION

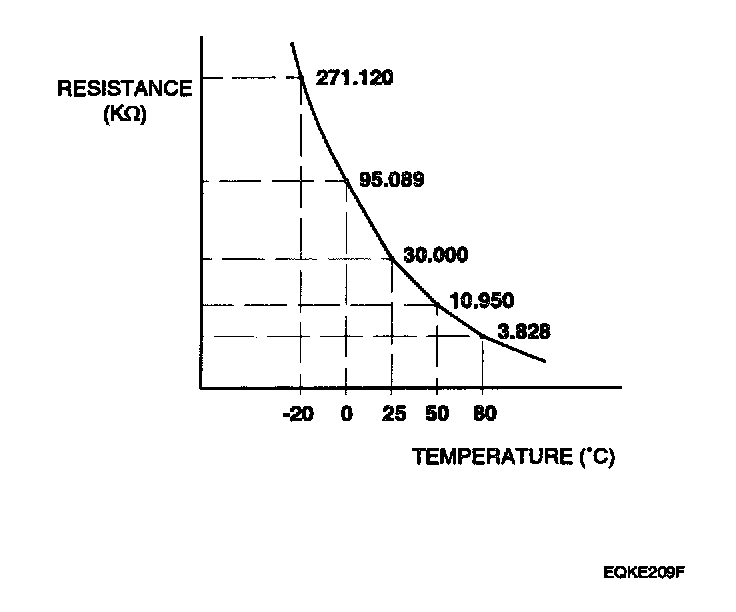

Resistance - Temp Characteristic Table:

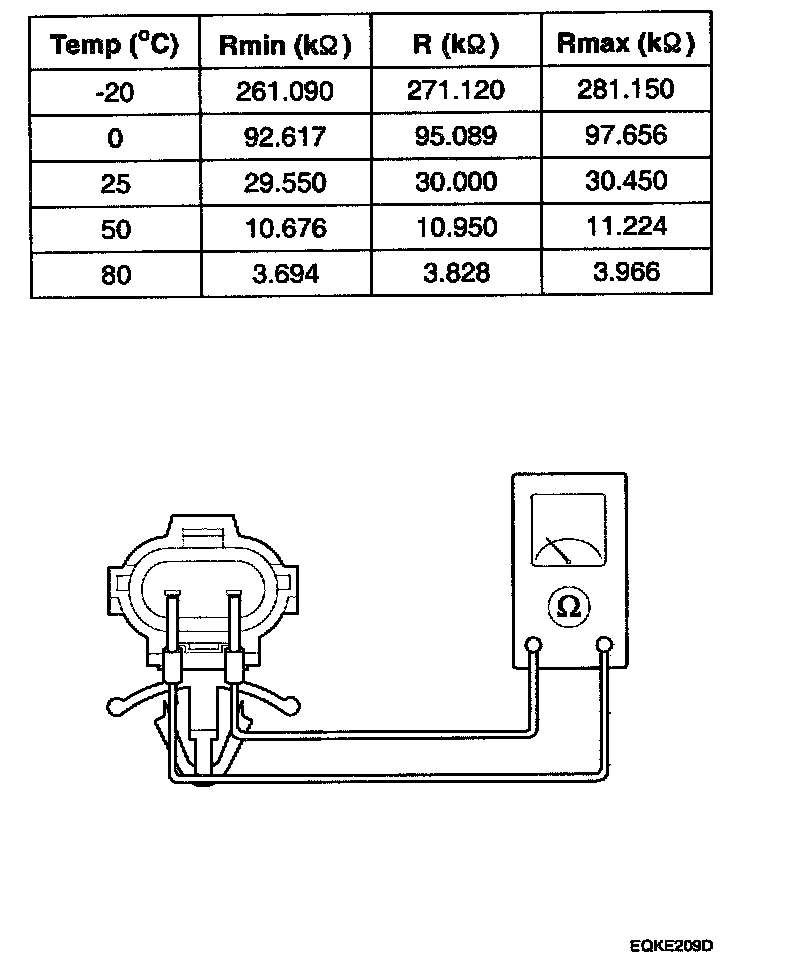

Characterestics:




Measure the resistance.
