Ignition Coil: Service and Repair

IGNITION COIL
1. Remove the engine cover.
2. Disconnect the spark plug cable and connector.

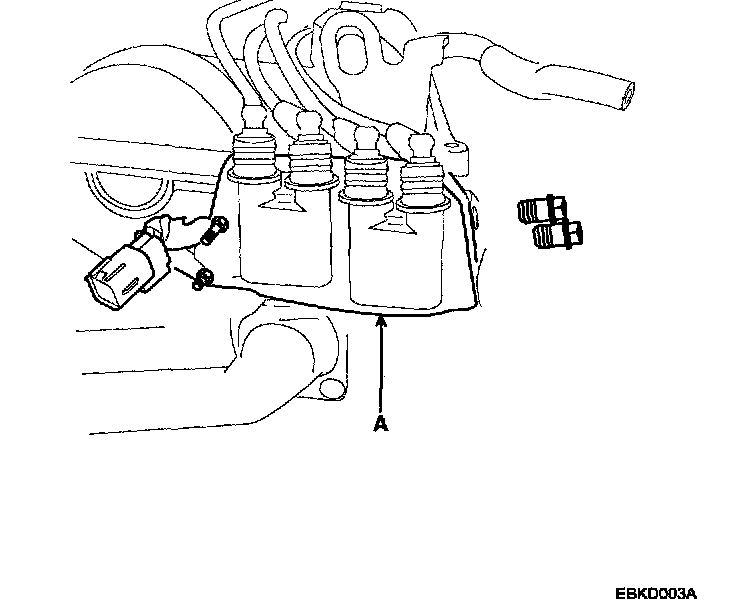

3. Remove the ignition coil.




4. Installation is the reverse of removal.
