Communication With Hi-Scan (Pro) Is Not Possible (Communication With Any System Is Not Possible)
Communication With Hi-Scan (Pro) Is Not Possible (Communication With Any System Is Not Possible)

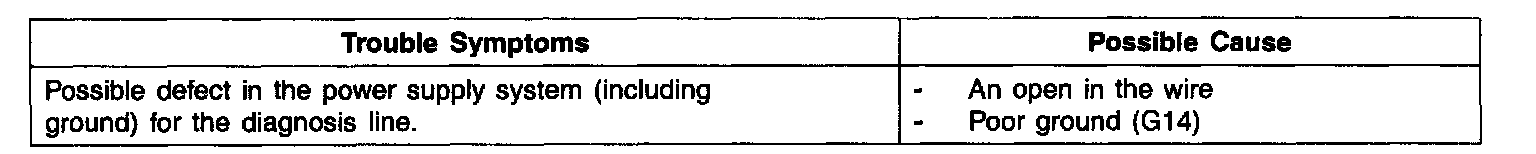

DETECTING CONDITION
INSPECTION PROCEDURES

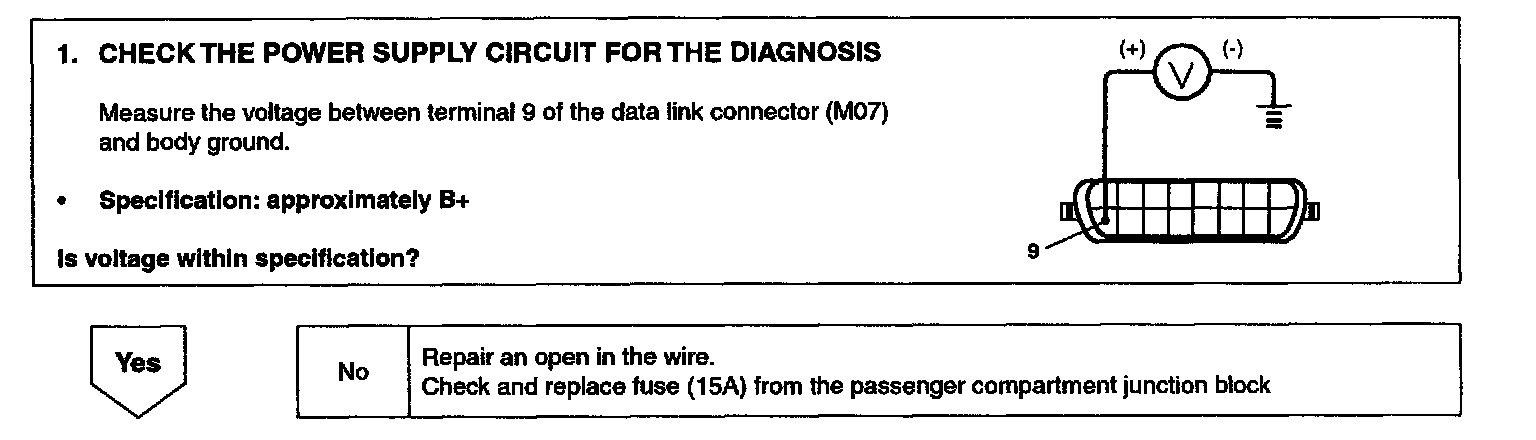

Test Step 1:

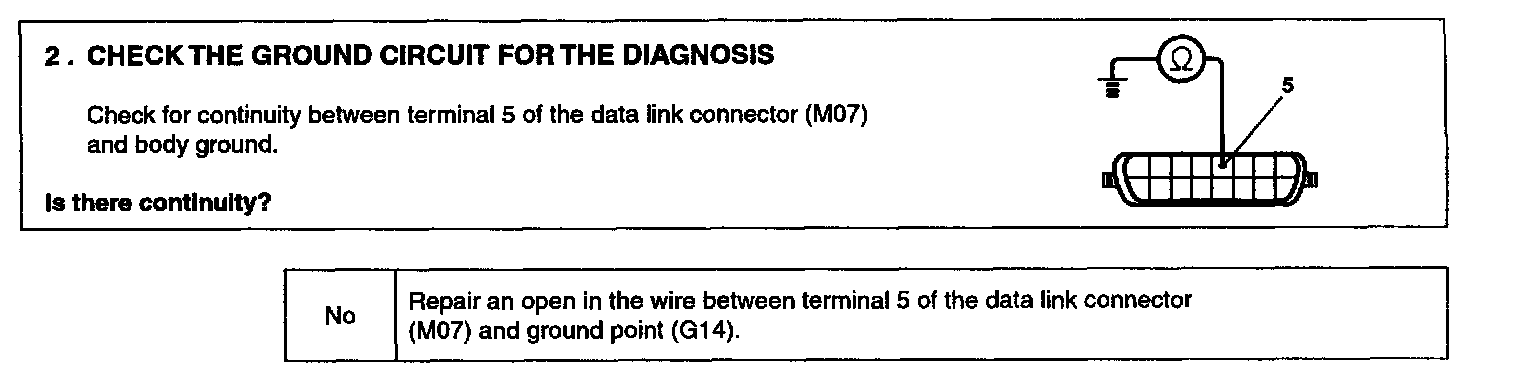

Test Step 2:
