Power Window Switch Replacement

POWER WINDOW SWITCH REPLACEMENT

NOTE: Take care not to damage the door trim.

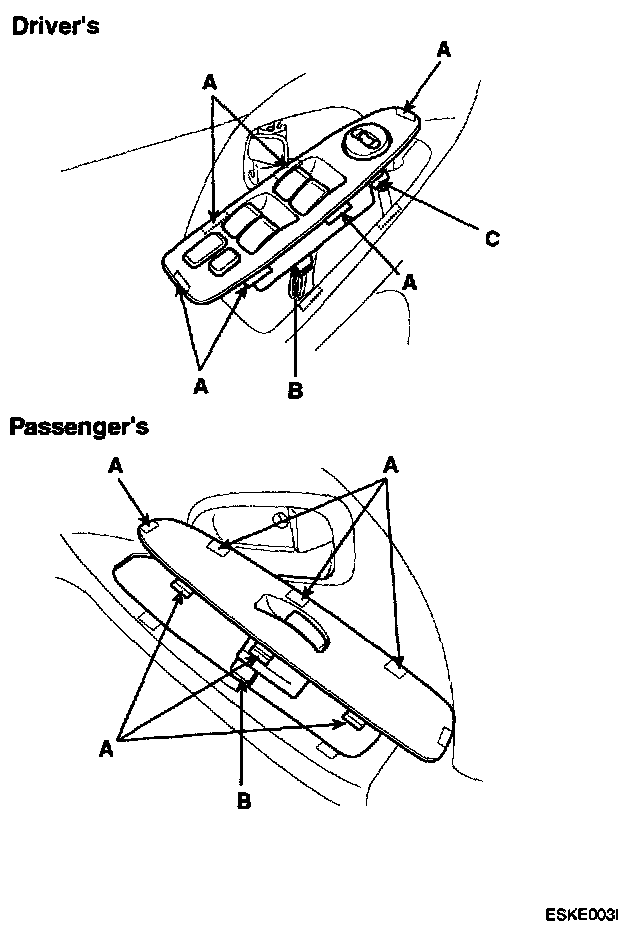

Release the hooks (A), disconnect the power window switch connector (B), and the power mirror connector (C).
