Initial Inspection and Diagnostic Overview

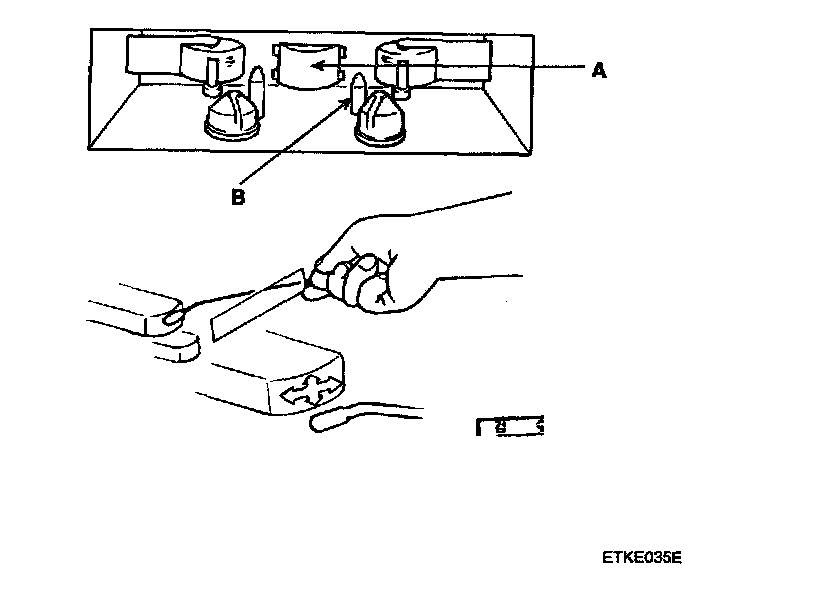

TAPE HEAD AND CAPSTAN CLEANING
1. To obtain optimum performance, clean the head (A), and capstan(B) as often as necessary, depending on frequency of use and tape cleanliness.




2. To clean the tape head and capstan, use a cotton swab dipped in ordinary rubbing alcohol. Wipe the head (A) and capstan (B).
