Tightening Torque

TIGHTENING TORQUE

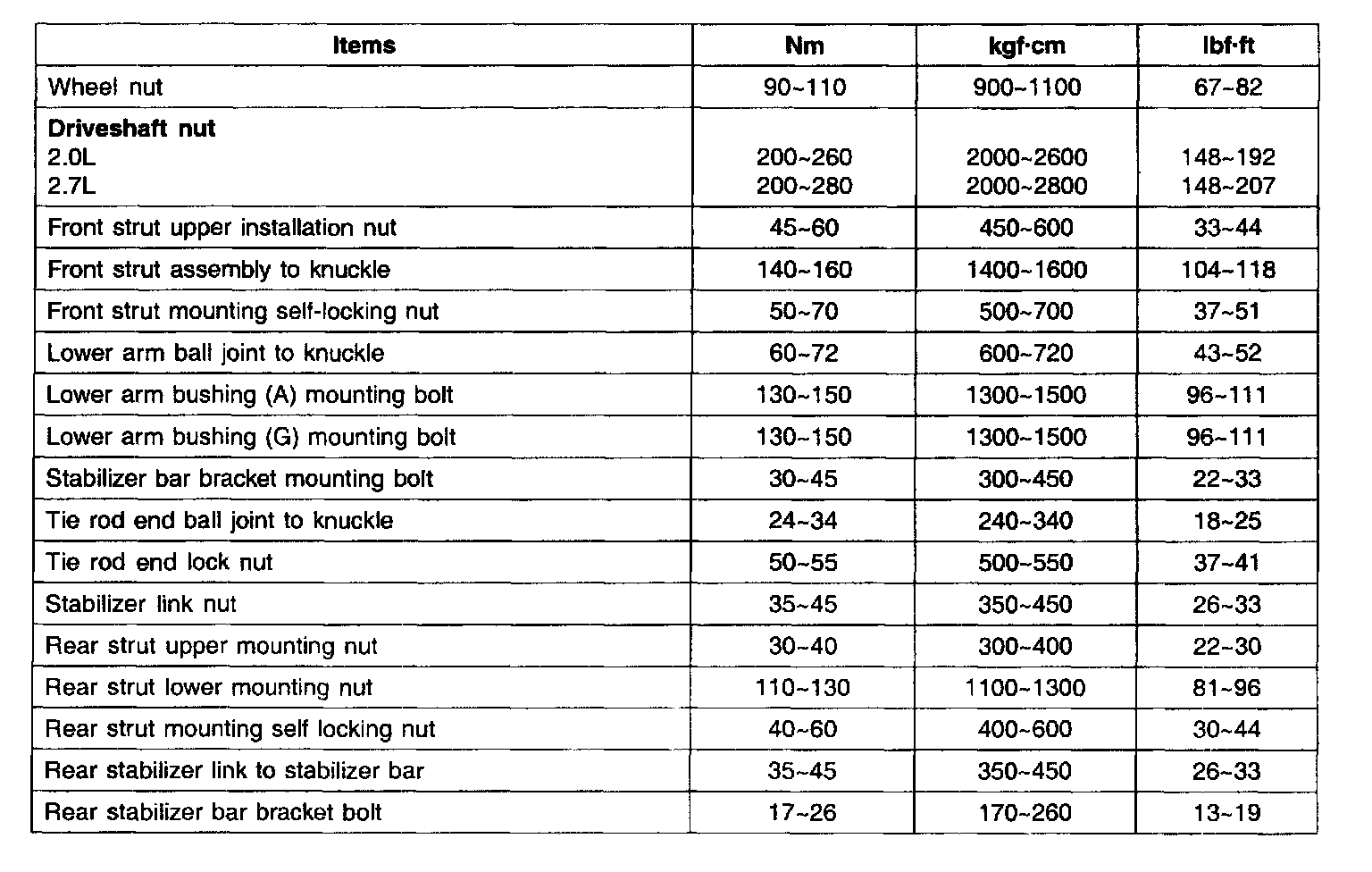

Part 1:

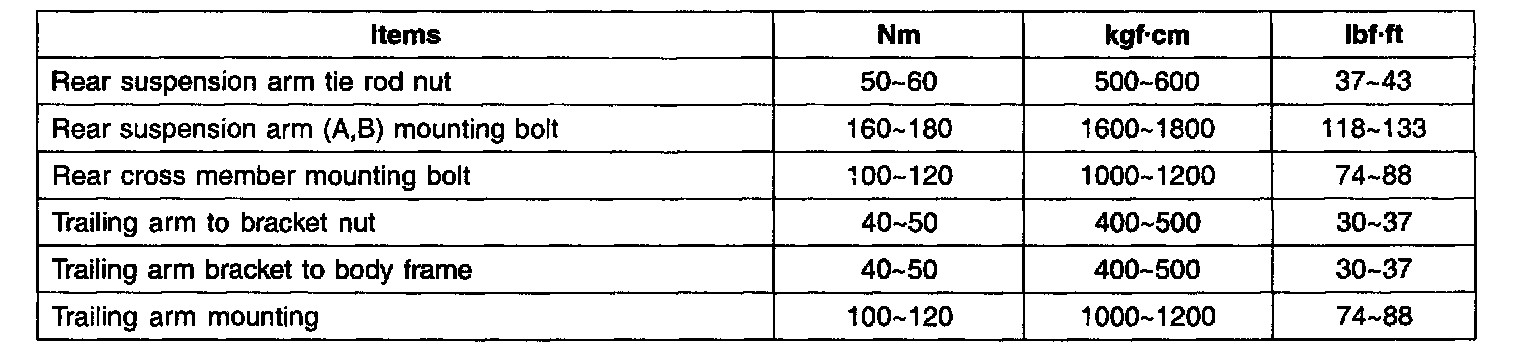

Part 2:





CAUTION: Replace the self-locking nuts with new ones after removal
