Fuel Filler Cap: Description and Operation
FUEL FILLER CAPDESCRIPTION
Fuel Filler Cap:

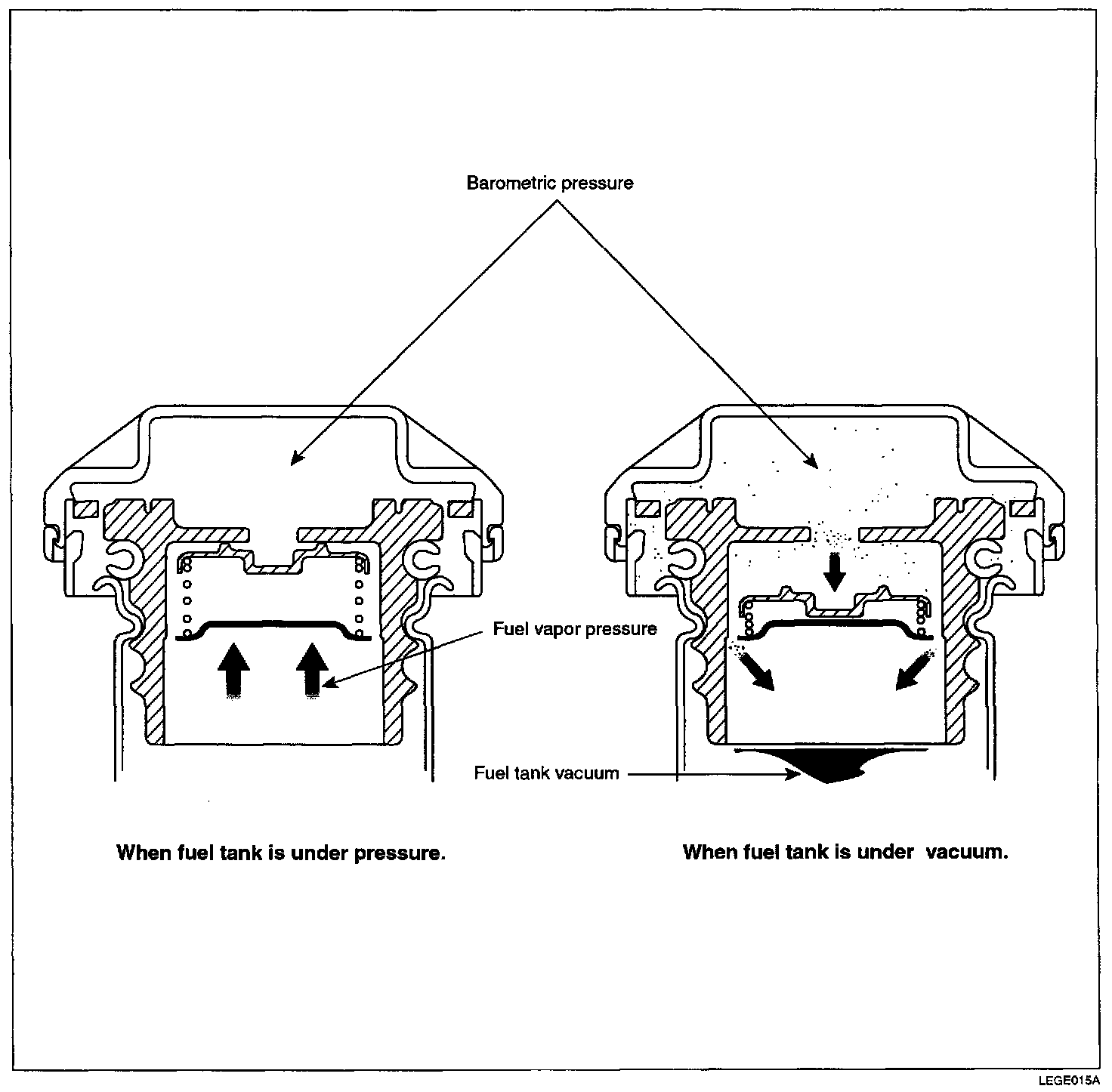

A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which would seal the fuel filler. After the gasket on the fuel filler cap and the tiller neck flange contact each other, the retchet produces a loud clicking noise indicating the seal has been set.
