Hyundai
>>
2005
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

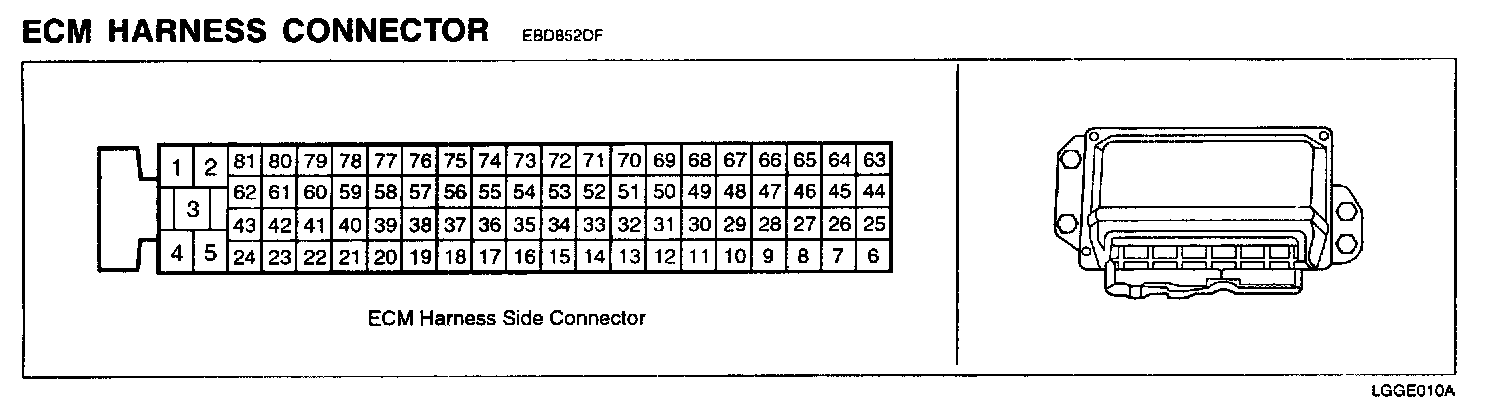

ECM HARNESS CONNECTOR
Connector View:
ECM TERMINAL FUNCTION

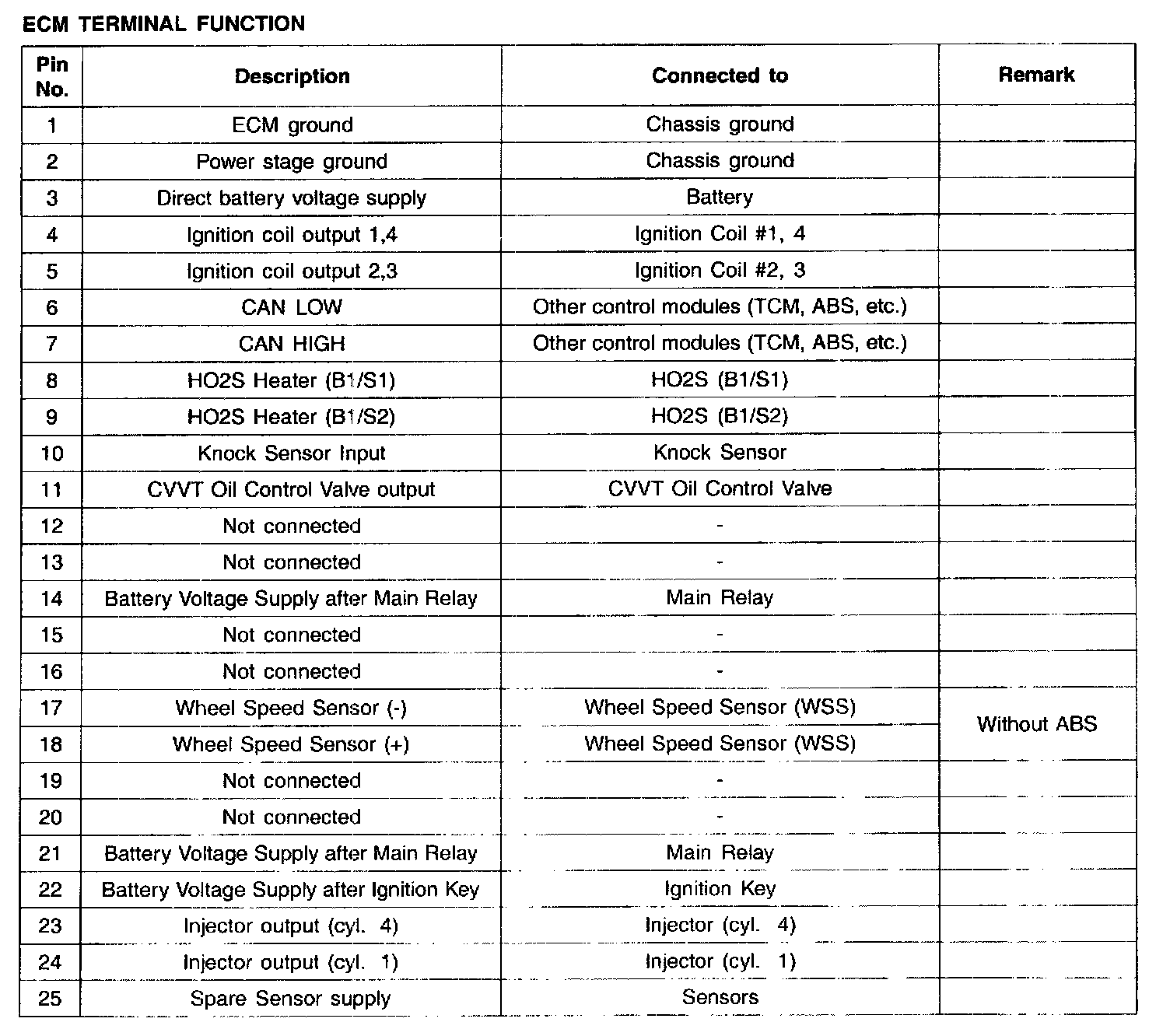

Pin No. 1-25:

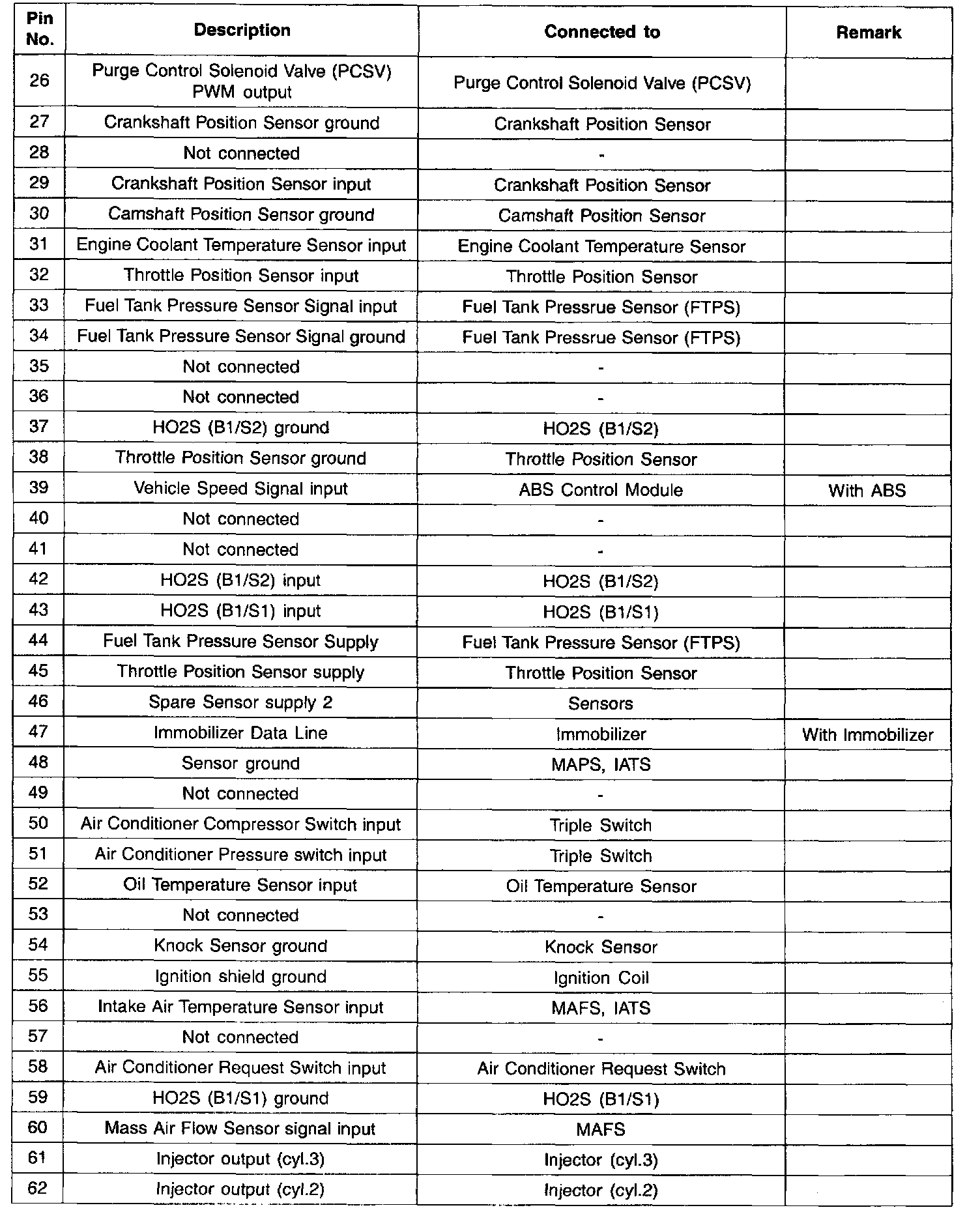

Pin No. 26-62:

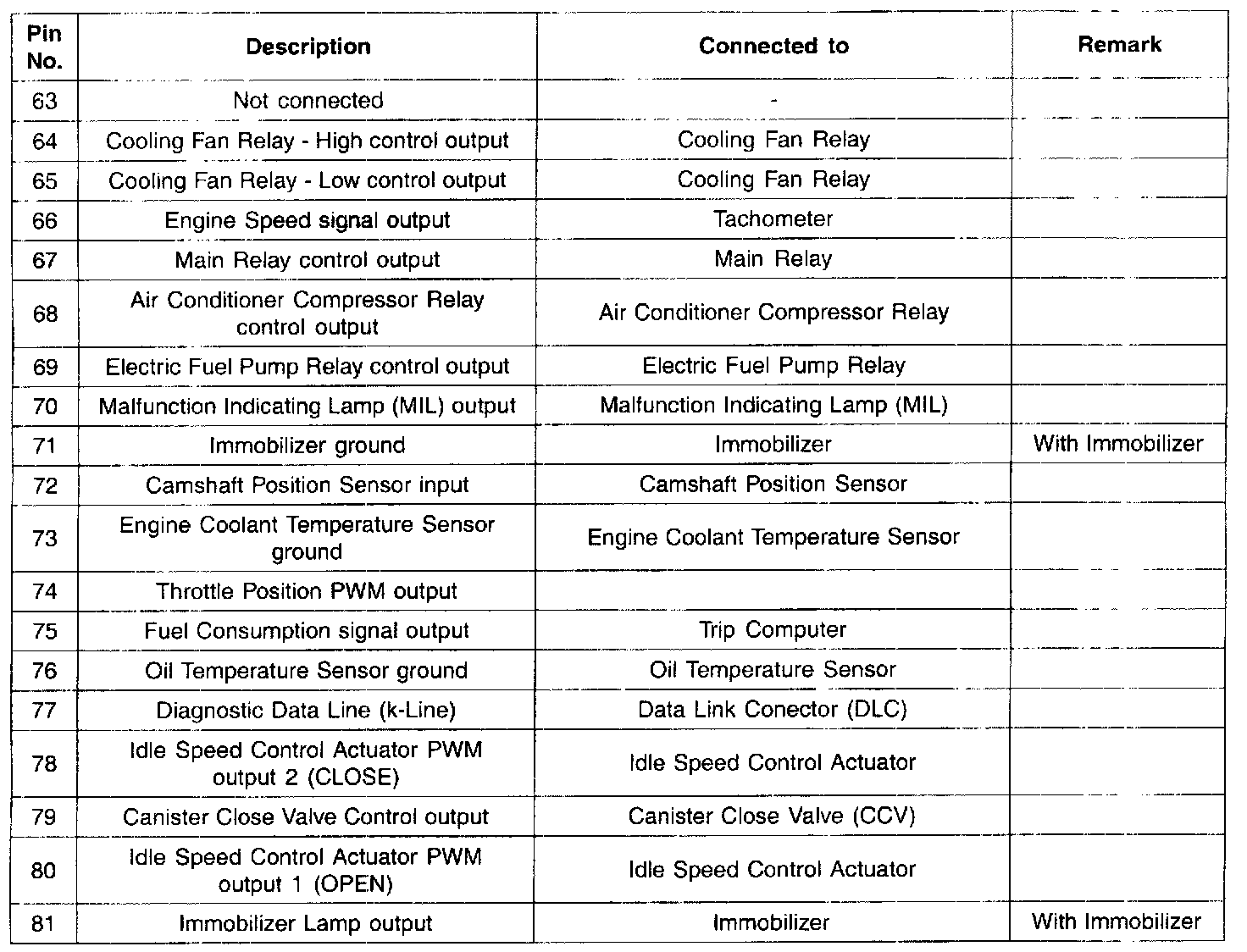

Pin No. 63-81:
